DJI O4 PRO Air Unit w/ Camera (Reserve Now)

Stock Updates

2025.10.23

We're actively working to get all reservations out as soon as possible! For now, we've stopped reservations until stock catches up further.
Bear with us as we are ALL at the mercy of DJI's manufacturing and distribution timelines.

2025.10.22
HIGH DEMAND ITEM. We're awaiting all reservations to date to arrive to us from our order. Please be patient with us as we await the arrival of our remaining units.

2025.10.21
We're awaiting our agreed allocations. We're sorry for any delays here, please be patient as we begin shipping reservation orders as we're still shorted significantly than the amount we requested allocation for.

Overview

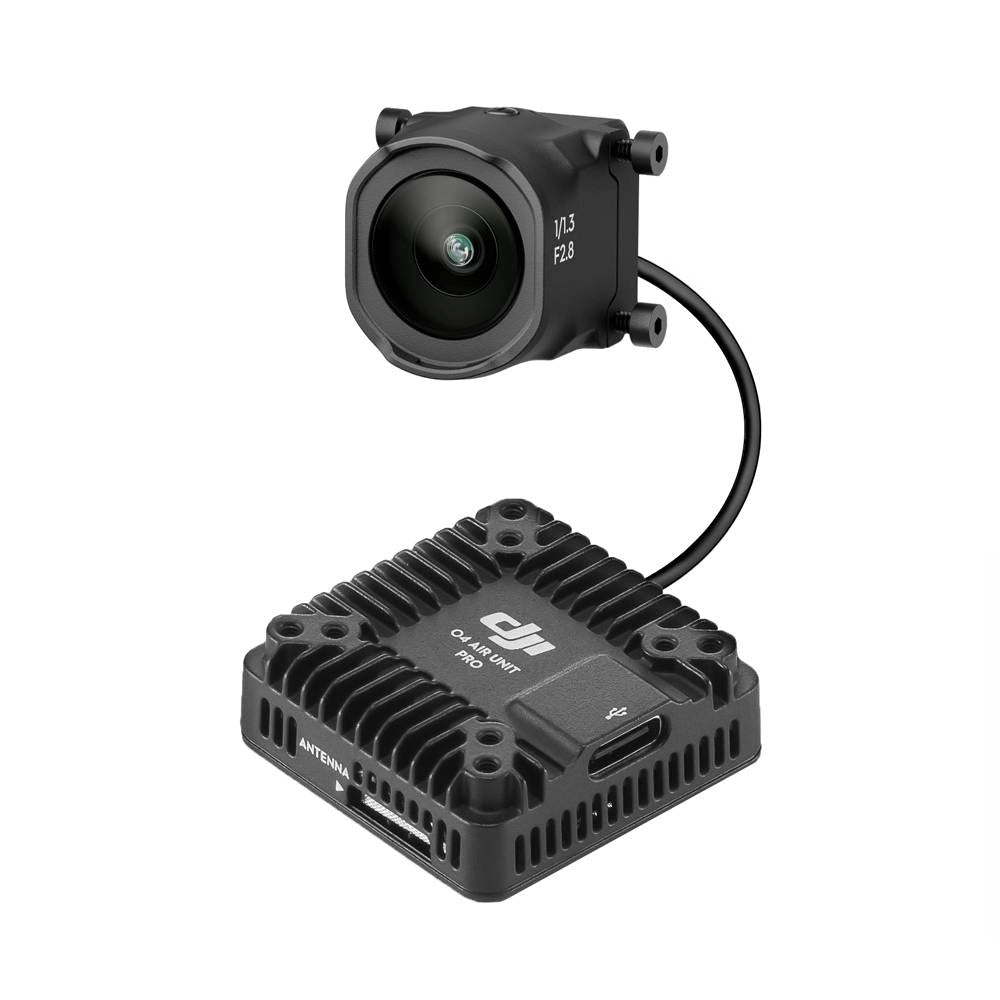

See even more with the  DJI O4 Air Unit Pro! This VTX  has improved resolution, lower latency, and extended range. At just 32 grams, it integrates a 1 1/3-inch image sensor that records 4K/120fps video, delivering an ideal combination of performance and portability. Get the clearest video transmission in the game!

Check out all of our HD VTX options and the rest of our DJI products!

Features

• Works with DJI Goggles 2, DJI Goggles Integra, DJI Goggles 3, or DJI Goggles N3
• Compatible with DJI FPV Remote Controller 2 or 3
• Flagship FHD FPV Digital Video Transmission
• 155° Ultra-Wide Field of View (FOV)
• 15 ms Low Latency, 15 km Range
• 4K/120fps Video Recording
• 1/1.3-inch CMOS Sensor
• 1080p/100fps Live View
• 32g Body

Flagship Design

• The DJI O4 Air Unit Pro can fit drone frames of 3 inches and above, supporting flexible assembly to suit various creative flight scenarios. Experience the thrill of flying while capturing high-quality footage with ease.

Visually Striking

• The DJI O4 Air Unit Pro is capable of recording 4K/120fps video. The video transmission system utilizes H.265 video encoding, supporting high-frame-rate transmission at 1080p/100fps, ensuring clear and smooth real-time imagery. No matter how fast you fly, the camera view keeps up.

Racing Mode

• The DJI O4 introduces a new Racing mode, with video transmission latency as low as 15 milliseconds. It supports up to eight aircraft racing simultaneously, taking you on an exhilarating, high-speed journey through the skies.

Canvas Mode

• The DJI O4 Air Unit supports Canvas Mode and Betaflight OSD settings. You can customize the real-time data and layout displayed on your goggles screen, making flight data clear at a glance and enhancing your control precision.

Specifications

DJI O4 AIR UNIT PRO

• Weight:

  • Air Unit (camera module excluded): Approx. 15.6 g

  • Air Unit (camera module included): Approx. 32 g

  • Antenna: Approx. 2.1 g/pcs

• Dimensions:

  • Transmission Module: 33.5 × 33.5 × 13 mm (L × W × H)

  • Camera Module: 25.55 × 20 × 23.30 mm (L × W × H)

  • VTX Mounting Pattern: 20x20/25.5x25.5mm
  • Coaxial Cable: 140 mm

  • 3-in-1 Cable: 100 mm

  • Antenna: 110 mm


VIDEO TRANSMISSION

• Operating Frequency:

  • 5.170-5.250 GHz

  • 5.725-5.850 GHz

  • Note: Operating frequency varies by region. Follow local regulations.

• Transmitter Power (EIRP):

  • 5.1 GHz: <23 dBm (CE)

  • 5.8 GHz:

    • <33 dBm (FCC)

    • <14 dBm (CE)

    • <30 dBm (SRRC)

• Lowest Latency:

  • DJI Goggles 3 in Racing Mode: 15 ms (1080p/100fps)

  • DJI Goggles N3 in Racing Mode: 19 ms (1080p/100fps)

  • DJI Goggles 2 or Goggles Integra: Less than 30 ms (1080p/100fps)

  • Note: Latency data was tested in an outdoor environment without interference.

• Max Video Transmission Range:

  • DJI Goggles 3/DJI Goggles N3:

    • 15 km (FCC)

    • 8 km (CE)

    • 8 km (SRRC)

    • Note: Transmission range varies by flight endurance and environment.

• Live View Quality: 1080P@30/48/50/60/100fps

• Communication Bandwidth: Max 60 MHz

• Antenna: 2 antennas, 2T2R

• Channels:

  • Supports auto and manual mode

  • DJI Goggles 3/N3:

    • 60 MHz: 1 channel

    • 40 MHz: 1 channel

    • 20 MHz: 3 channels

    • 10 MHz: 3 channels

  • DJI Goggles 2/Integra:

    • 40 MHz: 1 channel

    • 20 MHz: 3 channels

    • 10 MHz: 3 channels

• Channels Info:

  • FCC/SRRC/CE:

    • 60 MHz/40 MHz:

      • Channel 1: 5794.5 MHz

    • 20 MHz/10 MHz:

      • Channel 1: 5768.5 MHz

      • Channel 2: 5789.5 MHz

      • Channel 3: 5814.5 MHz

CAMERA

• Image Sensor: 1/1.3-inch CMOS Sensor

• Lens:

  • FOV: 155°

  • Equivalent Focal Length: 12 mm

  • Aperture: f/2.8

  • Focus: 0.6 m to ∞

• ISO Range:

  • 100-25600 (Auto)

  • 100-25600 (Manual)

• Video Resolution:

  • 4K (4:3): 3840 x 2880@30/48/50/60fps

  • 4K (16:9): 3840 x 2160@30/48/50/60/100/120fps

  • 2.7K (4:3): 2888 x 2016@30/48/50/60fps

  • 2.7K (16:9): 2688 x 1512@30/48/50/60/100/120fps

  • 1080P (4:3): 1440 x 1080@30/48/50/60/100/120fps

  • 1080P (16:9): 1920 x 1080@30/48/50/60/100/120fps

• Video Format: MP4

• Max Video Bitrate: 130 Mbps

• Color Mode:

  • Normal Mode

  • D-Log M

• Camera FOV Modes:

  • Standard

  • Wide-Angle

  • Ultra Wide-Angle

• Electronic Image Stabilization (EIS):

  • RockSteady 3.0+

  • Stabilization off (supports Gyroflow)

  • Note: RockSteady only supports standard angles.

HARDWARE

• Input Voltage: 7.4-26.4 V

• Operating Temperature: -10°C to 40°C

STORAGE

• Built-in Storage: 4GB

• Supported SD Cards: microSD (up to 512 GB)

• Recommended microSD Cards:

• Lexar Professional 1066x (64GB, 128GB, 256GB, 512GB)

• Kingston Canvas Go! Plus (64GB, 128GB, 256GB, 512GB)

COMPATIBILITY

• Supported Flight Controller System: Betaflight 4.3.0 and higher

• Supported DJI Goggles and Remote Controllers:

• DJI Goggles 3 + DJI FPV Remote Controller 3

• DJI Goggles N3 + DJI FPV Remote Controller 3

• DJI Goggles 2 / Goggles Integra + DJI FPV Remote Controller 2

• Note: The flight control firmware must support the SBUS protocol for using the DJI FPV Remote Controller.

DJI O4 PRO ANTENNA

• Weight: Approx. 2.1g
• Length: 110 mm

IMPORTANT NOTES:

• The Avata 2 ND filters will fit the DJI O4 Pro camera.

Includes

• 1x DJI O4 Air Unit Pro Transmission Module
• 1x DJI O4 Air Unit Pro Camera Module
• 1x DJI O4 Air Unit Pro 3-in-1 Cable
• 2x DJI O4 Air Unit Pro Antenna

Compatibility Chart
