Flywoo GOKU Versatile F405 1-2S AIO Whoop/Toothpick Flight Controller (w/12A 8Bit 4in1 ESC & 400mW VTX) - ELRS 2.4GHz

SAVE 5% OFF YOUR FIRST ORDER
Use discount code FIRSTLEGENDS at checkout.

EXCLUSIVE DISCOUNTS AVAILABLE
Military, First Responders & Students
Learn More
/
NOTE: This item is on pre-order. Estimated to ship in 0 to 1 days.

Flywoo GOKU Versatile F405 1-2S AIO Whoop/Toothpick Flight Controller (w/12A 8Bit 4in1 ESC & 400mW VTX) - ELRS 2.4GHz

$178.99

Earn 178 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

Flywoo introduces a remarkable, highly integrated AlO product, the GOKU Versatile F405 1-2S, 12A 5-in-1, 400mw AlO with Built-in ELRS 2.4G. Featuring the world's first STM32F405 BGA chip. It provides 5 UART serial ports for seamless device/module connection & 12C compass input. A 12A 4-in-1 ESC, fully-integrated serial ports-controlled ELRS receiver and a built-in 400mw VTX make it perfect for Tiny Whoop races or Toothpick freestyle flying.

Look at our other Whoop/AIO Flight Controllers, as well as the rest of our Flywoo selection.

Features

  • F405 BGA chip utilizes the powerful for enhanced computational processing power and a smaller form factor
  • Features an onboard 12A 4-in-1 ESC
  • Equipped with 5 UART serial ports for effortless connectivity with various devices and modules.
  • Supports 12C compass input, providing accurate navigation and positioning capabilities ExpressLRS 2.4G· Built-in receiver (UART) with a lightweight design, convenient for WiFi upgrades.
  • Built-in 400mw 5.8G video transmitter for an extended signal transmission range Built-in 8MB black box storage for easy access to flight status data.

Specifications

  • Product Name:  Versatile F405 5IN1 AIO
  • MCU: STM32F405 BGA
  • Gyro: ICM42688
  • Barometer: SPL06
  • Black Box: 8M
  • LED: Supported
  • OSD: Supported
  • Buzzer: Supported
  • UART: 1, 2, 3, 4, 6
  • Built-in Receiver: ExpressLRS 2.4G
  • Built-in VTX: 25/50/100/200/400mw
  • VTX Protocol: IRC Tramp
  • ESC Protocol : Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • Continuous Current: 12Ax4
  • Input Voltage: 15-25 (3V-8.7V)
  • BF Firmware: FLYWOO F405S AIO
  • Target ELRS Firmware: Flywoo EL24E 2400 RX 3.0.0
  • ESC Firmware : Z.H_30_REV16.7(BLHELI.S)
  • Size: 30.3x30.3mm
  • Mounting: 25.5x25.5-3mm
  • Weight: 4.6g (Without Antenna), 5.7g (With Antenna)

Includes

  • 1x Flywoo GOKU Versatile F405 1-2S AIO Whoop/Toothpick Flight Controller (w/12A 8Bit 4in1 ESC & 400mW VTX) - ELRS 2.4GHz

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Pilots also recommend these...
More from Flywoo
More from 25.5mm x 25.5mm AIO Flight Controller/ESC
Sold Out

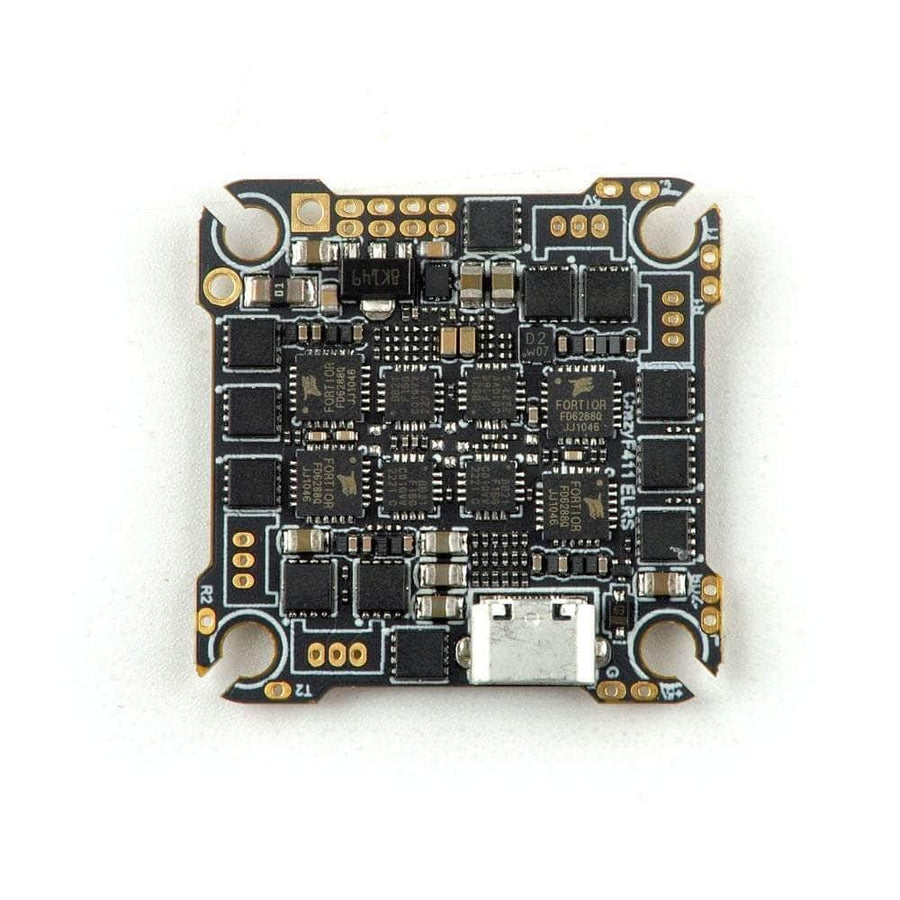

HappyModel CrazyF411 F4 2-4S Whoop/Toothpick AIO Flight Controller w/ 20A 8Bit 4in1 ESC - ELRS 2.4GHz (UART) at WREKD Co.
HappyModel CrazyF411 F4 2-4S Whoop/Toothpick AIO Flight Controller w/ 20A 8Bit 4in1 ESC - ELRS 2.4GHz (UART)
Options
Sold Out

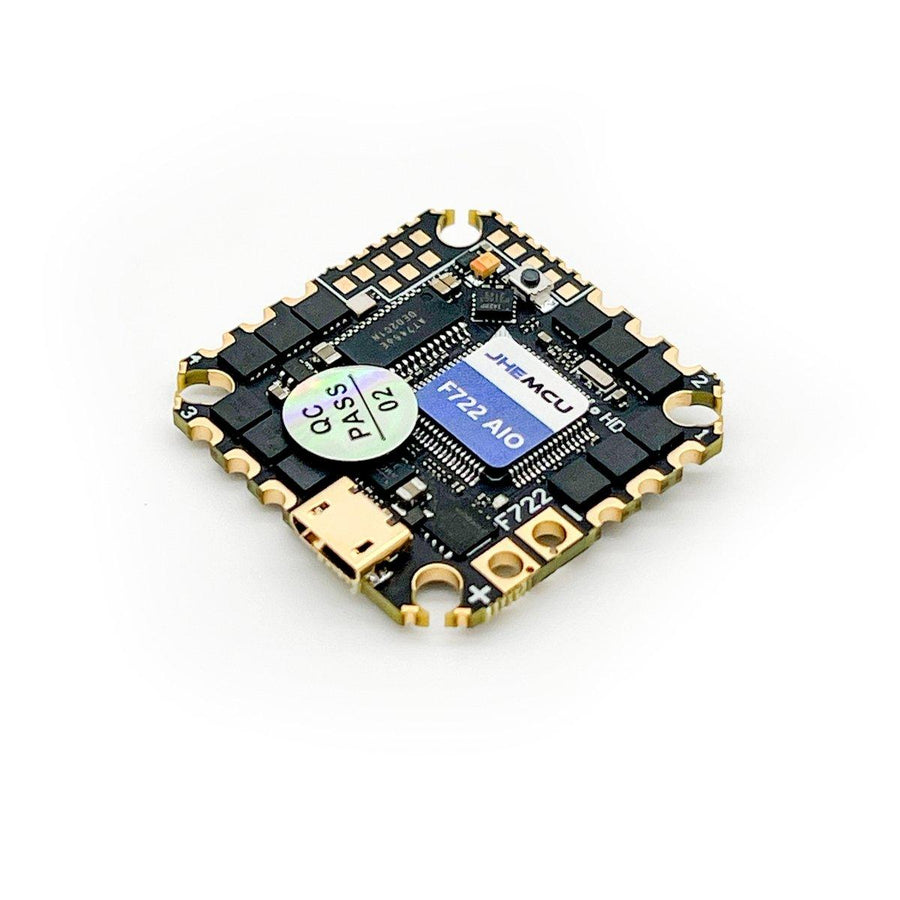

JHEMCU GHF722AIO-HD 40A AIO HD 25.5x25.5mm Flight Controller/ESC at WREKD Co.
JHEMCU GHF722AIO-HD 40A AIO HD 25.5x25.5mm Flight Controller/ESC
Options
In Stock

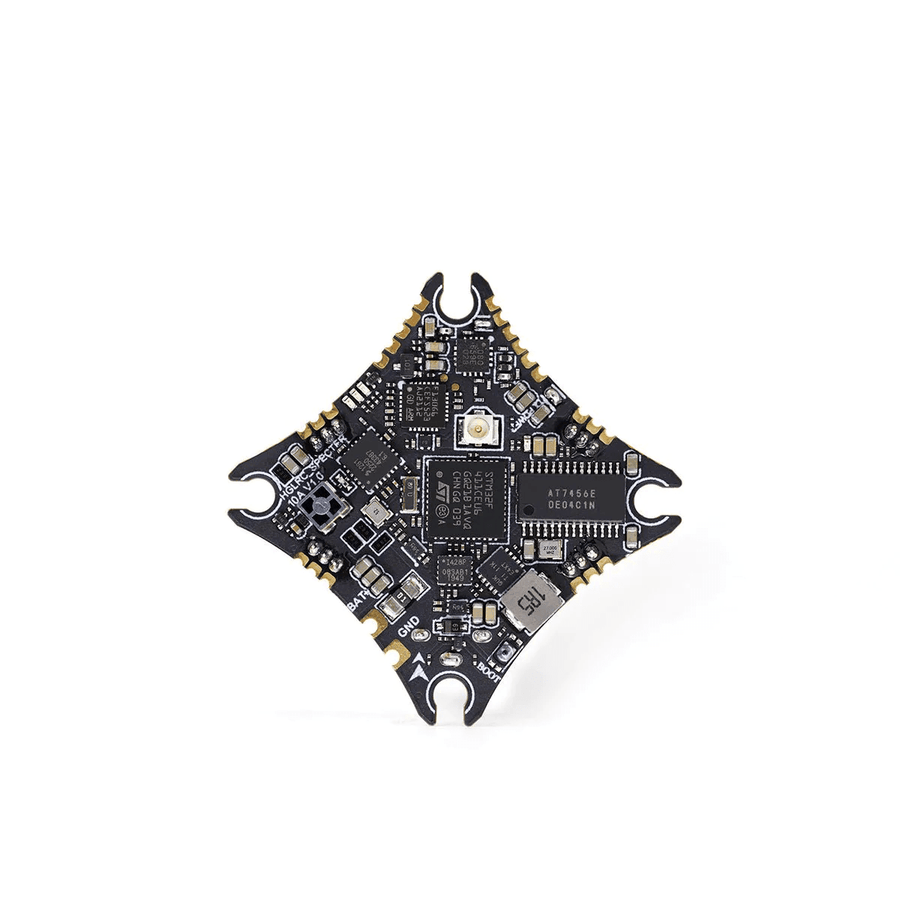

HGLRC Specter F411 1-2S AIO Whoop/Toothpick Flight Controller (w/ 10A 8Bit 4in1 ESC & 400mW VTX) - ELRS 2.4GHz (SPI) at WREKD Co.
HGLRC Specter F411 1-2S AIO Whoop/Toothpick Flight Controller (w/ 10A 8Bit 4in1 ESC & 400mW VTX) - ELRS 2.4GHz (SPI)
Sold Out
JHEMCU GSF405A 1S-2S AIO F4 Flight Control W/ 5A ESC & ELRS 2.4G RX - 25.5×25.5mm at WREKD Co.
JHEMCU GSF405A 1S-2S AIO F4 Flight Control W/ 5A ESC & ELRS 2.4G RX - 25.5×25.5mm
Options
In Stock

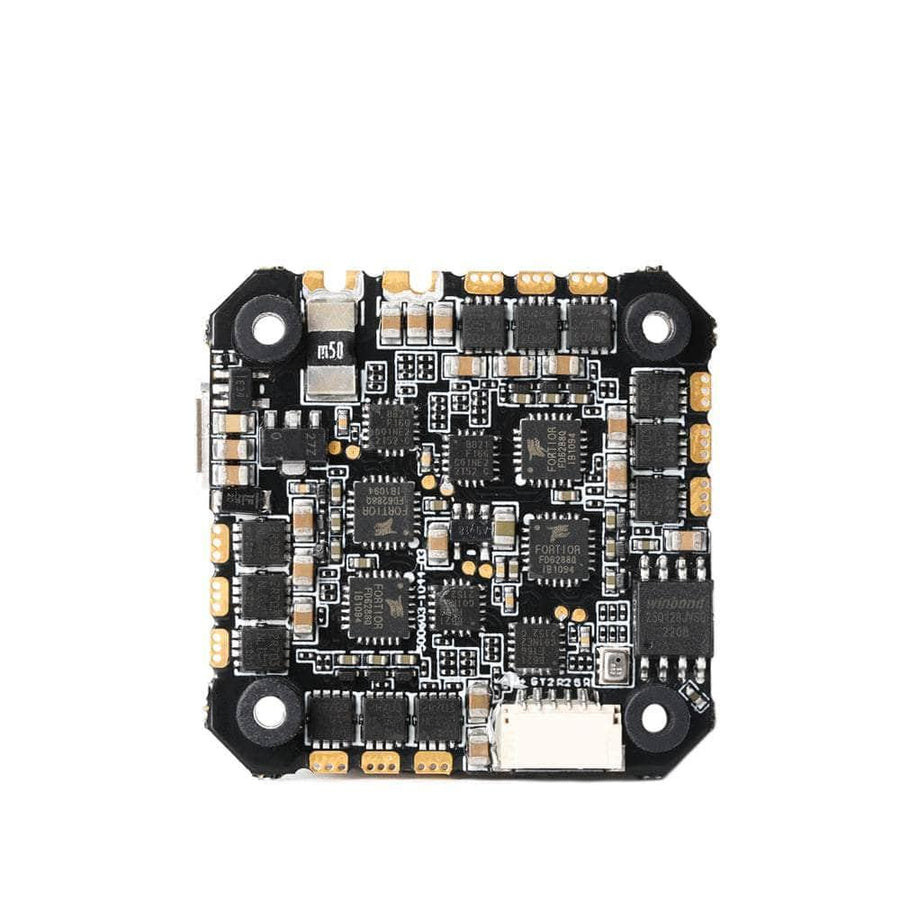

T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC at WREKD Co.
