Regular price $559.86 Sale price $489.70
/
Receiver
NOTE: This item is on pre-order, which means it will ship very soon. This typically ranges from 3 to 7 days.

NewBeeDrone AcroBee75 HD O3 BNF

$489.70

Earn 489 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

NewBeeDrone AcroBee75 HD O3

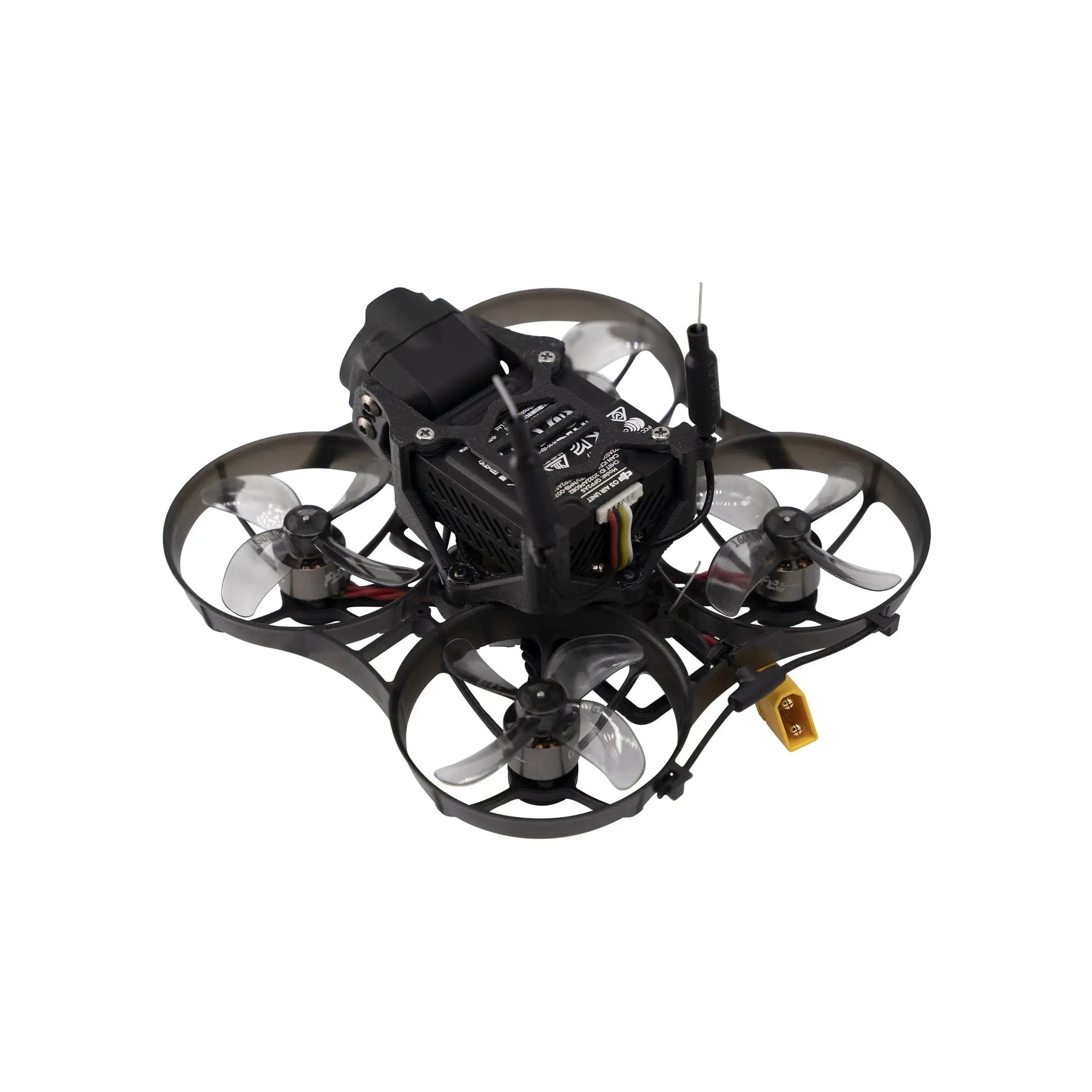

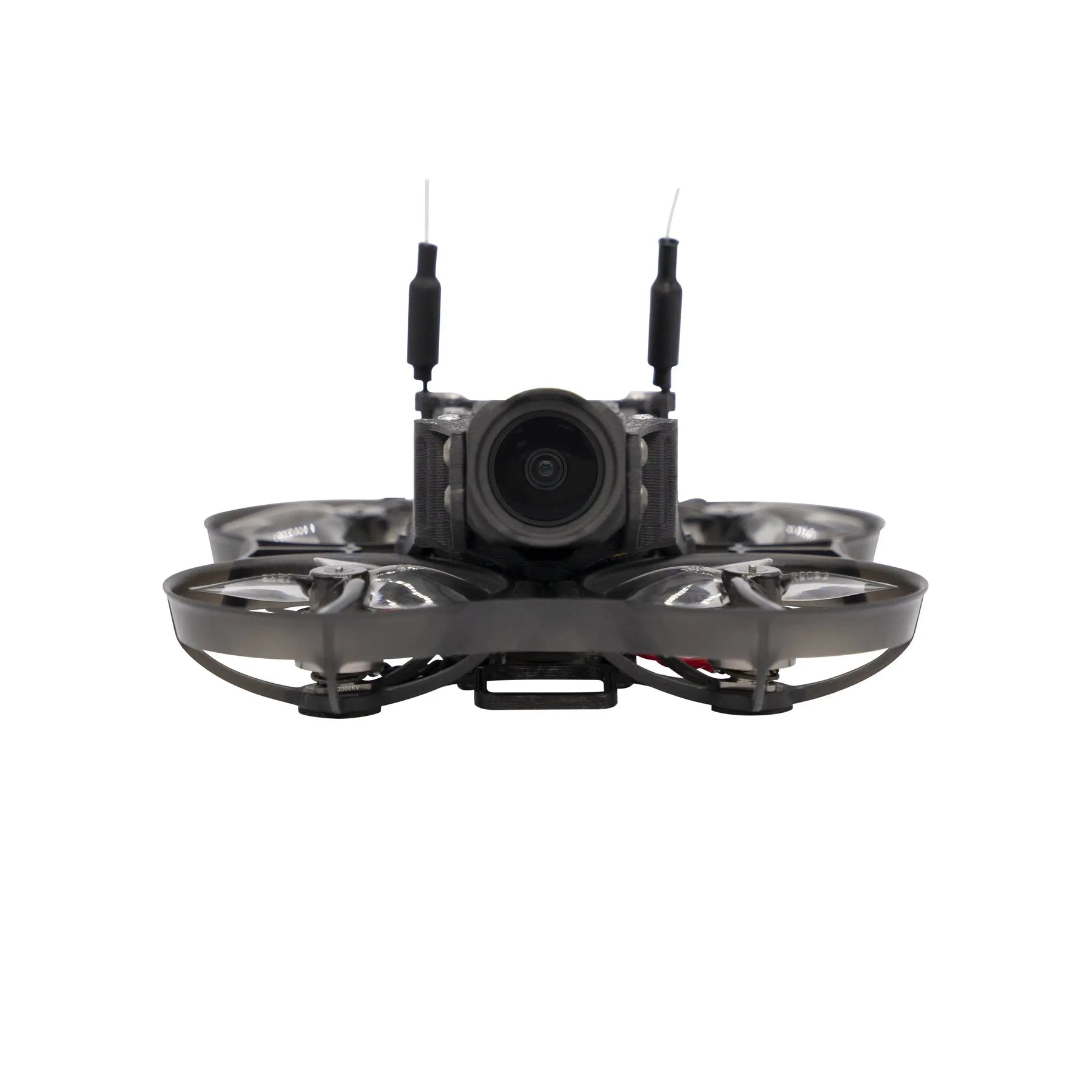

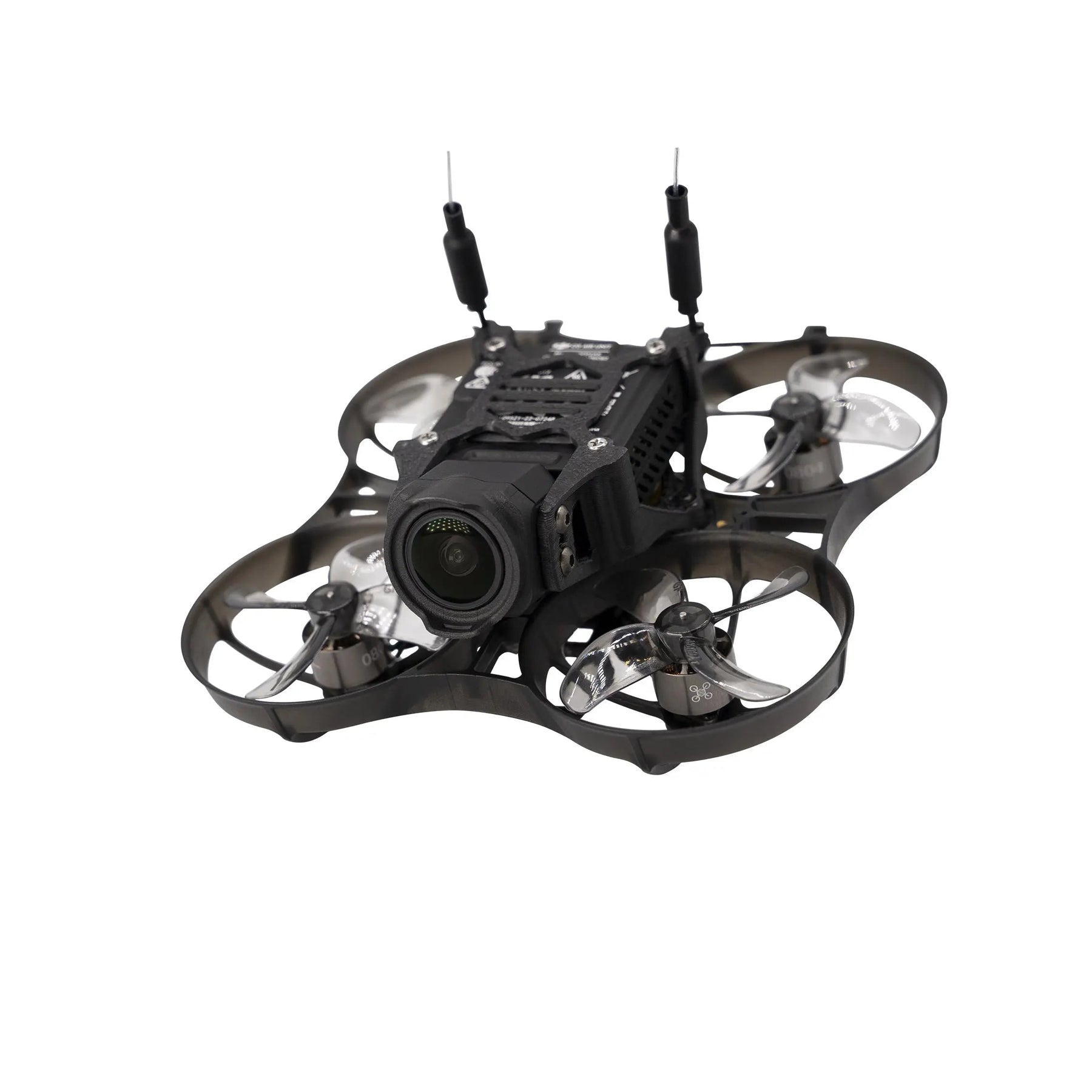

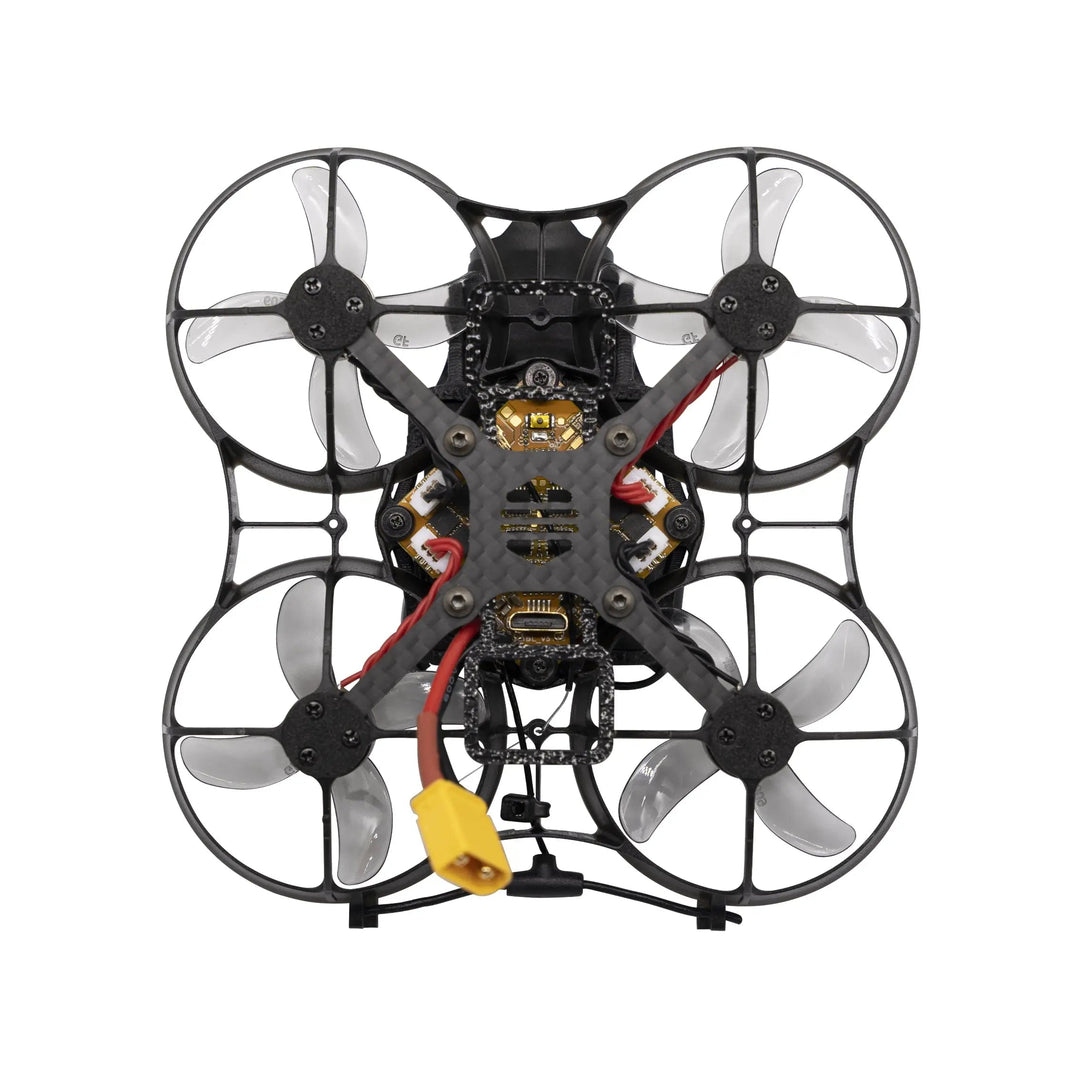

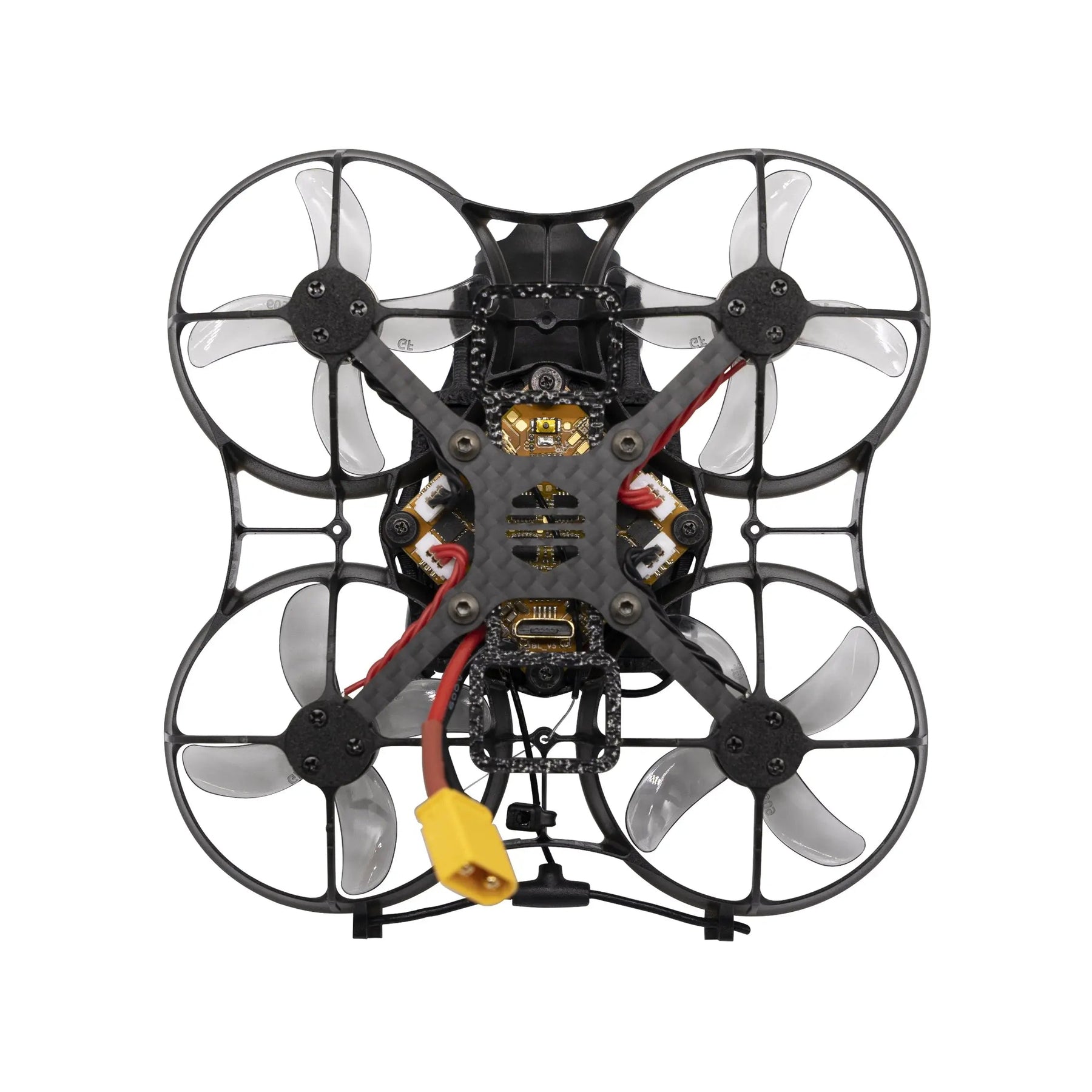

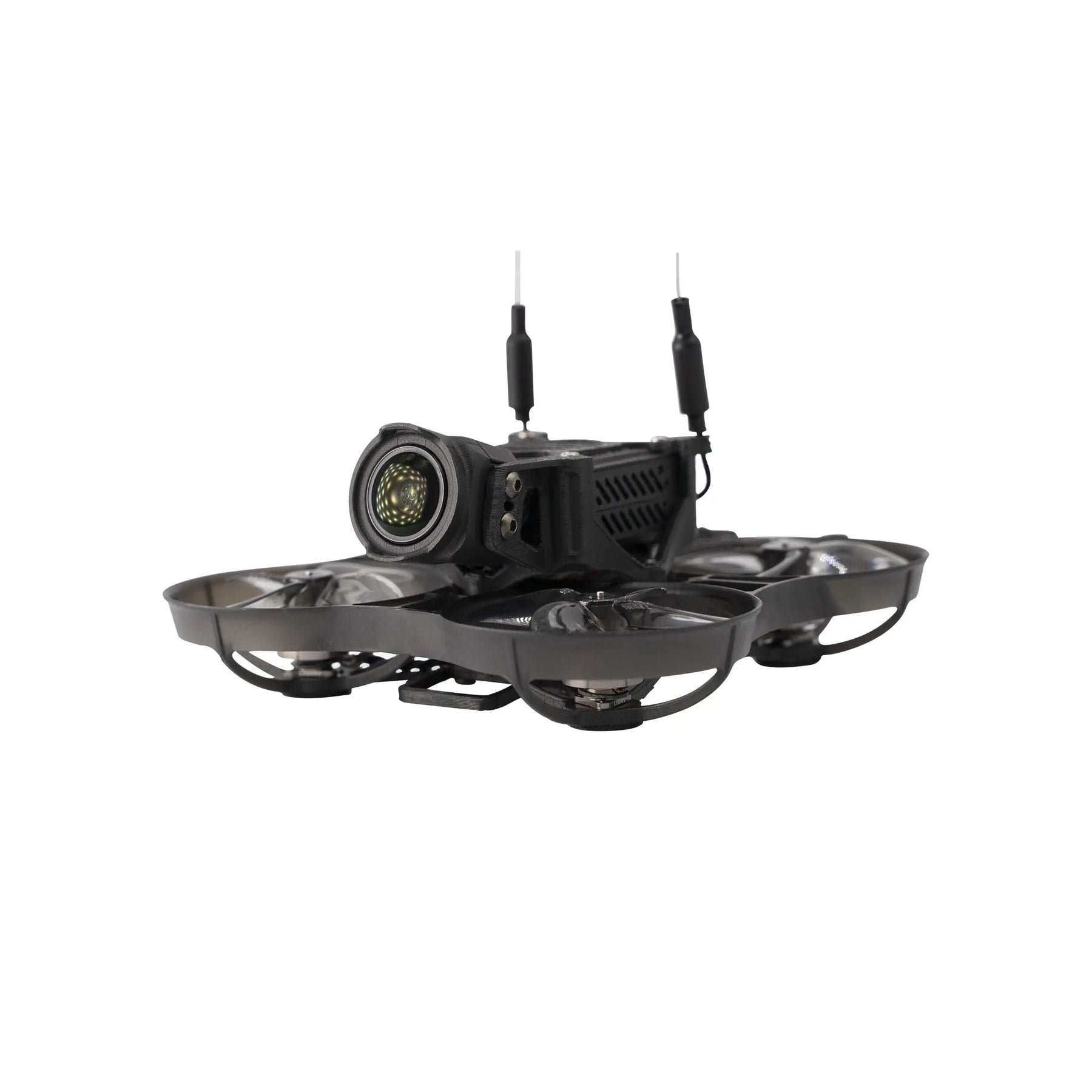

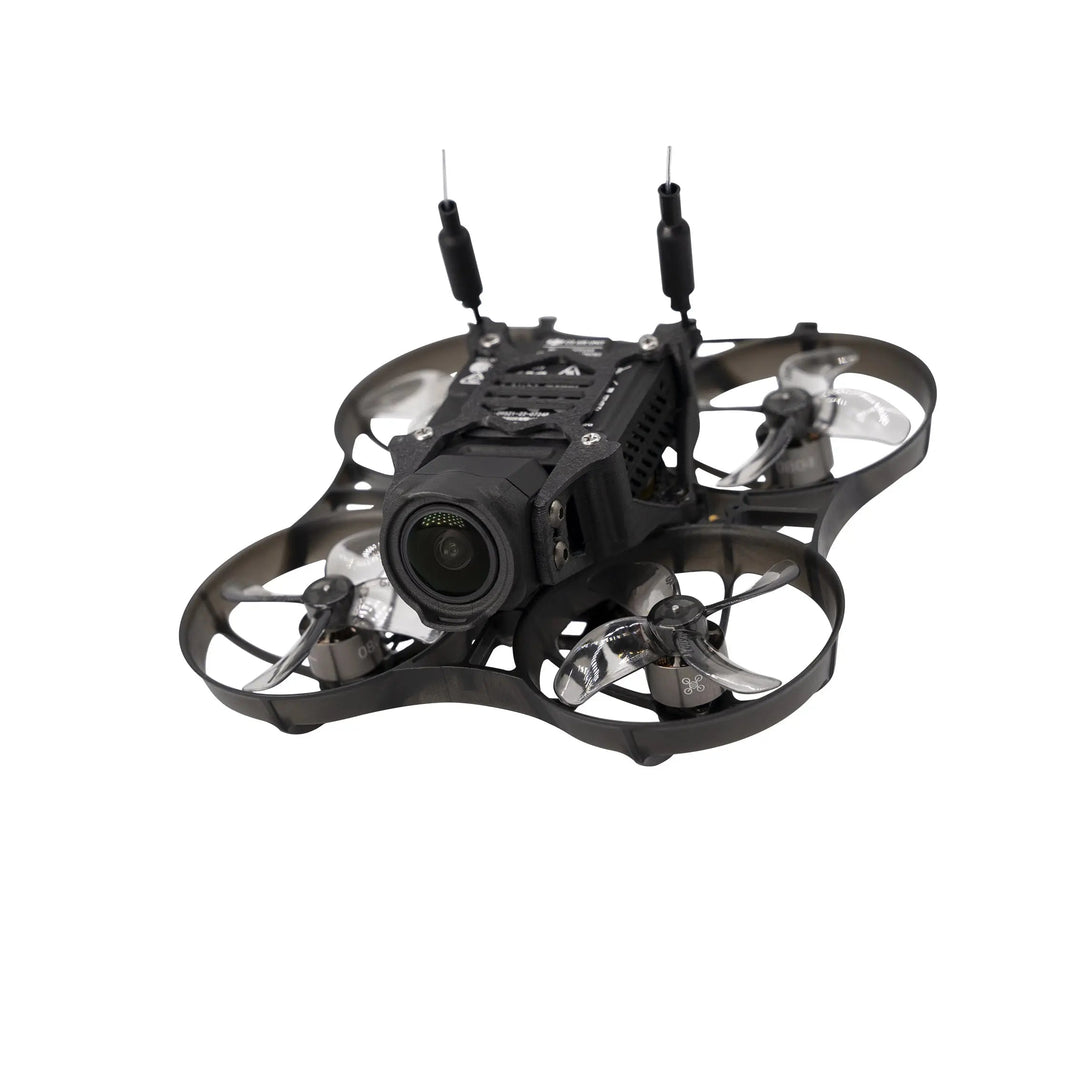

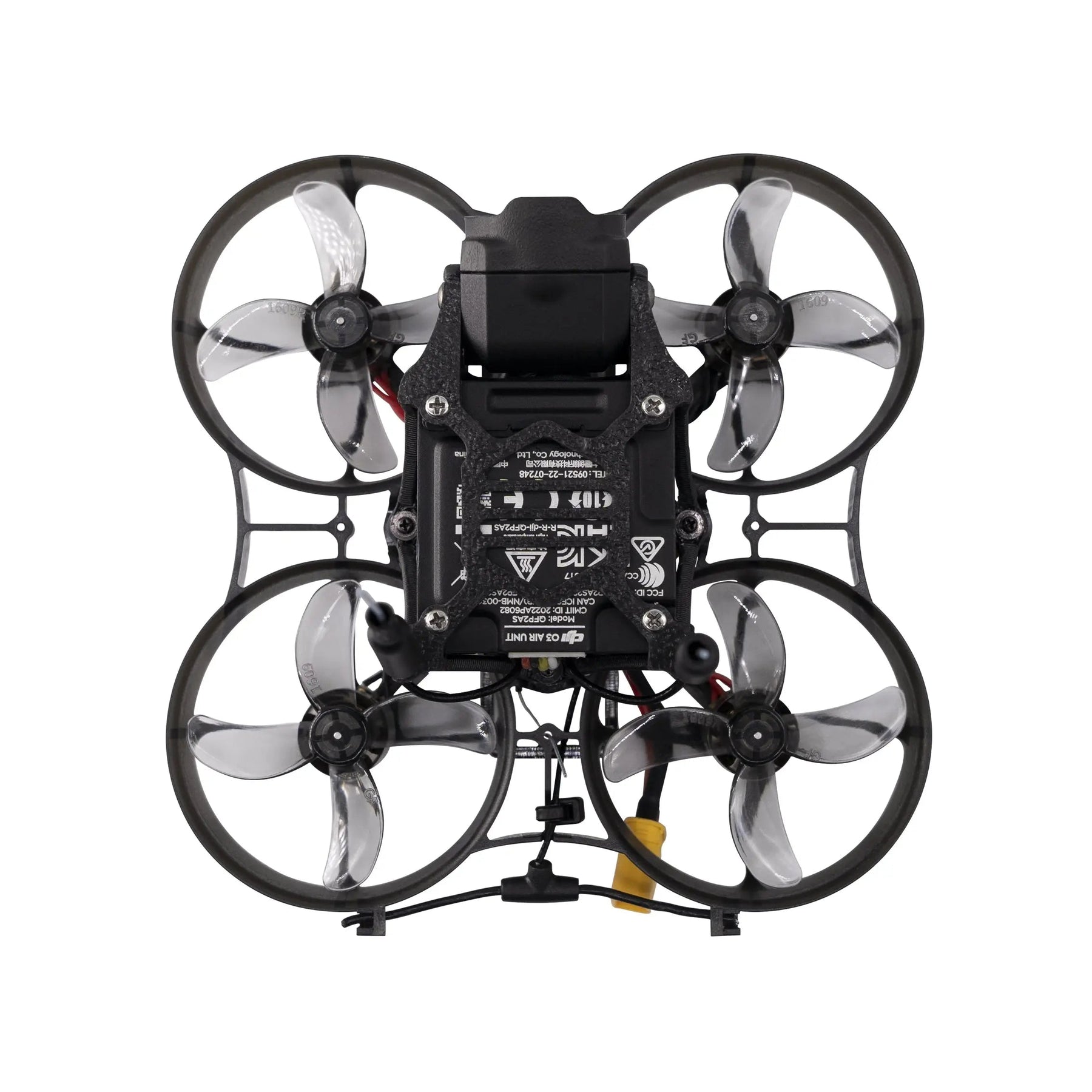

Introducing the AcroBee75 HD O3 BNF - a compact powerhouse. It's the pioneer whoop featuring G4 flight controller and built-in ELRS2.4 receiver, effortlessly compatible with Dshot600 and bi-directional Dshot. As the tiniest and lightest HD whoop with a complete DJI O3 unit available, it boasts remarkable agility and an impressive flight time of nearly 3.5 minutes. Our expert tuning ensures seamless indoor filming in self-level and acro modes. To optimize performance and visuals, turn on DJI RockSteady via goggle settings. Note that this model is not suitable for outdoor or windy conditions.



Warning: This drone has been carefully crafted using only newbeedrone parts. It is important to note that any use of non-compatible parts from other brands may result in technical difficulties. Additionally, should you choose to modify the drone, it is crucial that you assume full responsibility for any resulting issues. It is not advisable to proceed with modifications without the necessary knowledge and expertise. We appreciate your understanding and cooperation in ensuring the safe operation of the drone.

*Note: For outdoor flying, RockSteady is required in order to get the best picture quality(On DJI goggle Menu). The PID tune are base on the current setup. If you change any setting on the drone and it is acting weird, please flash the newest firmware.


Important Notice: If you experience issues with your drone, do not flash the firmware. Simply perform a factory reset using the configuration tool (e.g., Betaflight Configurator) and then do an accelerometer calibration. For further assistance, please contact our support team.




Specifications:

Recommended battery:


BeeBrain BLV4 HD G4 Flight Controller ELRS2.4G Specifications:

  • MCU: STM32G474
  • ESC Firmware: Z-H-40 - Bluejay 0.19.2 48kHz.
  • ESC Specifications: 1 channel 20A ESC
  • Receiver: NBD ExpressLRS 3.0 Diversity (non-SPl)
  • Receiver Antenna: 1x BeeT-Antenna 1x 2.4G receiver antenna
  • Flight Controller Weight:7.4g (including antenna and XT30 Battery connector)
  • Flight Controller Size: Outer dimensions :29 x 29 x 7.6 mm
  • Flight Controller Holes: 25.5 x 25.5 mm
  • Battery Input: 1-2S
  • BEC:10V 2A for DJI O3 (under 2S power only)
  • BEC5V 2A
  • UART1: Free
  • UART2: TX & RX for EXPRESSLRS 3.0 receiver
  • UART3: Free
  • UART4: Free
  • Flight time with Tattu 450mAh 2S battery is 3:00min (at 7v)


Includes:



Video:










Downloads:

BeeBrain BLV4 HD Betaflight 4.4.0 firmware with tune

Newest Firmware

3D file
