iFlight BNF Nazgul5 V3 6S 5" HD Freestyle Quad w/ DJI O3 Air Unit & Micro Cam - Choose Receiver

$1,010.20

Earn 1010 CaveCoin by purchasing this item.

Log In or Sign Up to start earning on your next order.

[{"id":47486863245616,"title":"PNP (DJI)","option1":"PNP (DJI)","option2":null,"option3":null,"sku":"sku-40372732985457","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"iFlight BNF Nazgul5 V3 6S 5\" HD Freestyle Quad w\/ DJI O3 Air Unit \u0026 Micro Cam - Choose Receiver - PNP (DJI)","public_title":"PNP (DJI)","options":["PNP (DJI)"],"price":101020,"weight":703,"compare_at_price":null,"inventory_management":"shopify","barcode":"691023517455","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47486863343920,"title":"ERLS 2.4GHz","option1":"ERLS 2.4GHz","option2":null,"option3":null,"sku":"sku-40372733018225","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"iFlight BNF Nazgul5 V3 6S 5\" HD Freestyle Quad w\/ DJI O3 Air Unit \u0026 Micro Cam - Choose Receiver - ERLS 2.4GHz","public_title":"ERLS 2.4GHz","options":["ERLS 2.4GHz"],"price":103935,"weight":703,"compare_at_price":null,"inventory_management":"shopify","barcode":"691023517578","requires_selling_plan":false,"selling_plan_allocations":[]}]

About this item

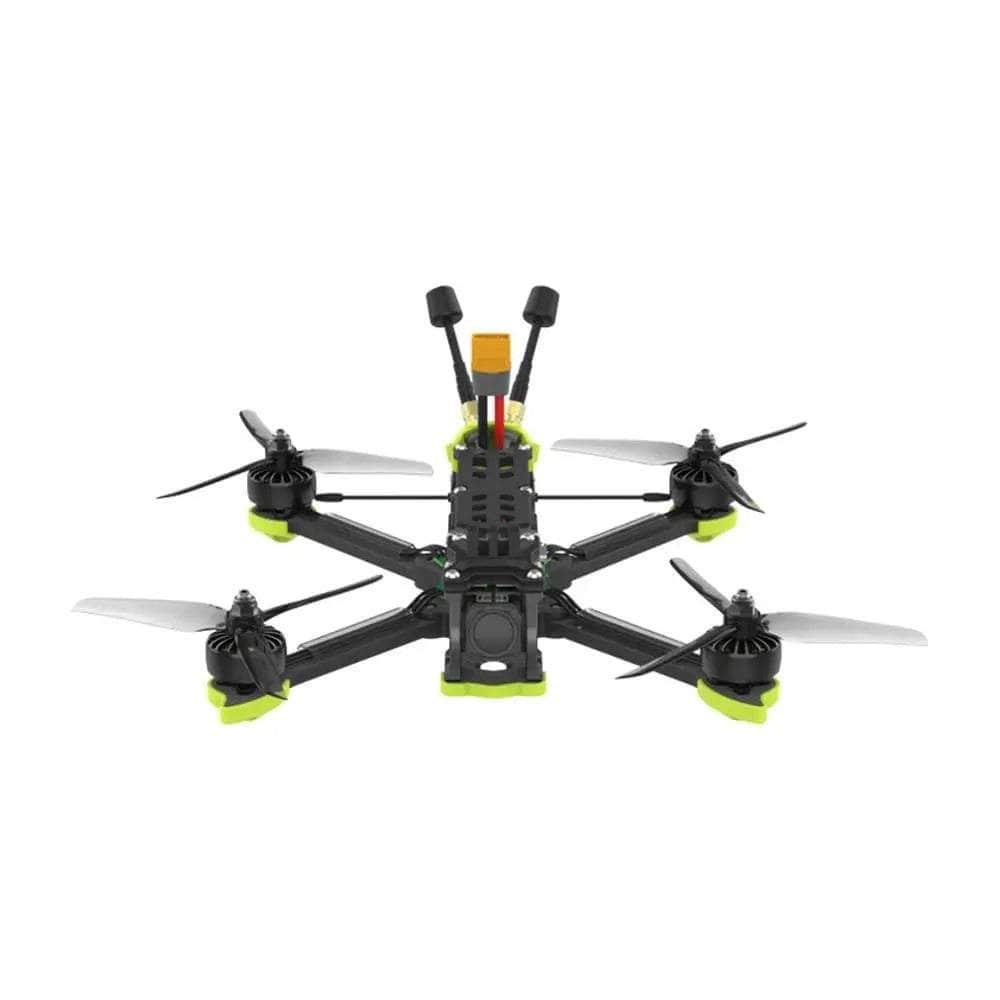

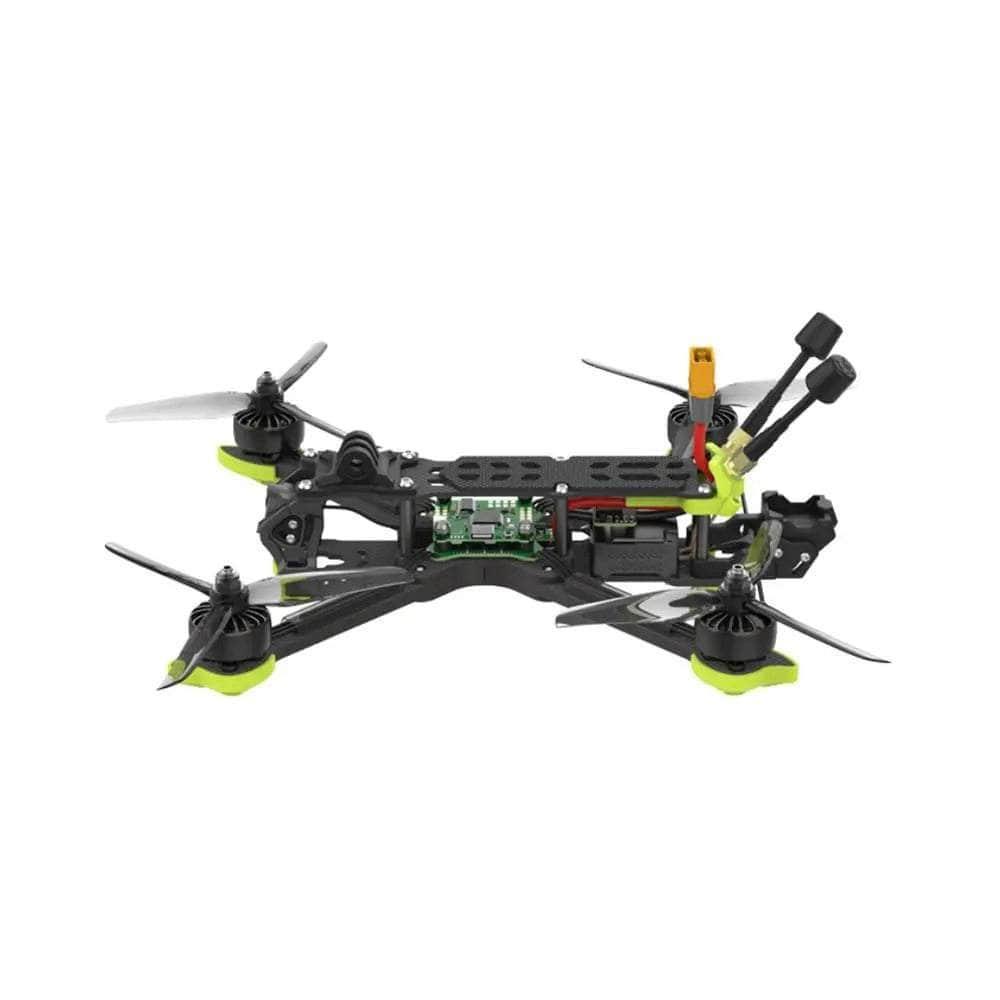

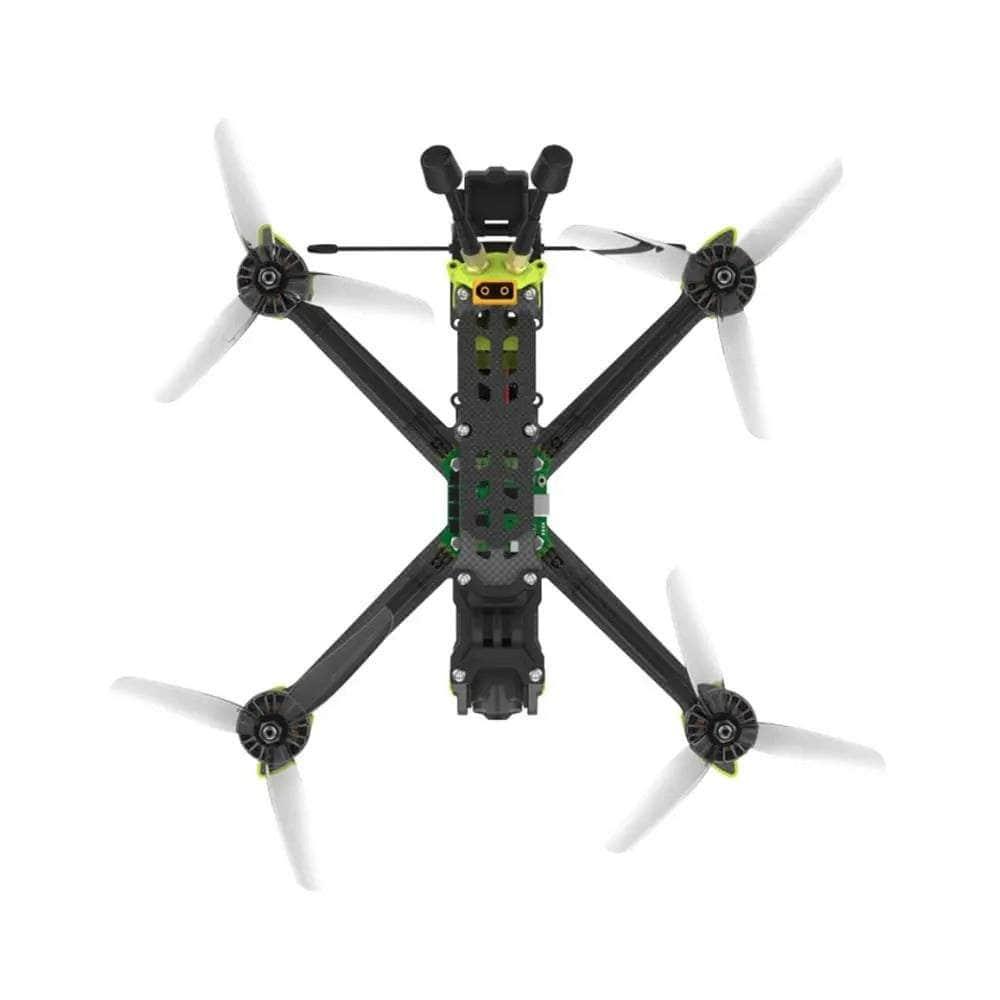

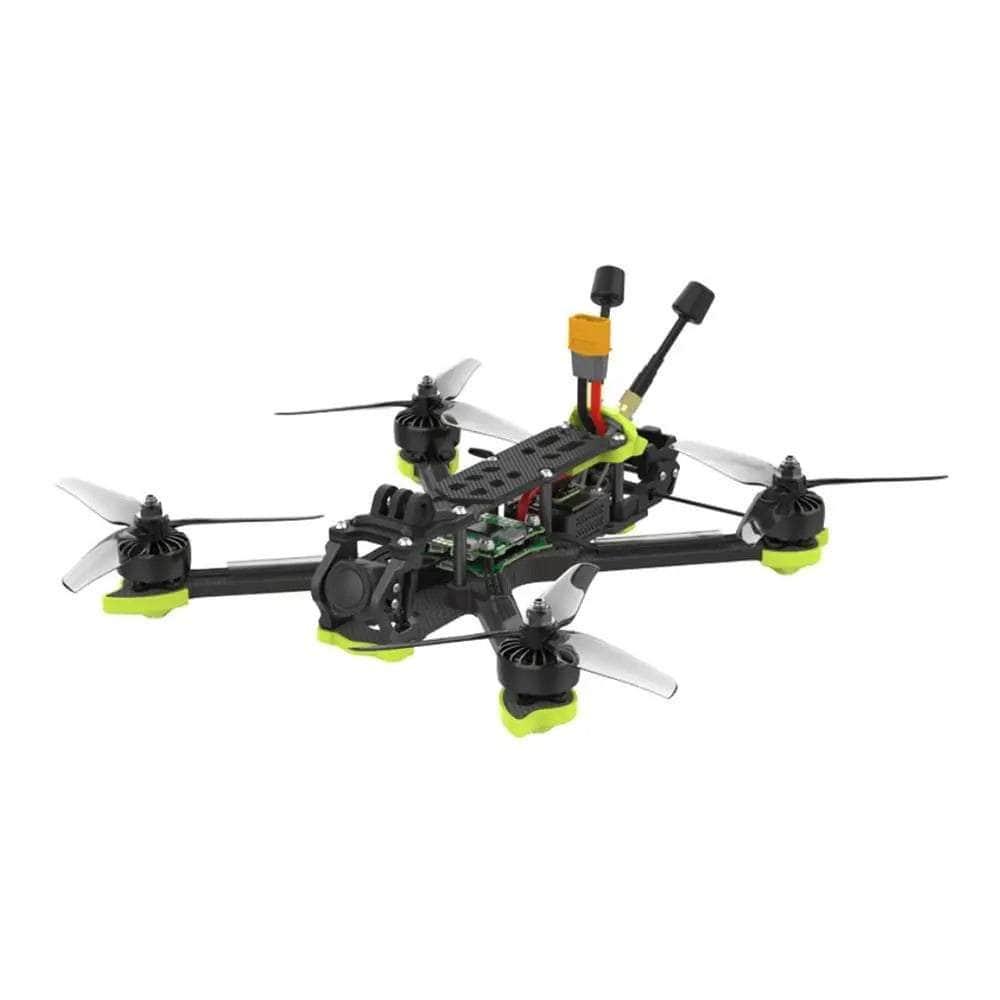

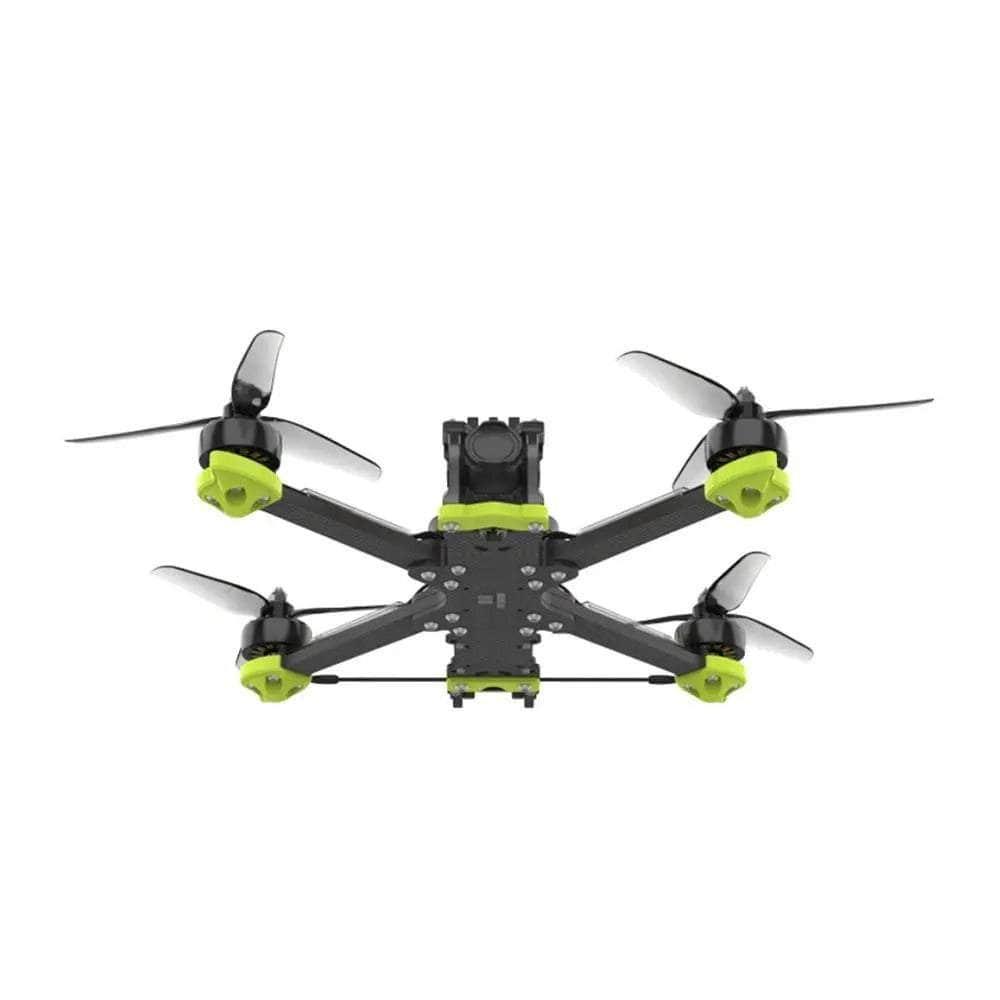

The Nazgul5 HD V3 is loaded with lots of power and performance; it comes with the XING-E Pro 2207 6S motors, BLITZ F722 FC, and BLITZ E45S 45A 4-in-1 ESC, which makes this quad a must-have! Now with the DJI O3 Air Unit! The Nazgul V3 is one of the best freestyle frames for its value. The Nazgul5 V3 HD has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly. The Nazgul5 V3 is a 5" freestyle frame made of super stiff carbon for minimal resonance.

Be sure to check out our Bind-n-Fly collection as well as all of our iFlight Products!

Features

XING-E Pro 2207 motors and NAZGUL F5 props
5" version also fits 5.1" style propellers
Fits both 30.5x30.5 and 20x20 stacks
5mm arm design for more durability
Popular True-X configuration
LED illuminated logo
TPU crash-guards
Easy-Swap arms

Specifications

Operating Temperature Range：-10° to 40° C (14° to 104° F)
Max Wind Speed Resistance: 130 Km/H (Level 4)
Receiver: DJI BNF, ELRS
Dimensions (L×W×H): 180×180×80 mm
Max Speed: 130 Km/h (Manual Mode)
Video Transmission: DJI O3 Air Unit
Maximum Takeoff Altitude: 5000 m
Product Name：Nazgul5 V3 6S HD
ESC: BLITZ E45S 45A 4-IN-1 ESC
Max Hover Time: Approx. 8 mins
Motor: XING-E Pro 2207 motors
Takeoff Weight: Approx. 620 g
Prop: Nazgul 5 inch propellers
Diagonal Distance: 245mm
Frame: 255mm wheelbase
Max Flight Distance: 5 km
Antennas: 2 Antenna
FC: BLITZ F722
GNSS: N/A

Video Transmission

Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams（headband included）
Dimensions (L×W×H): L32.5x W30.5xH 14.5mm
Communication Bandwidth： Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
End-to-End Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

Includes

1x iFlight BNF Nazgul5 V3 HD 6S 5" Freestyle Quad w/ DJI O3 Air Unit & Micro Cam - Choose Receiver
2x Nazgul 5 inch propellers (Set of 4)
2x Battery Pad
2x Antenna
