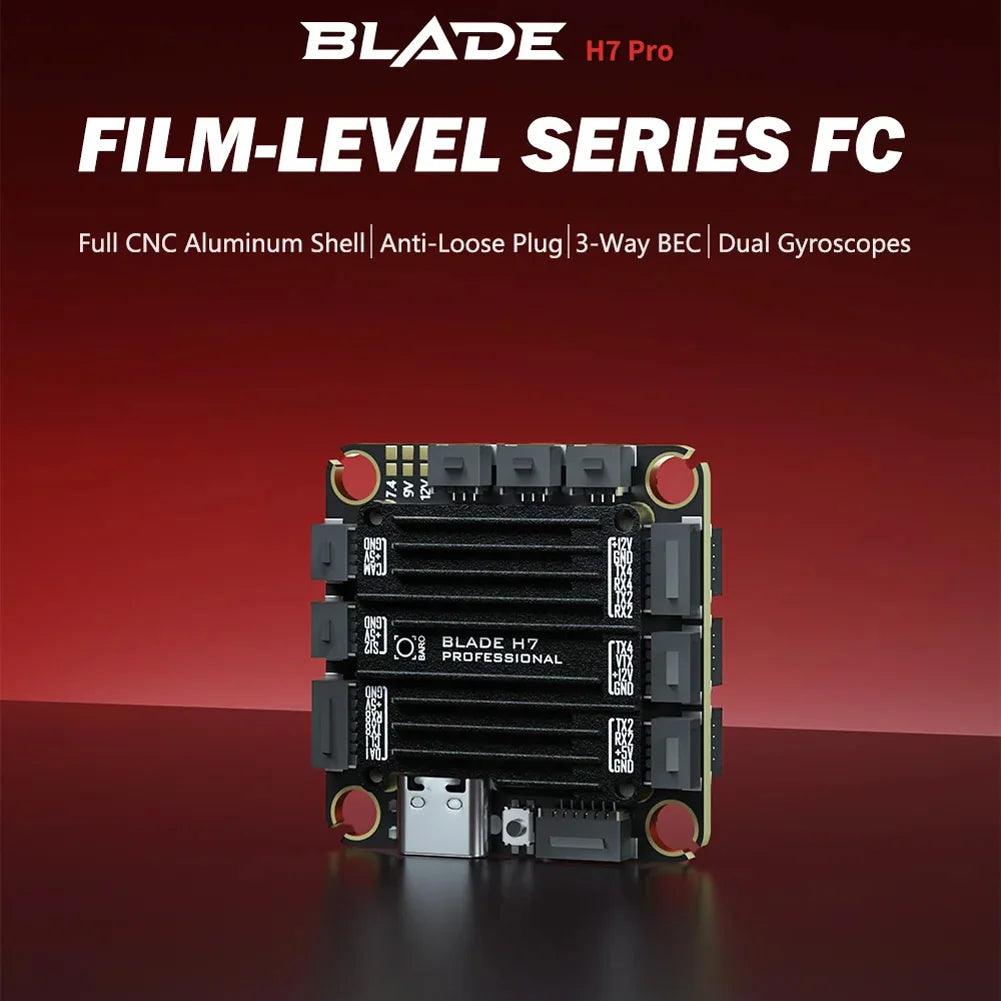

RUSH BLADE H7 PRO Cinema Flight Controller

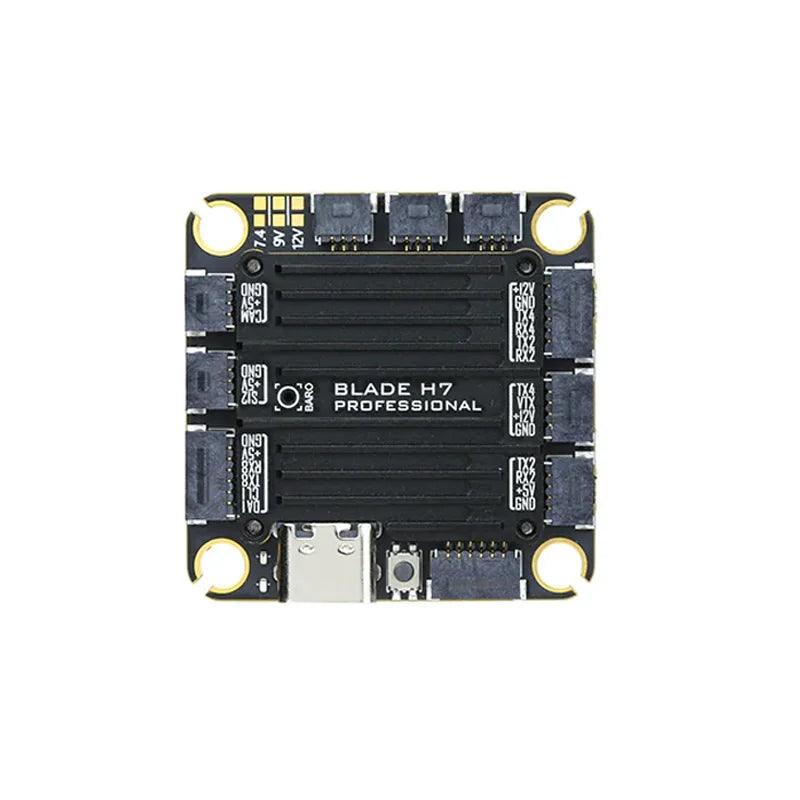

The BLADE Cinema Series Flight Controller is a premium, high-performance solution tailored for advanced drone applications, offering a cinematic-grade experience. It boasts a full CNC aluminum shell for durability and heat dissipation, dual ICM42688 gyroscopes for precision, and an iFlight H743 main control chip for optimal processing power. Integrated features include analog OSD, a built-in barometer, and multi-port design for seamless connectivity.

Features

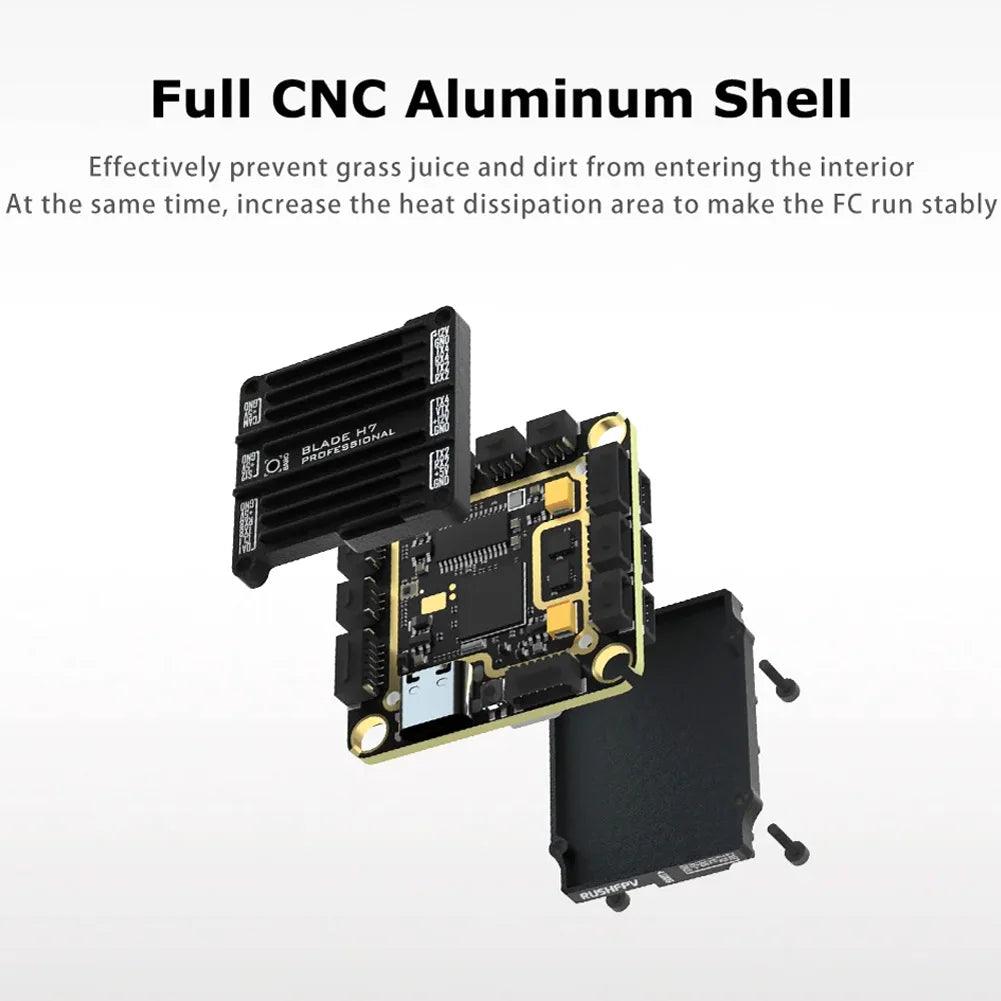

1. Full CNC Aluminum Shell: Provides robust protection and effective heat management.

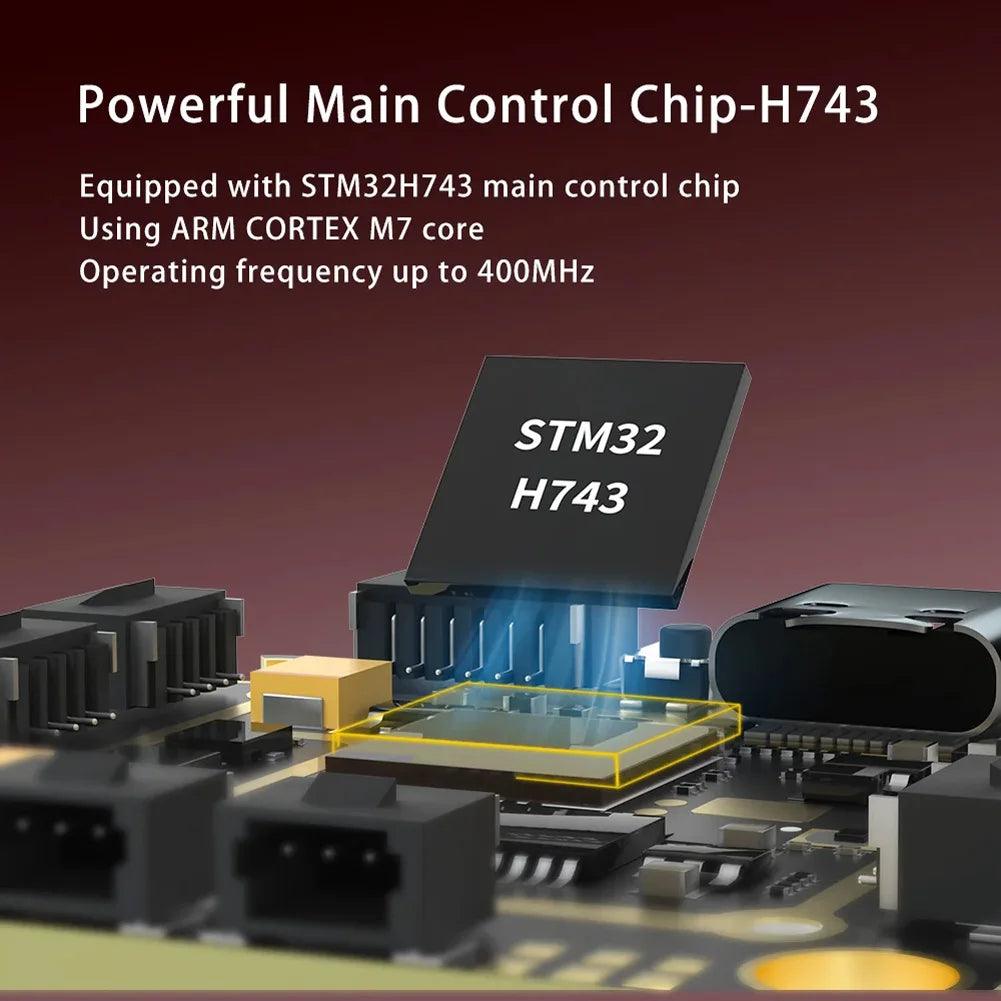

2. Powerful iFlight H743 Chip: Ensures smooth operation and compatibility with demanding tasks.
3. Dual ICM42688 Gyroscopes: Enhances accuracy for cinematic-level stability.
4. Integrated Barometer and OSD: Simplifies flight data monitoring.

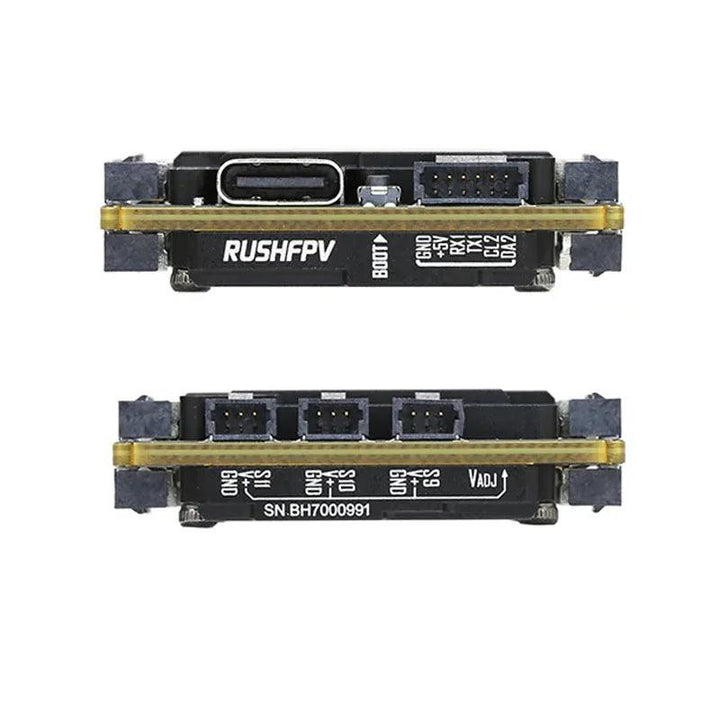

5. Multi-Port Plug-and-Play Design: Supports easy installation with various connectors.
6. Multi-Channel BEC: Offers multiple voltage outputs to power peripherals.

Specifications

• Processor: STM32H743
• Gyroscope: Dual ICM42688
• OSD: Integrated
• BEC Outputs:
  • 5V @ 3A
  • 9V @ 3A
• Input Voltage: 3S-6S (11.1V - 25.2V)
• UART Ports: 8
• I2C Ports: 1
• Barometer: Integrated
• Firmware: iFlight-specific
• Mounting: 30.5 x 30.5 mm
• Weight: Approx. 14g

Includes

• 1x Blade Series FC
• Full cable set:
  • 6-pin to 6-pin (multiple lengths)
  • 8-pin to 8-pin (multiple lengths)
  • GPS, ESC, and additional connectors
• Hardware kit:
  • M3 screws
  • Rubber grommets
• Product manual
