Regular price $92.00 Sale price $65.11
/
  • In Stock

The 250g AUW quad from Alex Vanover! Read more

Style
NOTE: This item is on pre-order. Estimated to ship in 0 to 1 days.

Vannystyle Mini 3.5" Frame Kit - Choose Style

$65.11
  • Ships from: WREKD Warehouse, Ohio, United States
    Learn about our Shipping and Return Policy

Earn 65 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

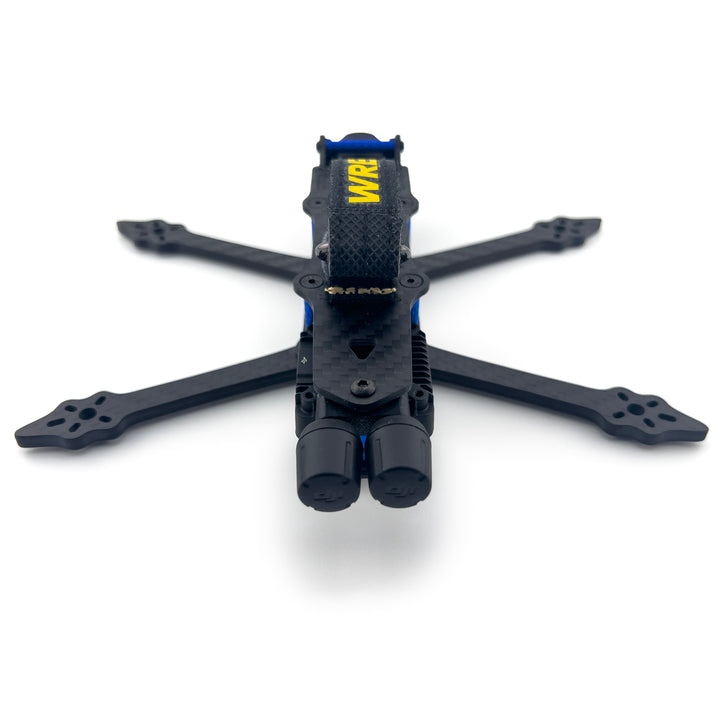

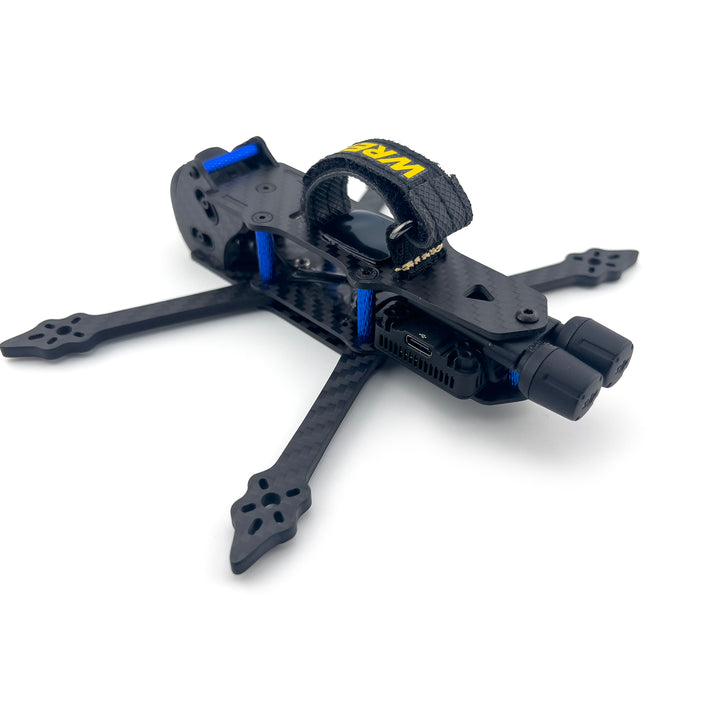

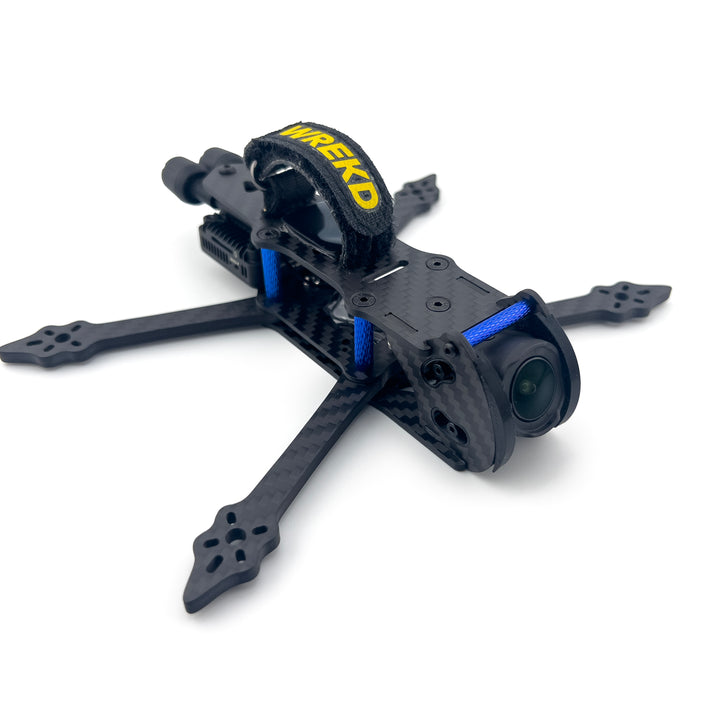

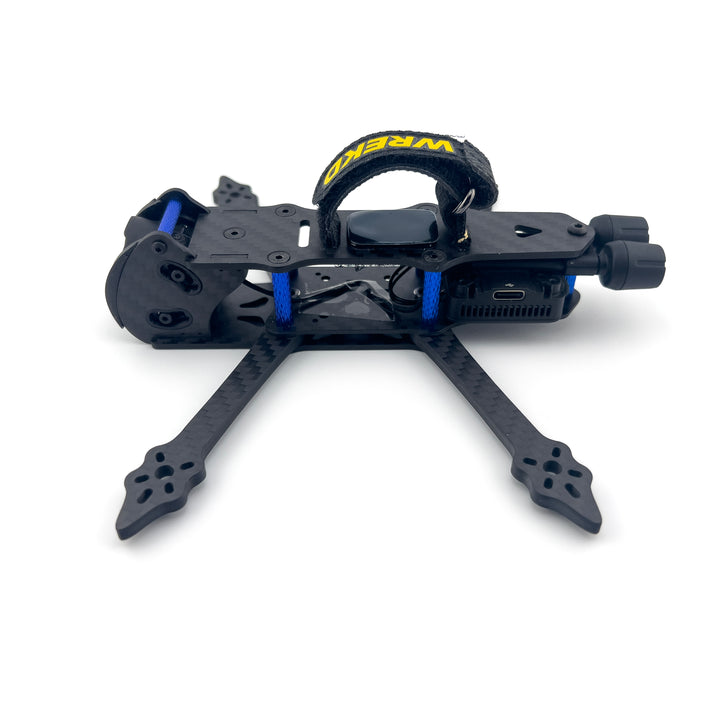

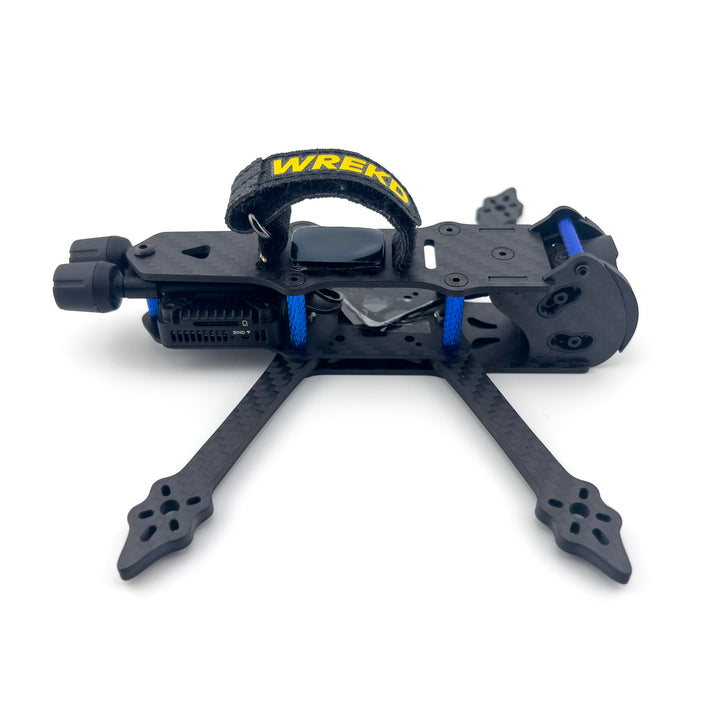

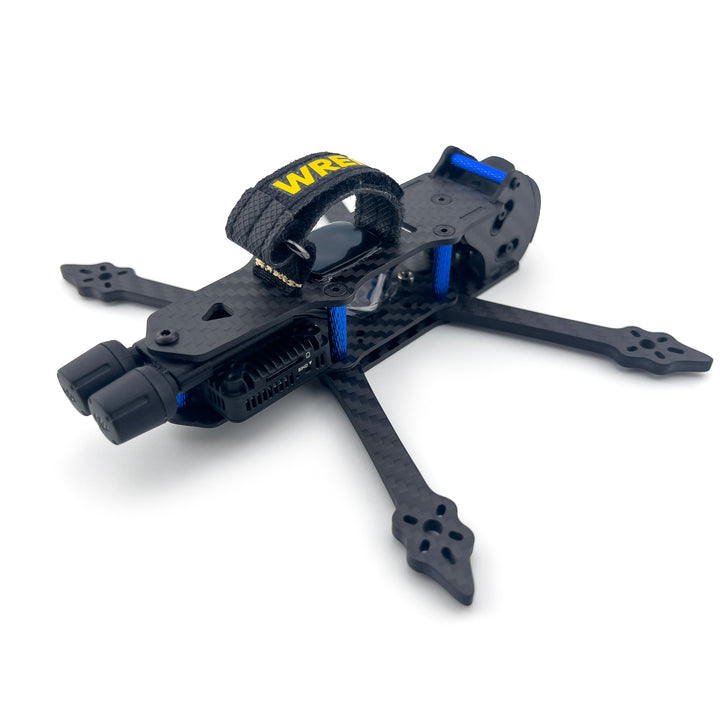

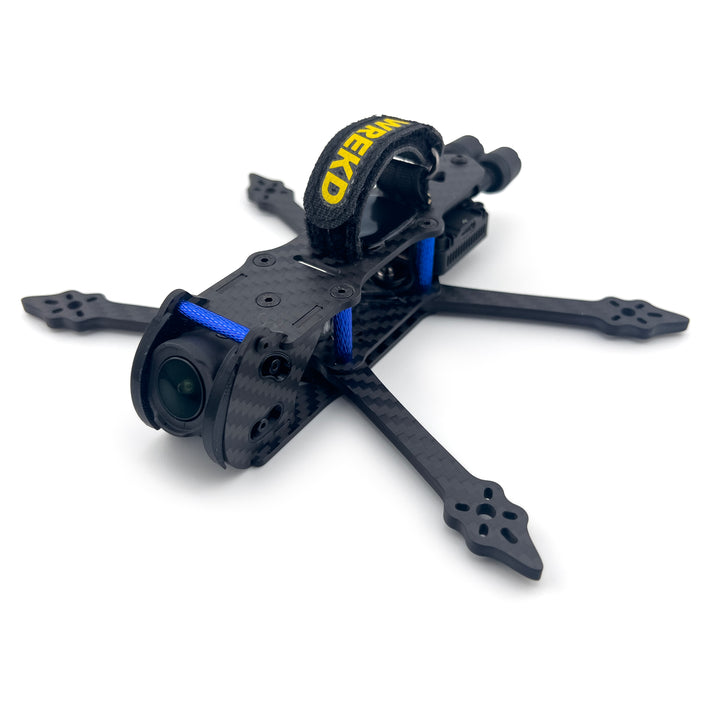

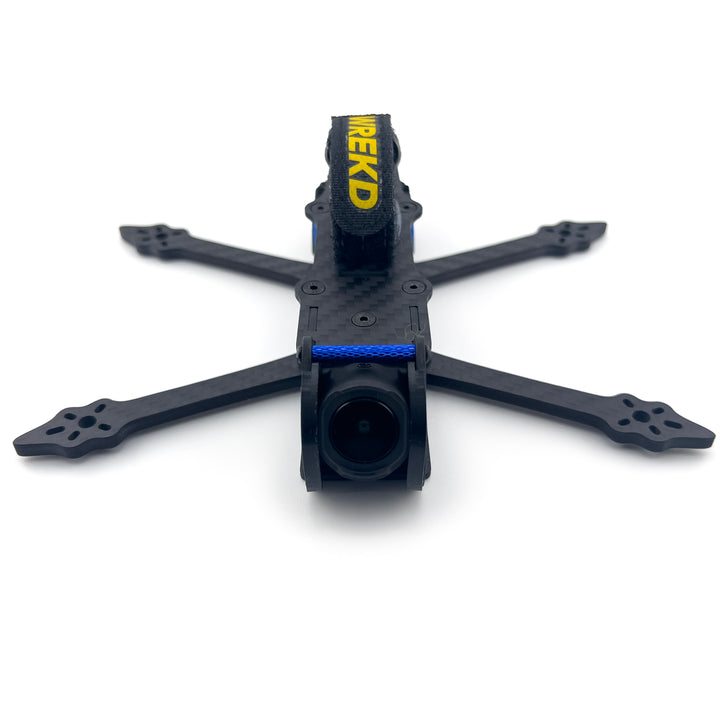

The Vannystyle Mini Frame Kit is an ultra tiny version of the legendary Vannystyle Pro frame, designed specifically for 3.5" props. With the DJI O4 camera on board, this is the perfect little cinema drone or a great neighborhood backyard ripper! Built for those who want extreme agility and control without sacrificing durability or flight feel. The Vannystyle Mini offers exceptional flight performance in a compact, lightweight frame.

Choose between the Universal Camera Plates (DJI O3, Analog, Walksnail, etc.) or the DJI O4 Pro Camera Plates.

Great video from @Spider Sugar_FPV!

Another great tutorial by @TalonFPV

Recommendations

Do not use heavy motors on the arms as this will negatively affect flight performance.
We're recommending smaller motors like 1604 or 1606 currently.

Flight Controller (20x20)



4-in-1 ESC:



AIO

 Motors:

As folks build out their own builds, we will be updating the recommendations list.

Available Accessories

Your Way Add-on Kit

View More Details about Vannystyle Mini Your Way Add-on Kit

3D Printed Parts

Specifications

    • Material: 3K Twill Carbon Fiber
    • Prop Size: 3.5"
    • Motor Mount: 9mm x 9mm or 12mm x 12mm
    • Top Plate Thickness: 2mm
    • Bottom Plate Thickness: 2mm
    • Arm Thickness: 4mm
    • Camera Plate Thickness: 2mm
    • CamWiggle Thickness: 1.5mm
    • Mid Plate Thickness: 1.5mm
    • Stack Size: 20x20 or 25.5x25.5

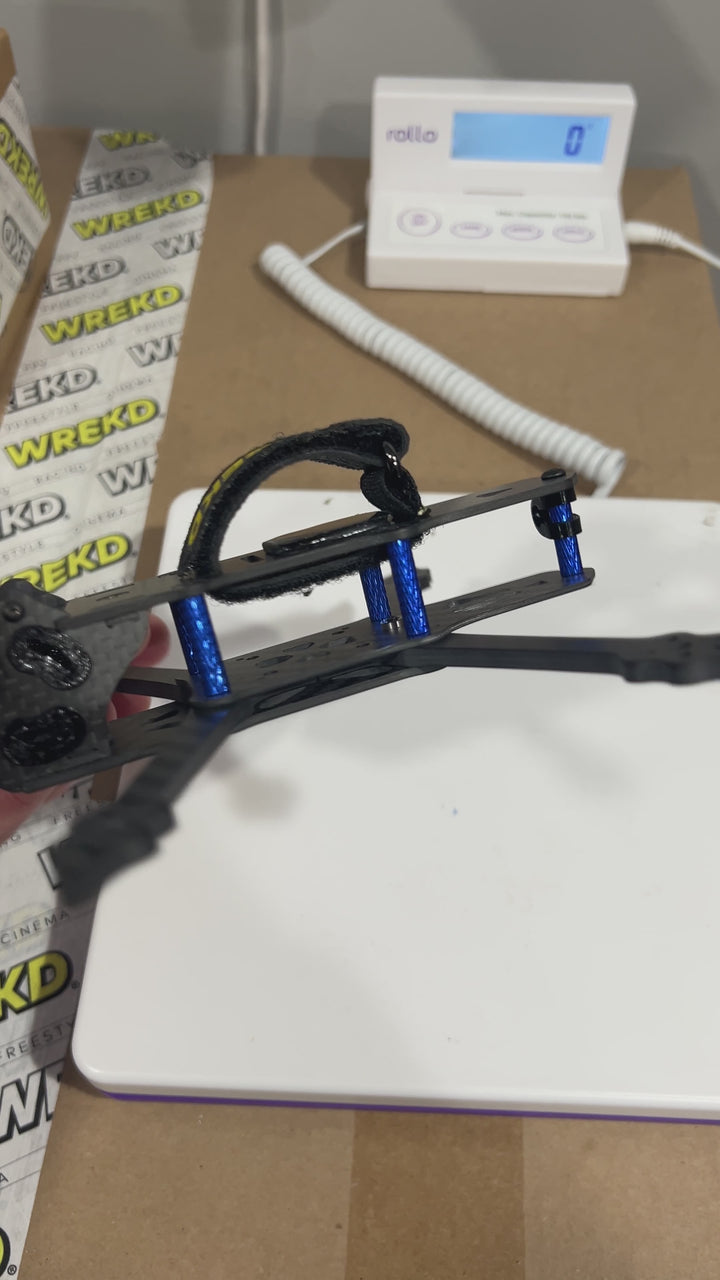

    • Weight:



    • 72g: With Battery Strap, Battery Pad, TPU Antenna Mount, Camera Inserts
    • 250g: Fully built with Battery, WREKD Standard Issue Strap, KISS Ultra V2 Mini, ESC, DJI O4 Pro, Motors,  Props, etc.
      Your weight may vary depending on build decisions.

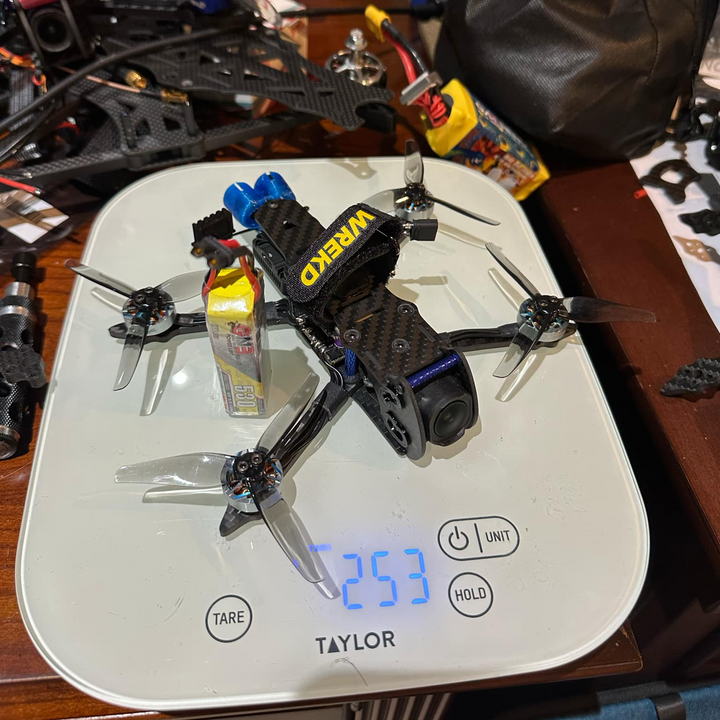

      Alex's build is sitting at 253g with the BEAST strap. Would be at 250g with Standard Issue strap.

Includes

DJI O4 Version

  • 1 x Frame Kit
    • 1 x Bottom Plate
    • 2 x Cam Brace Plates
    • 1 x Mid Plate
    • 1 x Top Plate
  • 2 x Camera Plates (O4)
  • 1 x Arm Kit (Includes 5 arms)

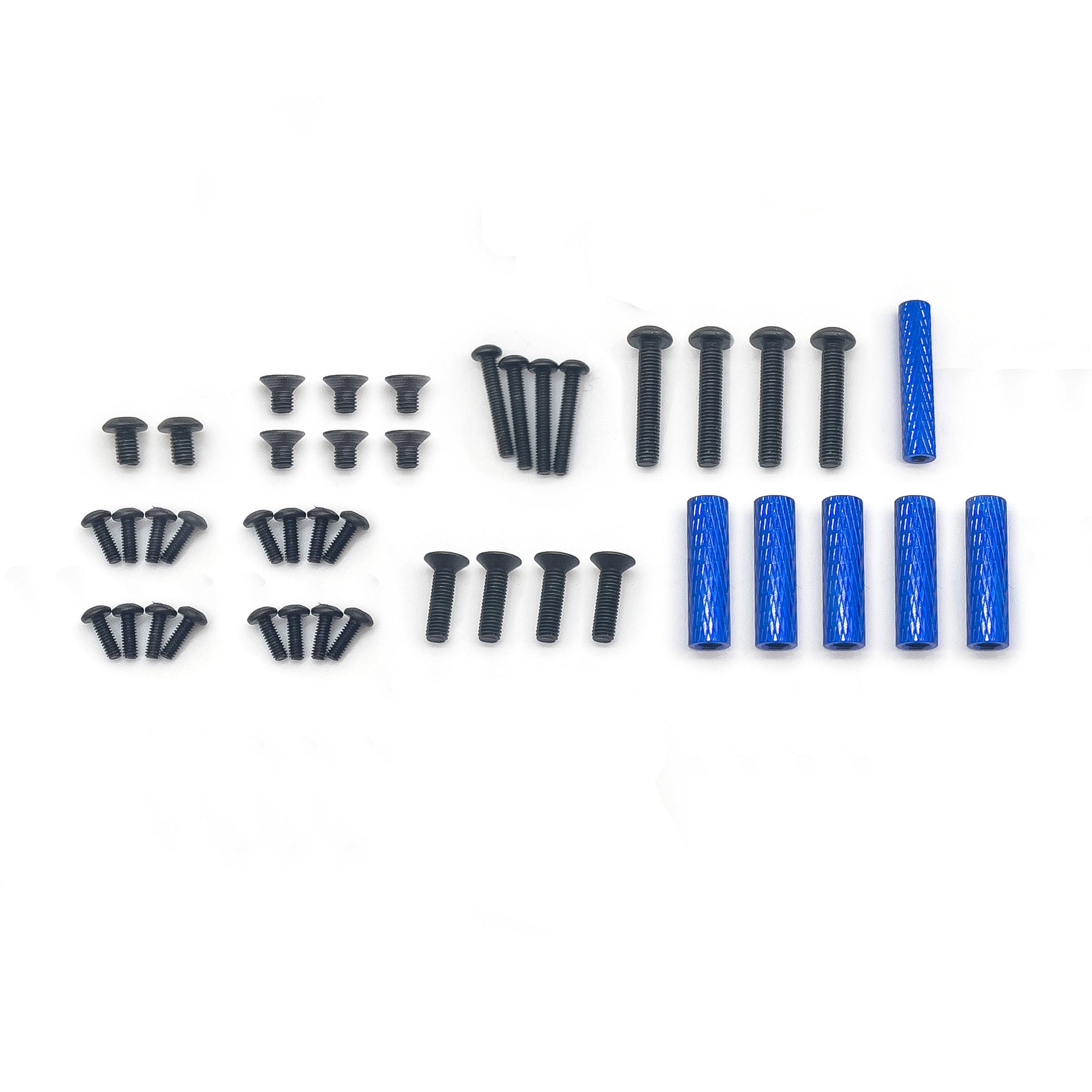

  • Hardware Kit
    • 1 x M2 x 23mm Aluminum Standoff (Dark Blue)
    • 5 x M3 x 20mm Aluminum Standoffs (Dark Blue)
    • 3 x M3 x 5mm Steel Countersunk Screws
    • 2 x M3 x 10mm Steel Countersunk Screws
    • 4 x M3 x 12mm Steel Countersunk Screws
    • 5 x M3 x 5mm Steel Button Head Screws
  • TPU Kit (7pcs)
    • 4 x TPU Cam Plate Inserts
    • 2 x TPU Cam Protector Inserts (optional)
    • 1 x TPU Dual Antenna Mount
  • 1 x WREKD® Standard Issue Battery Strap - 180 x 12.5mm
  • 1 x Diamond File For Perfect Fitment
  • 1 x Ummagrip Lite Battery Pad (1" x 1")

O3 / Universal Version

  • 1 x Frame Kit
    • 1 x Bottom Plate
    • 2 x Cam Brace Plates
    • 1 x Mid Plate
    • 1 x Top Plate
  • 2 x Camera Plates (O3/Universal)
  • 1 x Arm Kit (Includes 5 arms)
  • Hardware Kit
    • 1 * M2 x 23mm Aluminum Standoff (Dark Blue)
    • 5 * M3 x 20mm Aluminum Standoffs (Dark Blue)
    • 6 * M3 x 5mm Steel Countersunk Screws
    • 2 * M3 x 6mm Steel Buttonhead Screws
    • 4 * M3 x 12mm Steel Buttonhead Stack Screws
    • 5 * M3 x 5mm Steel Button Head Screws
    • 16 * M2 x 6mm Steel Button Head Motor Screws
  • TPU Kit (7pcs)
    • 2 x TPU DJI O3 Inserts
    • 2 x TPU Analog / Universal Inserts
    • 2 x TPU Cam Protector Inserts
    • 1 x TPU Folding Antenna Mount for O3 / Universal version
  • 1 x WREKD® Standard Issue Battery Strap - 180 x 12.5mm
  • 1 x Diamond File For Perfect Fitment
  • 1 x Ummagrip Lite Battery Pad (1" x 1")

Customer Reviews

Based on 22 reviews
82%
(18)
9%
(2)
5%
(1)
0%
(0)
5%
(1)
B
Brett
Great 3.5" frame

https://youtu.be/xVBAHnXUcpk?si=-X80NI5e9ZMo7phN

The frame is really high quality and very easy to assemble. Flight feels like the Apex Evo.

A
Alex
Great 3.5 inch Frame

I built mine out with an 03 air unit, Flywoo F722 mini stack and HGLRC 1804 2450 kv motors. This a 6s ripper. It tracks very well and is locked in. I couldn't be happier. Next is the Vannystyle Pro. Thank you.

C
Conner Collins
So stable and powerful

I got off the sim(liftoff) expecting to suck and the drone was easier to fly.
Foxeer mini
Hobby king micro
1606 motors
Gnb 650mah 4s lihv

S
Sean
Nice Frame

This thing kicks ass. Super stable and smooth. I started from whoops and made my way up to the vannystyle mini and I couldn’t be happier with this build. It makes me think of the fractal f75 but you know…a lot bigger and a lot more power 🤣. I’m running FlashHobby Arthur 1506s at 4300kv for 4s. 🤘 Awesome Frame!

j
just.in.flipflops
Nearly perfect

I haven't ripped it properly yet, but I presume it'll fly great. Overall everything is perfect except one thing. Mind your ESC/stack size. I went 20x20 stack, but the ESC only fits turned 90 degrees and is still pretty tight for wiring in the motors. Seems like maybe the whole frame could benefit from being a tad wider and then stretch the 4 center stand offs further out(in all directions). This would give a better base for the o4 unit and more space for larger ESCs. Granted it might add some weight to the frame it self, but that might be able to get regained elsewhere.
