FIRSTLEGENDS at checkout.Slot.it HRS2 Anglewinder RTR Chassis
1/32 Scale Analog Slot Car

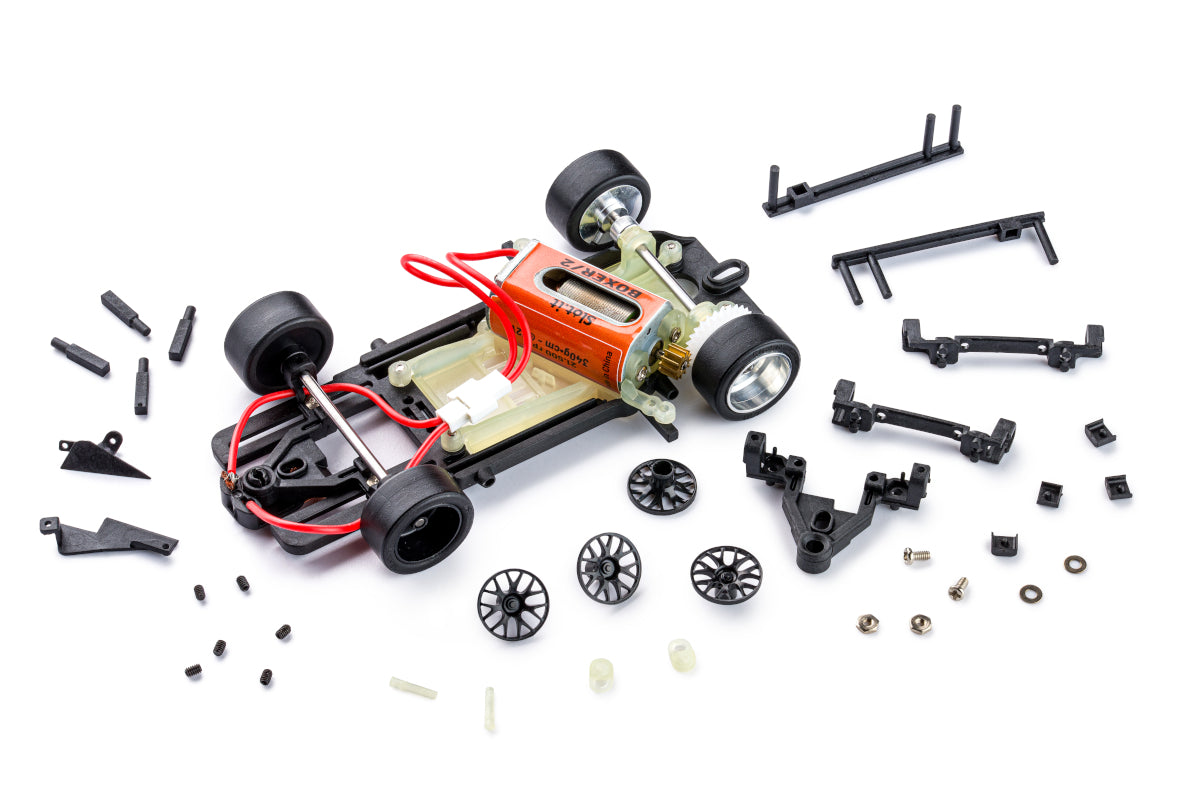

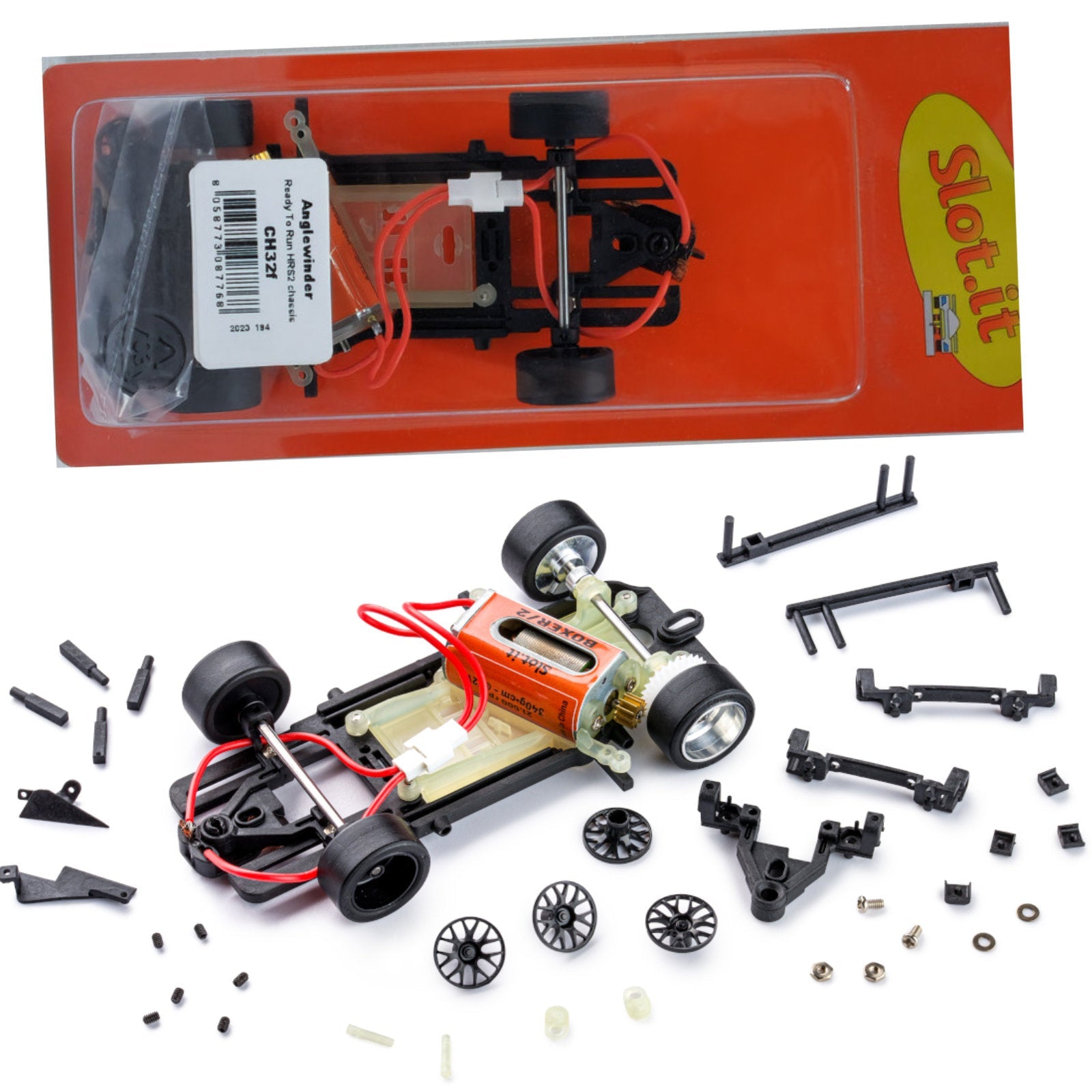

Slot.it HRS2 complete and ready to run adjustable racing chassis to mount onto a wide range of slot car bodies.
Chassis Data
Adjustable wheelbase: 64mm-90mm
Adjustable wheel width: 60.6mm-64mm
Height: 19mm
Chassis Features
21,500 rpm Boxer motor (340 g*cm @ 12V)
anglewinder configuration with 12/28 gear ratio
56-61mm axle width
64-90mm wheelbase length
19mm height
17.3 x 8.2mm front wheels
17.3 x 9.75mm rear wheels
no magnet included
HRS Chassis
The HRS chassis is a fully configurable, universal plastic chassis for slot cars. It comprises four main parts: main chassis, front chassis, motor mount, and body mounting means.
Adjustable Wheelbase
The front chassis can be positioned freely within a wheelbase between 64 and 90mm.
Selectable Front Axle Position
The front axle can be placed in one of two possible positions, one of which completely adjustable, making it easy to adjust the distance from the pickup.
Flexible Assembly System
The chassis and the body can be joined with either four mounting posts and cups (HRS1 style), two three-posts sidebars, or, on some cars, where possible, with the car’s own screw holes.
