FIRSTLEGENDS at checkout.Slot.it HRS2 Anglewinder RTR Chassis 1mm Offset
1/32 Scale Analog Slot Car

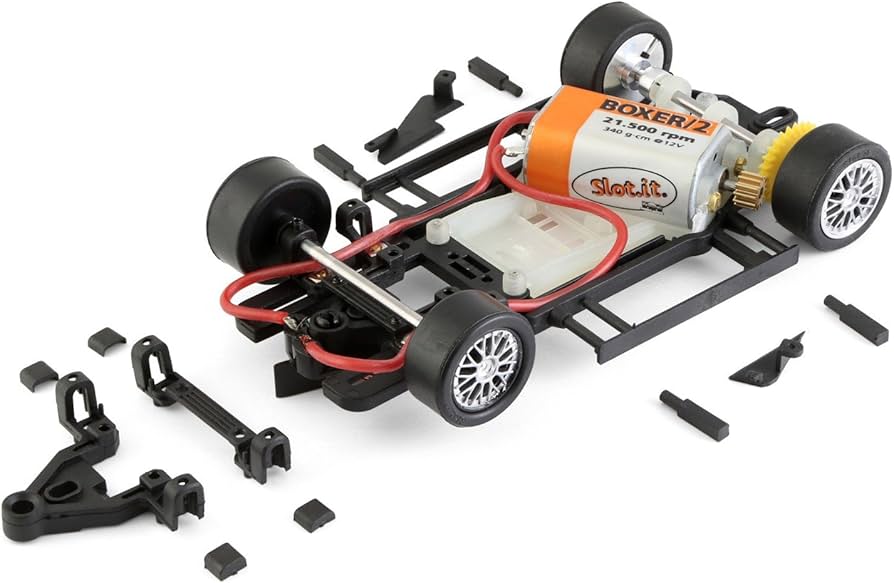

Slot.it HRS2 complete and ready to run adjustable racing chassis to mount onto a wide range of slot car bodies.
Chassis Data
Adjustable wheelbase: 64mm-90mm
Adjustable wheel width: 60.6mm-64mm
Height: 19mm
Chassis Features
New anglewinder gear 28t (SIGA1628-PL)
New rear aluminum wheels 17.3x9.75mm (SIPA62-ALS)
Plastic front wheels 17.3x8.2mm
1167C1 rear tires
1045C1 front tires
Long-Can 21,500rpm Boxer/2 motor
Pickup guide (SICH66)
12t brass pinion
1mm offset anglewinder motor mount
Rear axle stopper
Adjustable front axle ride height
Body to chassis cups
Wheel inserts
HRS Chassis
The HRS chassis is a fully configurable, universal plastic chassis for slot cars. It comprises four main parts: main chassis, front chassis, motor mount, and body mounting means.
Adjustable Wheelbase
The front chassis can be positioned freely within a wheelbase between 64 and 90mm.
Selectable Front Axle Position
The front axle can be placed in one of two possible positions, one of which completely adjustable, making it easy to adjust the distance from the pickup.
Flexible Assembly System
The chassis and the body can be joined with either four mounting posts and cups (HRS1 style), two three-posts sidebars, or, on some cars, where possible, with the car’s own screw holes.
