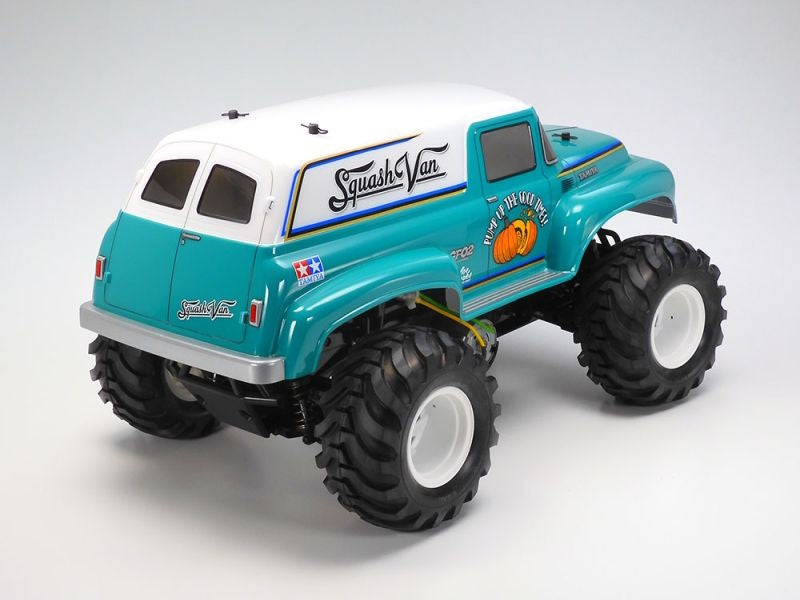

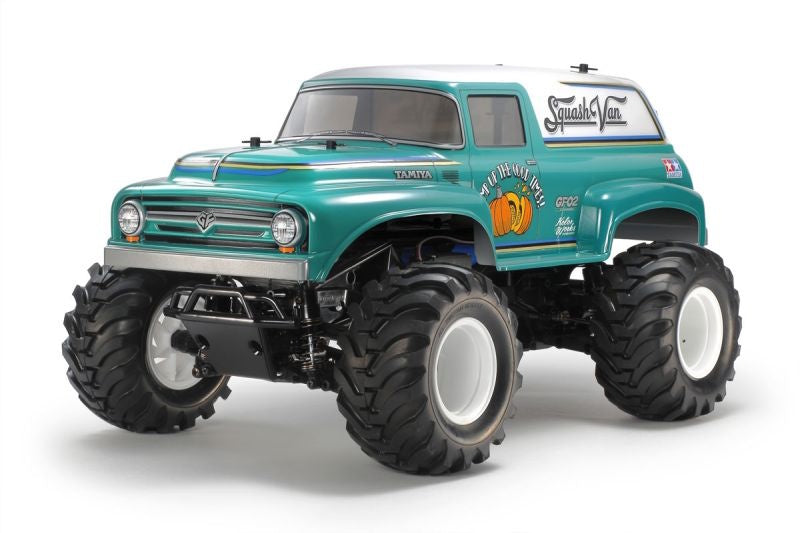

RC Squash Van, GF-02 Green/White Painted Body
The Squash Van is a fun-to-drive big tire vehicle that is inspired by 1950's American panel vans. The polycarbonate body shell sits on top of the gear-driven 4WD GF-02 chassis, which is a variant of the comical GF-01. While the GF-01 chassis features a comical design, the GF- 02 chassis employs a more realistic wheelbase and a frame with ladder and pipe motifs.
This Limited-Edition version of the kit includes the body which is pre-painted in Cobalt Green (PS-54) with White (PS-1) roof and Smoke (PS-31) windows, pre-cut wheel arches and pre-made body mount holes, which is great for not only beginners but also R/C veterans.
GF-02 chassis
The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensure stable off-road performance. The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods.
Includes:
540 brushed type motor
ESC
Required to Complete:
2-Channel radio
Steering servo
7.2-7.4volt battery with compatible charger
The body requires cutting out, application of stickers and other work.
Features:
V-Block pattern Block Tires 122.8mm diameter.
Gear Ratios: 18T (18.03:1), 20T (16.23:1), 17T (19.09:1) Kit is supplied with 18 tooth pinion gear.
4WS-four-wheel steering compatible with separately sold third-party 4WS function radio.
Body post position same as long wheelbase CC-02 chassis.
Specifications:
1/10 R/C assembly kit
Wheelbase: 267 mm
Front/Rear tread: F: 223mm / R: 221mm.
