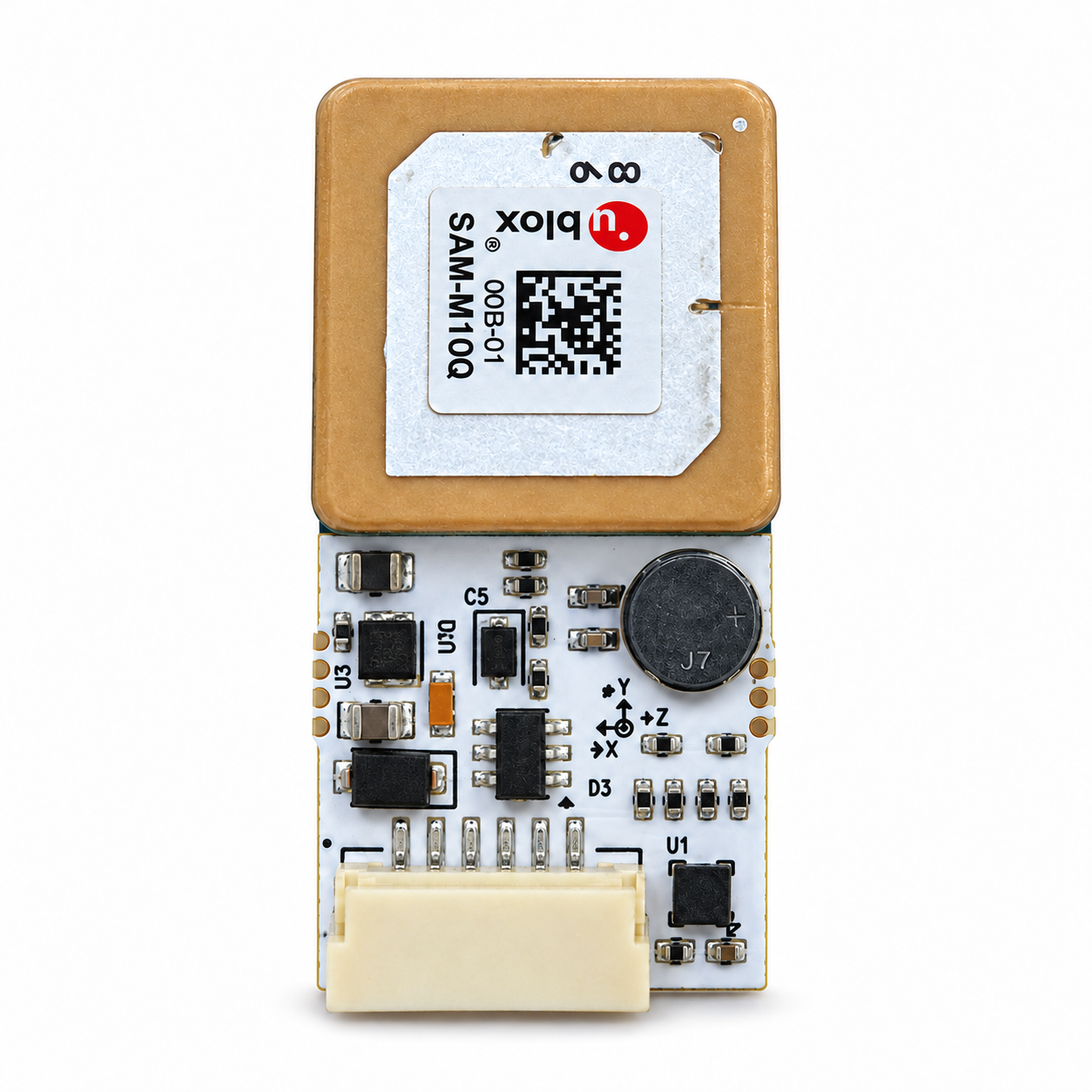

Front view of the WREKD MINI GPS SAM-M10Q module with compass on a white background

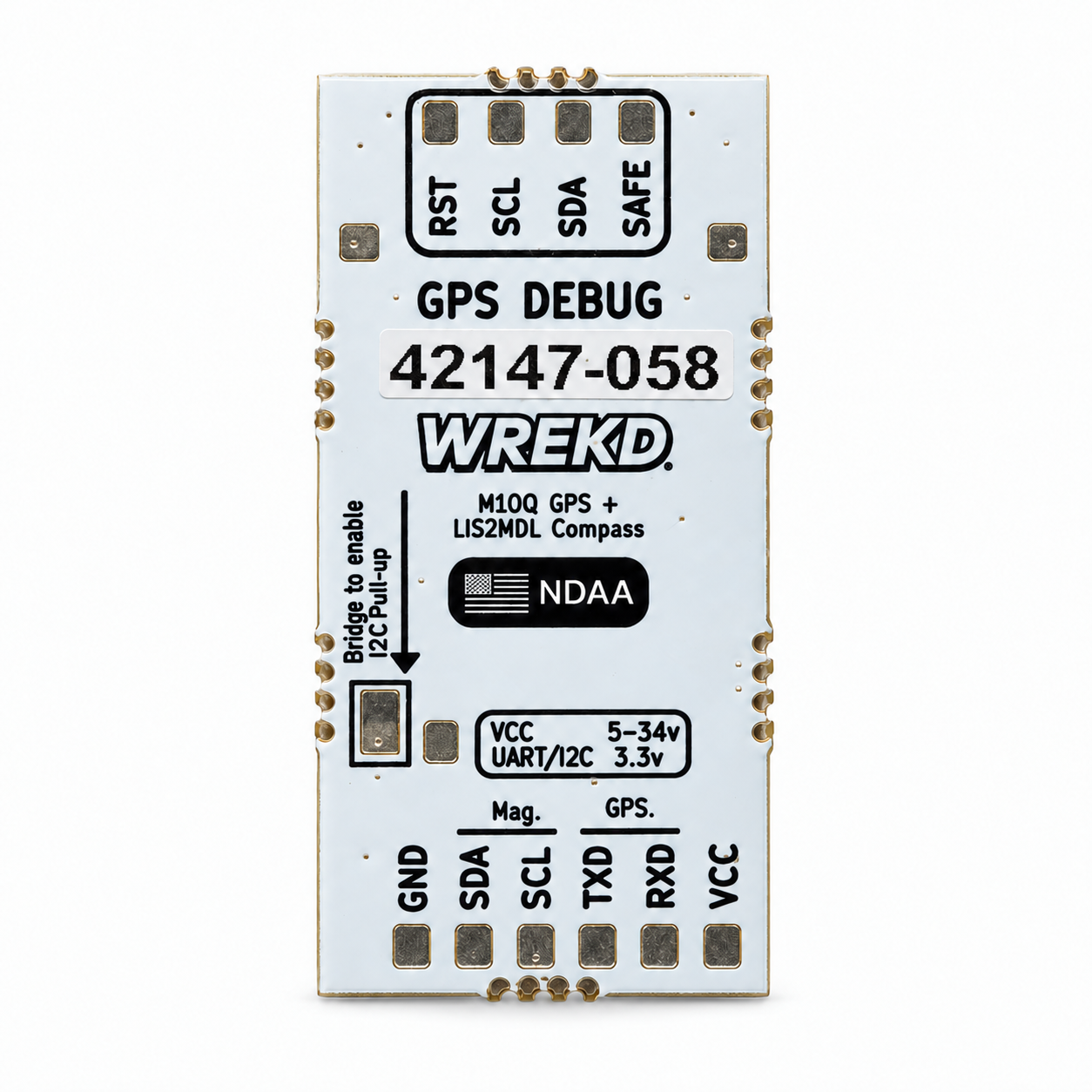

Back view of the WREKD MINI GPS showing the WREKD logo and connection labels on a white background
SAVE 5% OFF YOUR FIRST ORDER
Use discount code FIRSTLEGENDS at checkout.

EXCLUSIVE DISCOUNTS AVAILABLE
Military, First Responders & Students
Learn More

Precio habitual $108.85
/
  • In Stock
NOTE: This item is on pre-order. Estimated to ship in 0 to 1 days.

WREKD® MINI GPS – SAM-M10Q Module with Compass

$108.85
  • Ships from: WREKD Warehouse, Ohio, United States
    Learn about our Shipping and Return Policy

Earn 108 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

The WREKD® MINI GPS combines a u-blox SAM-M10Q GPS receiver and LIS2MDL compass in a compact, 8 g module. At just 32.5 × 16 × 8 mm, it fits FPV builds where space and weight matter.

A 5–34 V input range gives you flexible power options, while the Pixhawk Basic GPS connector layout and separate solder pads offer two ways to wire it into your build.

Features

  • u-blox SAM-M10Q GPS receiver with onboard LIS2MDL magnetometer
  • Reverse-polarity protection and ESD-protected 3.3 V logic
  • Red/green status LEDs and time-pulse indicator
  • Connector and solder-pad connections for GPS and compass

Specifications

  • GPS Receiver: u-blox SAM-M10Q
  • Magnetometer: LIS2MDL
  • Input Voltage: 5–34 V
  • Logic Level: 3.3 V, ESD-protected
  • Compass I²C Address: 0x1E
  • Connector Pinout: Pixhawk Basic GPS
  • Reverse-Polarity Protection: Yes
  • Dimensions: 32.5 × 16 × 8 mm
  • Weight: 8 g

Important Notes

  • Use compatible flight-controller firmware with support for the GPS receiver and LIS2MDL magnetometer.
  • Verify the connector pinout and power supply before connecting.
  • JST wiring harness is not included in this release.
    Please expect to solder your GPS or source your own wiring harness.
    We will have a harness included very soon.

Includes

  • 1 x WREKD® MINI GPS – SAM-M10Q Module with Compass
