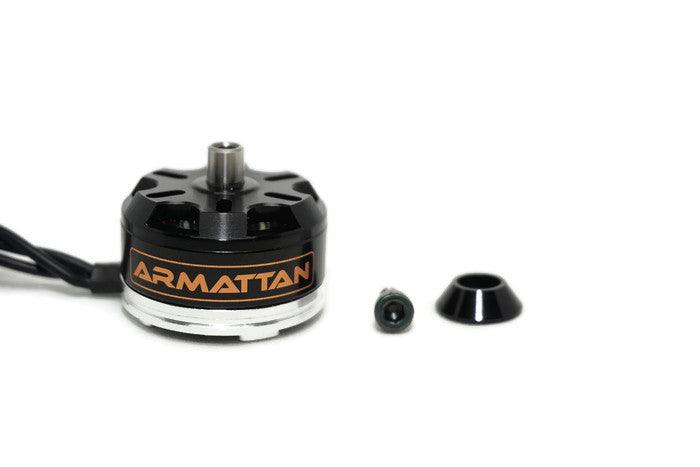

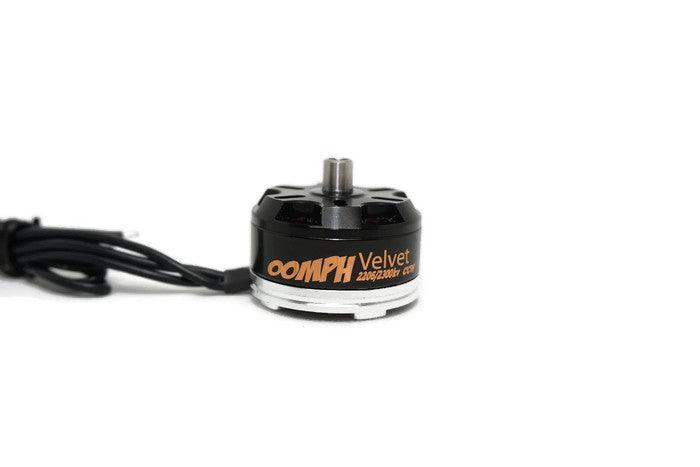

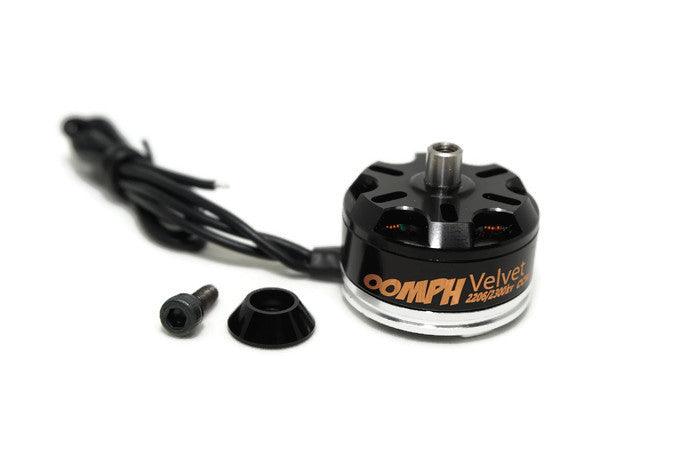

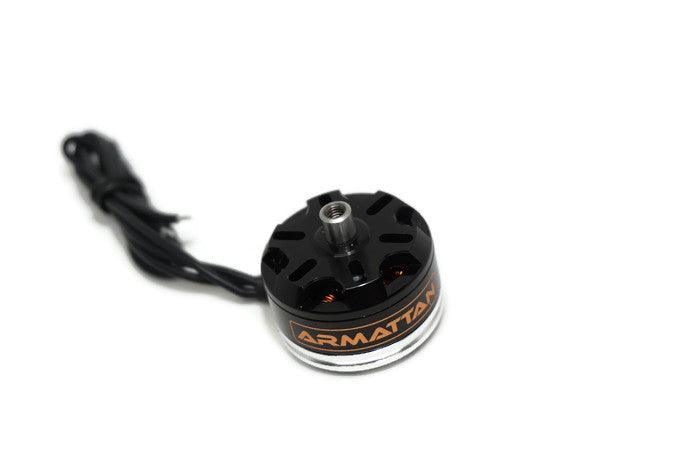

FIRSTLEGENDS at checkout.Armattan Oomph Velvet Edition 2206 2300 KV Motor - CW or CCW
|
|
|
Motor Specifications |
|
|
Stator Diameter |
22mm |
|
Stator Height |
6mm |
|
KV (rpm/Volt) |
2300 |
|
Weight |
Around 29 grams with trimmed wires |
|
Recommended Props |
5 or 6 inch |
|
LiPo Compatibility |
3-4S |
|
Prop Mount Height |
5mm |
|
Prop Mount Diameter |
5mm |
|
Interior Threading |
CW or CCW |
|
Magnets |
N54H magnets |
|
Stator Laminations |
Laminated for smoothness |
|
Winding |
Single Wire |
|
Bearing |
684 NSK 4x9x4 |
|
|
|
Armattan
Velvet Edition
Introducing the latest addition to the Armattan Oomph line of motors.
The construction of these motors was carefully selected with smoothness in mind. A lot of motors offer insane performance these days, but that usually comes with multiple drawbacks. High amp draw is the first concern. Noise and vibrations making tuning a more tedious task is another concern. And of course, if you have noise on your build, or if it is not well tuned, it affects HD footage greatly.
In other words, really high output motors are not suited for freestyle flying. They are better for racing. Flights are too short and the footage is only "OK."
-Low amp draw. Check!
-Low noise. Check!
-Low vibration. Check!
Results: Easy to tune, smooth as butter, and crisp HD footage. No less.
