Name: BetaFPV F4 1S 5A Toothpick/Whoop Flight Controller - Choose Version
Brand: BetaFPV
SKU: sku-40069230231665
Price: 58.34 CAD
Availability: OutOfStock

BetaFPV F4 1S 5A Toothpick/Whoop Flight Controller - Choose Version at WREKD Co.

SAVE 5% OFF YOUR FIRST ORDER
Use discount code FIRSTLEGENDS at checkout.

EXCLUSIVE DISCOUNTS AVAILABLE
Military, First Responders & Students
Learn More

Price

Ask us a question

Selected warehouse

Ohio, United States Sold Out

Florida, United States Sold Out

Style

ELRS 3.0 Line Antenna

Frsky SPI Line Antenna

Quantity

NOTE: This item is on pre-order, which means it will ship very soon. This typically ranges from 3 to 7 days.

BetaFPV F4 1S 5A Toothpick/Whoop Flight Controller - Choose Version

$58.34

Earn 58 CaveCoin by purchasing this item.

Log In or Sign Up to start earning on your next order.

[{"id":47532647285040,"title":"ELRS 3.0 Line Antenna","option1":"ELRS 3.0 Line Antenna","option2":null,"option3":null,"sku":"sku-40069230231665","requires_shipping":true,"taxable":true,"featured_image":{"id":44150805004592,"product_id":8936230388016,"position":1,"created_at":"2024-02-08T20:40:25-05:00","updated_at":"2024-12-18T04:28:48-05:00","alt":"BetaFPV F4 1S 5A Toothpick\/Whoop Flight Controller - Choose Version at WREKD Co.","width":720,"height":720,"src":"\/\/ca.wrekd.com\/cdn\/shop\/products\/betafpv-f4-1s-5a-toothpickwhoop-flight-controller-choose-version-109557.webp?v=1734514128","variant_ids":[47532647285040,47532647317808]},"available":false,"name":"BetaFPV F4 1S 5A Toothpick\/Whoop Flight Controller - Choose Version - ELRS 3.0 Line Antenna","public_title":"ELRS 3.0 Line Antenna","options":["ELRS 3.0 Line Antenna"],"price":5834,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"BetaFPV F4 1S 5A Toothpick\/Whoop Flight Controller - Choose Version at WREKD Co.","id":36563279479088,"position":1,"preview_image":{"aspect_ratio":1.0,"height":720,"width":720,"src":"\/\/ca.wrekd.com\/cdn\/shop\/products\/betafpv-f4-1s-5a-toothpickwhoop-flight-controller-choose-version-109557.webp?v=1734514128"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47532647317808,"title":"Frsky SPI Line Antenna","option1":"Frsky SPI Line Antenna","option2":null,"option3":null,"sku":"sku-40069230264433","requires_shipping":true,"taxable":true,"featured_image":{"id":44150805004592,"product_id":8936230388016,"position":1,"created_at":"2024-02-08T20:40:25-05:00","updated_at":"2024-12-18T04:28:48-05:00","alt":"BetaFPV F4 1S 5A Toothpick\/Whoop Flight Controller - Choose Version at WREKD Co.","width":720,"height":720,"src":"\/\/ca.wrekd.com\/cdn\/shop\/products\/betafpv-f4-1s-5a-toothpickwhoop-flight-controller-choose-version-109557.webp?v=1734514128","variant_ids":[47532647285040,47532647317808]},"available":false,"name":"BetaFPV F4 1S 5A Toothpick\/Whoop Flight Controller - Choose Version - Frsky SPI Line Antenna","public_title":"Frsky SPI Line Antenna","options":["Frsky SPI Line Antenna"],"price":5834,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"BetaFPV F4 1S 5A Toothpick\/Whoop Flight Controller - Choose Version at WREKD Co.","id":36563279479088,"position":1,"preview_image":{"aspect_ratio":1.0,"height":720,"width":720,"src":"\/\/ca.wrekd.com\/cdn\/shop\/products\/betafpv-f4-1s-5a-toothpickwhoop-flight-controller-choose-version-109557.webp?v=1734514128"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

About this item

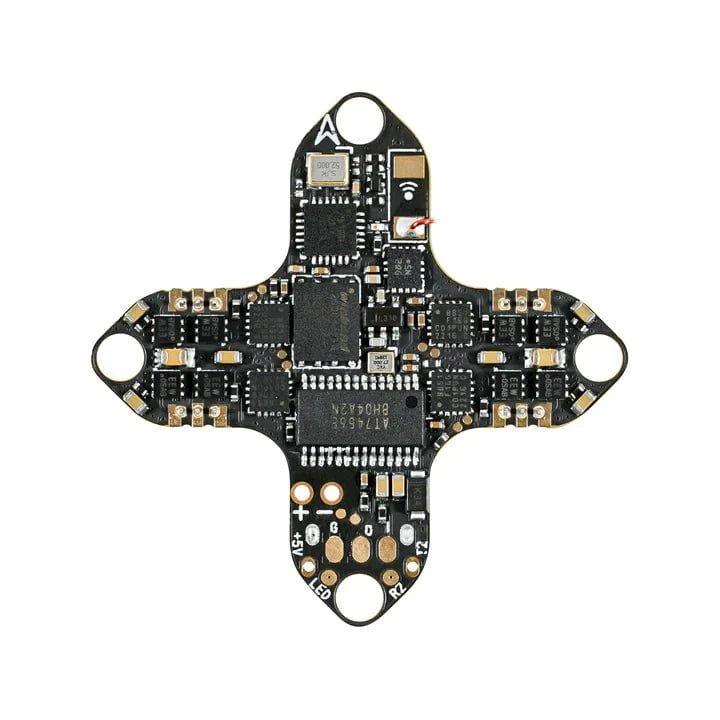

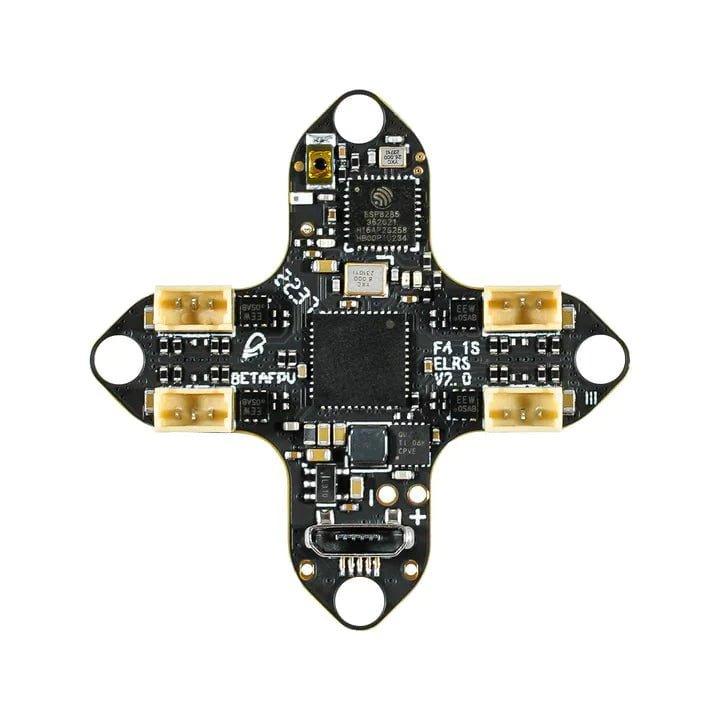

The ultralight F4 1S 5A AIO Brushless Flight Controller is back in stock with new and upgraded features. Compared to the previous version, the new board uses Serial ExpressLRS 2.4G instead of SPI ELRS 2.4G so that it can support ExpressLRS V3.0 and also has a Frsky RX version to choose from. We updated the FC with high-quality BMI270 gyro and BB51 ESC hardware. In addition, this new board supports the Betaflight Blackbox function.

Check out all our whoop flight controllers, and all our BetaFPV gear!

Specifications

CPU: STM32F411CEU6 ( 100MHZ )
Six-Axis: BMI270
Built-in Receiver: Serial ExpressLRS 2.4G / Frsky SPI
Receiver antenna: Line antenna
Size: 30mm x 30mm, fully mounting pattern compatible with the whoop frame in the current market
Firmware version: betaflight_4.3.1_BETAFPVF411
OSD: Built-in BetaFlight OSD
Recommend VTX:
Power Cable: 55mm, with BT2.0 connector

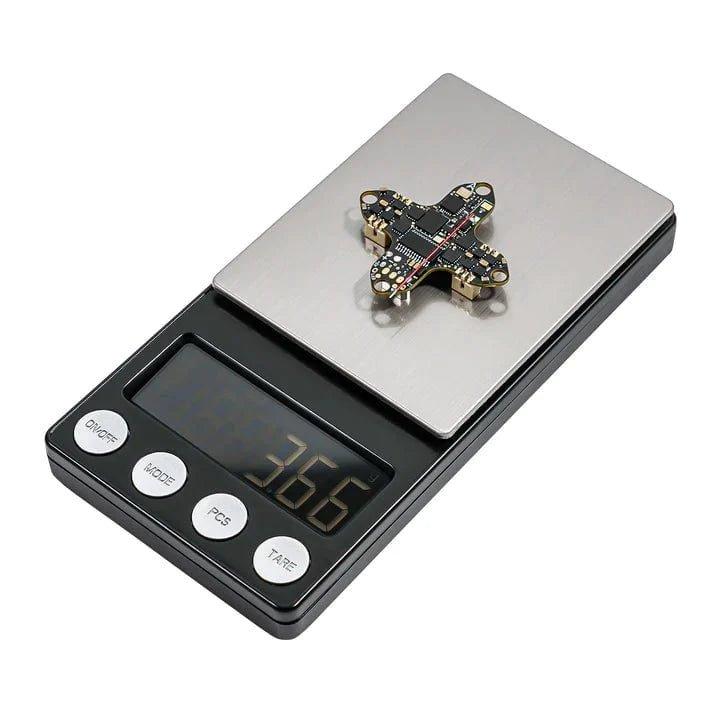

Weight: 3.6g (Without power cable included)

Power supply: 1S
Current: 5A continuous and peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: A_X_5_.HEX for BB51 BLHeli_S hardware
Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

Includes

1x BetaFPV F4 1S 5A Toothpick/Whoop Flight Controller - Choose Version
4x M1.2x4mm Screws
4x M1.4x5mm Screws
4x Anti-vibration Rubber Dampers

Wiring Diagram
