Castle Creations4-Pole 1406-3800kV Brushless Sensored Rock Crawler Motor

Castle Creations 060-0071-00 4-Pole 1406-3800kV Brushless Sensored Motor

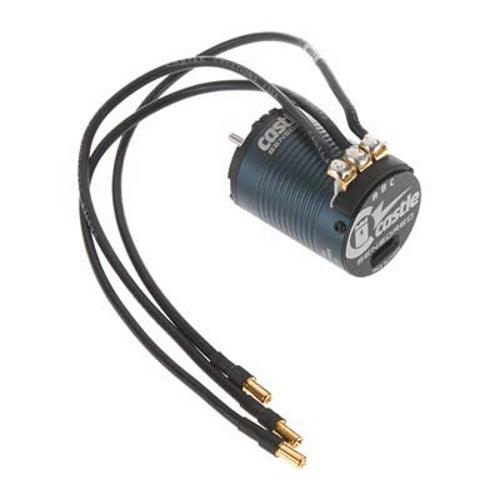

This is the Castle Creations 1406-3800Kv Brushless Sensored Motor.

Features:
Ideal for 1/10 scale low speed rock crawlers and trail runners
weighing less than 8lbs (3.62kg) and powered by 2-3S LiPo
batteries with appropriate gearing
ROAR standard sensor port and labeled connections
SMARTSENSE uses sensors to provide smooth starts, excellent torque
and low speed driveability
CNC machined 6061-T6 aluminum can, slate gray in color
High performance 0.2mm steel lamination stacked stator
High strength 180°C grade neodymium sintered magnets with Kevlar wrap
Oversize NMB grade ball bearings
Rebuildable

Includes:
1406-3800Kv Brushless Sensored Motor with Sensor Wire
Three 4mm Female Castle Bullet Connectors

Requirements:
ESC such as the Castle Creations Mamba Max Pro, Mamba X and Mamba
Micro X

Specs:
Input Voltage Range: 2-3S LiPo
Kv Rating: 3800
Max RPM: 100.000
Can Length: 1.9" (49.5mm)
Can Diameter: 1.4" (36mm)
Weight: 6.9oz (197g) with wires
Shaft Diameter: 1/8" (3.17mm)
Shaft Length: 0.59" (15mm)
Mounting Hole Specifications: M3 @ 25mm
Wire Lead: Castle 13 AWG silicone insulated wire
Connectors: 4mm male Castle Bullet Connectors
