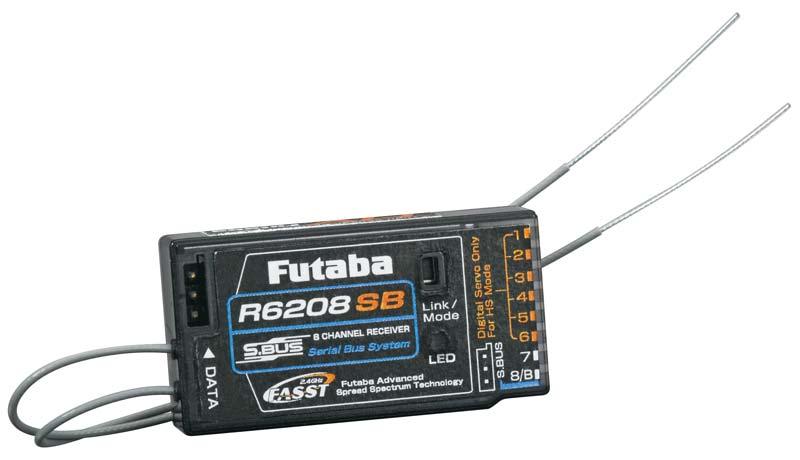

Futaba R6208SB 8-Channel 2.4GHz FASST Hi-Voltage Receiver

Futaba 8-Channel 2.4GHz FASST Hi-Voltage Rx

Description:

• This is the Futaba R6208SB 2.4GHz FASST S.Bus 8-Channel High Voltage Receiver.

Features:

• Utilizes digital serial data communication technology to transmit control signals between the receiver and servos using S.Bus hubs and cables (available separately)
• Easy programming with the SBC-1 Channel Setting Tool (FUTM4190), S-Bus receivers or PCLink software
• SBD-1 decoder cables (not included) allow the use of existing analog and digital servos
• Handles eight channels without S.Bus usage or as many as the available number of channels on transmitter with S.Bus use
• Prevents mismatched servo/channel connections
• Full-range receiver with DAD (Dual Antenna Diversity) that can be used in any flight application
• One year limited warranty through Hobby Services beginning at date of purchase

Includes:

• Futaba R6208SB 2.4GHz FASST 8-Channel Receiver with Instructions and Short Plug for connection the DATA port when an S.Bus channel is set

Specs:

• Power Requirement: 3.7V or 7.4V battery or regulated output from ESC* *output capacity must meet usage condition
• Voltage Range: 3.5 - 8.4V
• Dimensions: 0.98 x 1.86 x 0.56" (24.9 x 47.3 x 14.3mm)
• Weight: 0.49oz (13.8g)
