Unify Pro32 DP VTX for Analog Video System - NDAA

$84.68

Earn 84 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

NDAA Compliant Product Made in USA

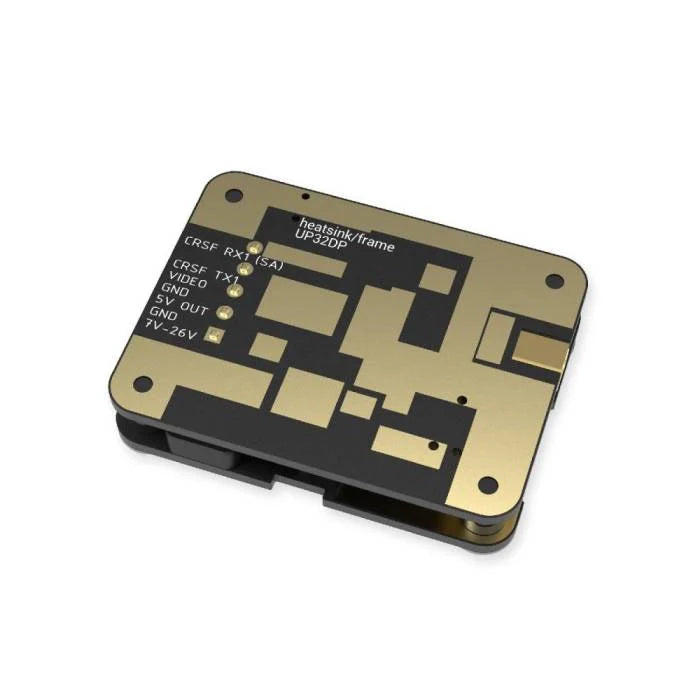

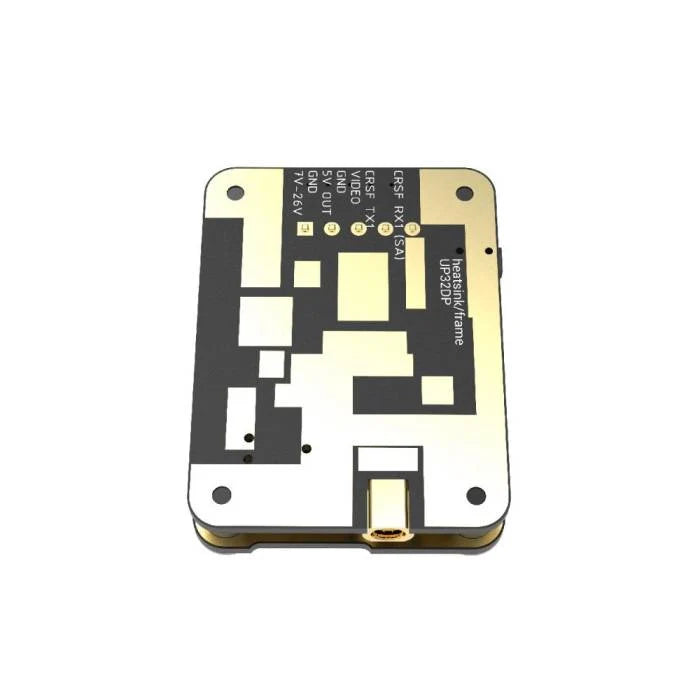

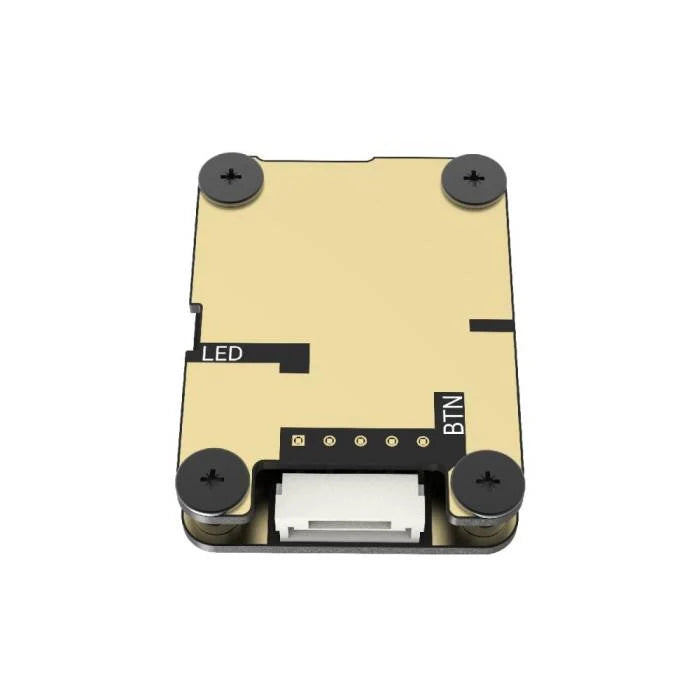

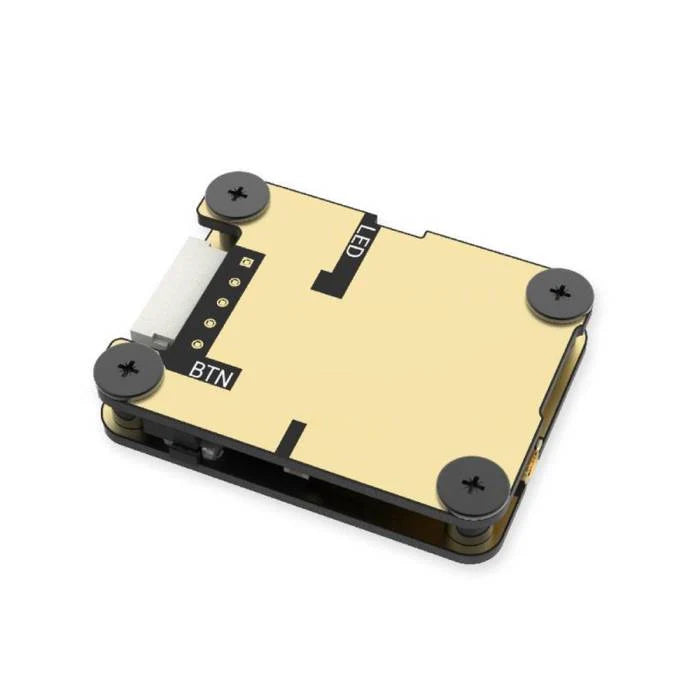

The TBS UNIFY PRO32 DP with an MMCX connector is a high-quality video transmitter (VTX) designed for use in FPV drones. It features improved robustness, decreased size, and reduced power consumption. Enhanced performance and durability are achieved through advanced heat dissipation, which requires no additional heatsink or fan.

Features

  • Optimized Heat Dissipation
  • Double Noise Filtering
  • Optional Accessory
  • Lightweight Design
  • OSD Configuration
  • One-Button Setup
  • 2-6S Input Voltage
  • NDAA Compliant
  • MMCX Connector
  • Frequency Range
  • LUA Support

Specifications

  • Output Power: 25mW-3W
  • Operating Voltage: 6V - 25V (2 - 6S)
  • Video Input Impedance: 75 Ohm
  • Dimensions: 37 x 28 x 10 mm
  • Antenna Connector: MMCX
  • Video Format: NTSC/PAL
  • NDAA Compliant: Yes
  • SNR: >63 dBm
  • Weight: 8.7 g

Includes

  • 1x TBS Unify Pro32 DP VTX - NDAA
  • 1x Hardware Set
