Regular price $21.16 Sale price $20.11
/
NOTE: This item is on pre-order, which means it will ship very soon. This typically ranges from 3 to 7 days.

NewBeeDrone Mosquito XL Frame

$20.11

Earn 20 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

NewBeeDrone Mosquito XL - 65mm Propeller Whoop Frame Miskito

Designed to drop-in your existing whoop electronics, the Mosquito XL transforms your whoop into an outdoor nano beast!

With 65mm props the Mosquito flies like a 3 inch toothpick but at a lighter weight and smaller form factor.

We recommend using the BeeBrain BLV3 AIO and Gold 0802 18000KV motors with 1s batteries. While designing the Mosquito XL, we found that the 0802 motors provide plenty of power while keeping the weight low.

Note: The frame does not accept the mounting of larger motors. If your existing whoop motors have wires that are too short, solder on the included motor wires. When doing so, check that the solder joints are not coming into contact with the carbon fiber frame.

    Specifications

    • Carbon Weight: 7.5g
    • Carbon Fiber Thickness: 2.5mm
    • Carbon + Battery Mounting Weight: 8.0g
    • Motor to Motor Diagonal Distance: 104mm

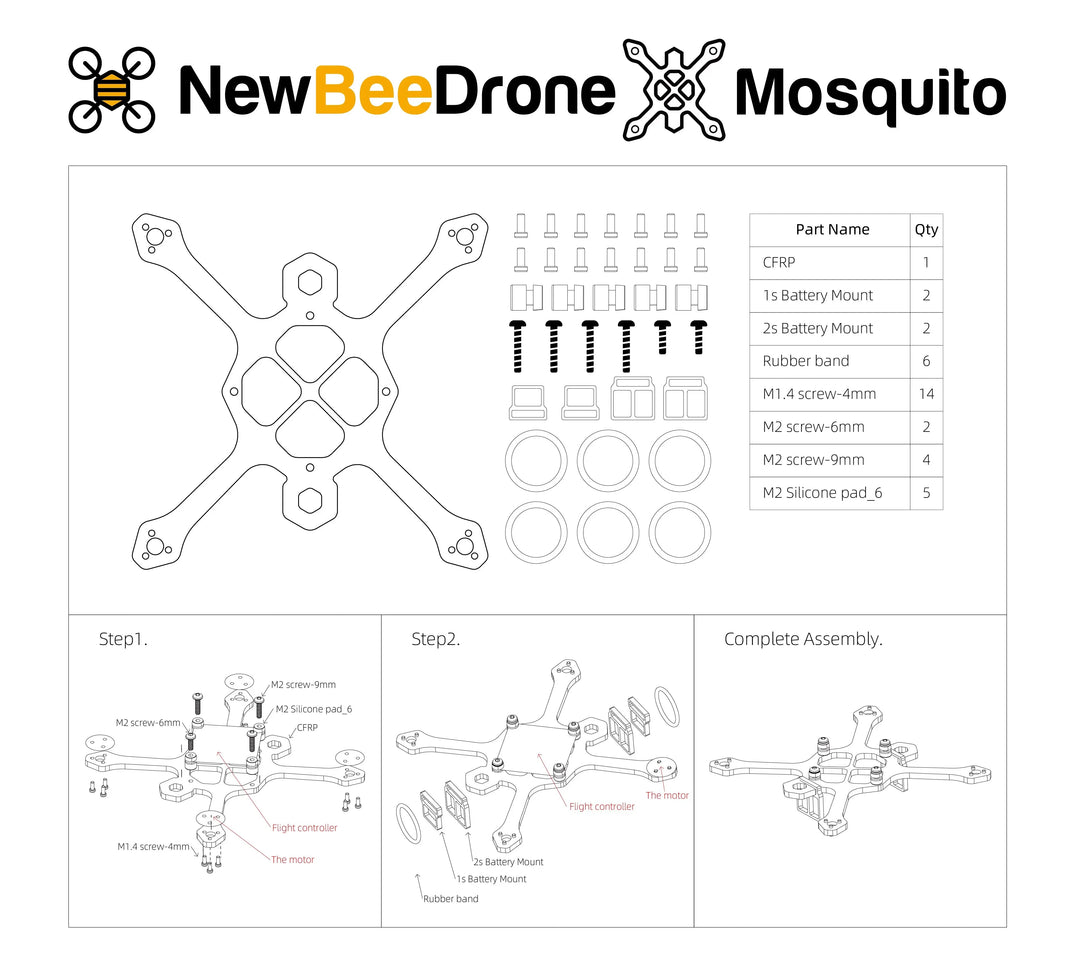

    Includes

    • 1x Mosquito Frame
    • 1x 1s Battery Mount
    • 1x 2s Battery Mount
    • 6x Rubber Bands
    • 14x M1.4 4mm Screws
    • 2x M2 6mm Screws
    • 4x M2 9mm Screws
    • 5x M2 Flight Controller Grommets
    • 1x Motor Wire Extensions

    Recommended Build

    (AcroBee65 BLV3 Drop-In) 1102Motor 1S

    (AcroBee65 BLV3 Drop-In) 1102Motor 2S



    Alternative FPV Gear

    Compatible with the Following

    Standard Brushless Whoop FC:

    Motors:

    65mm Propellers:

    300 Gold Battery:

     Canopy:
