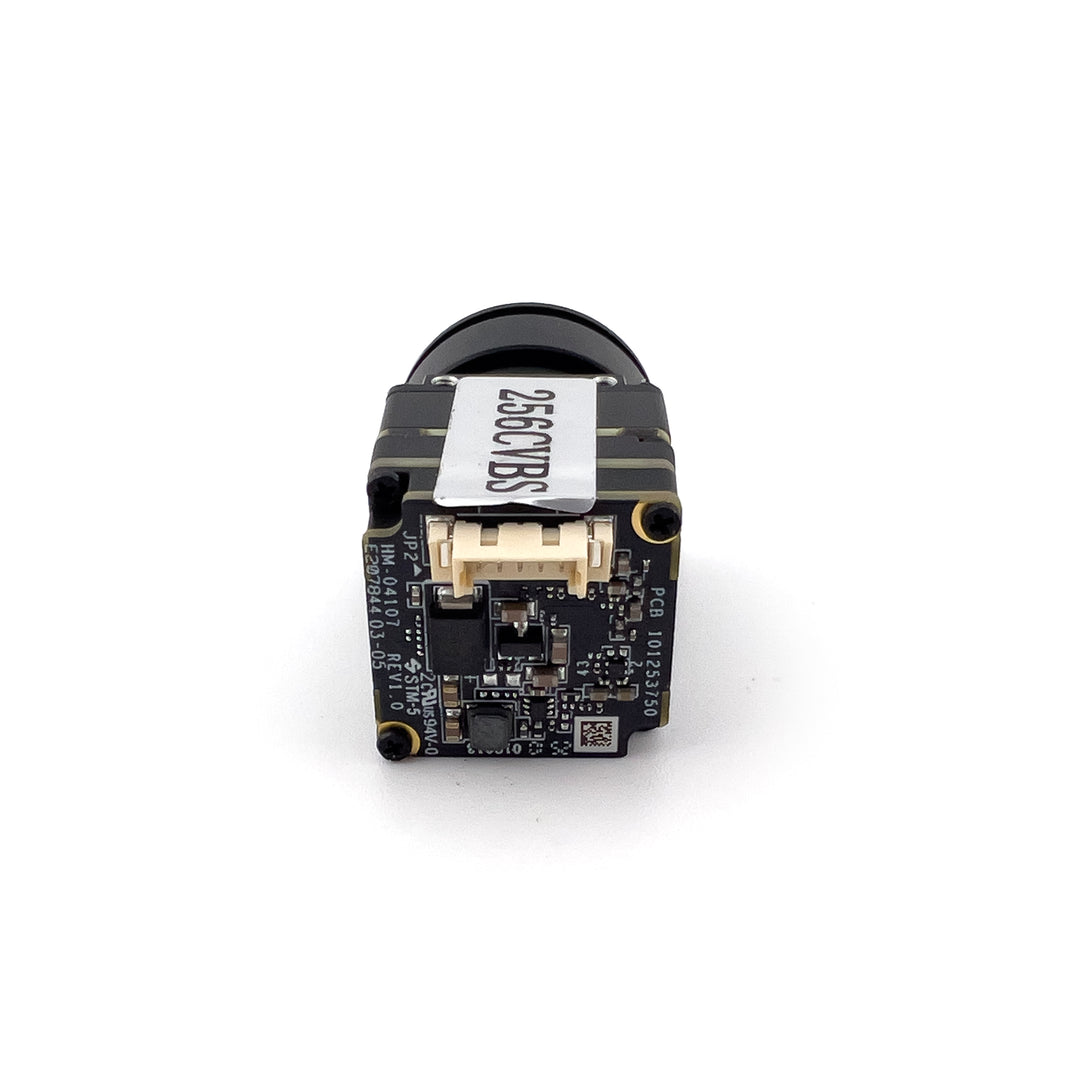

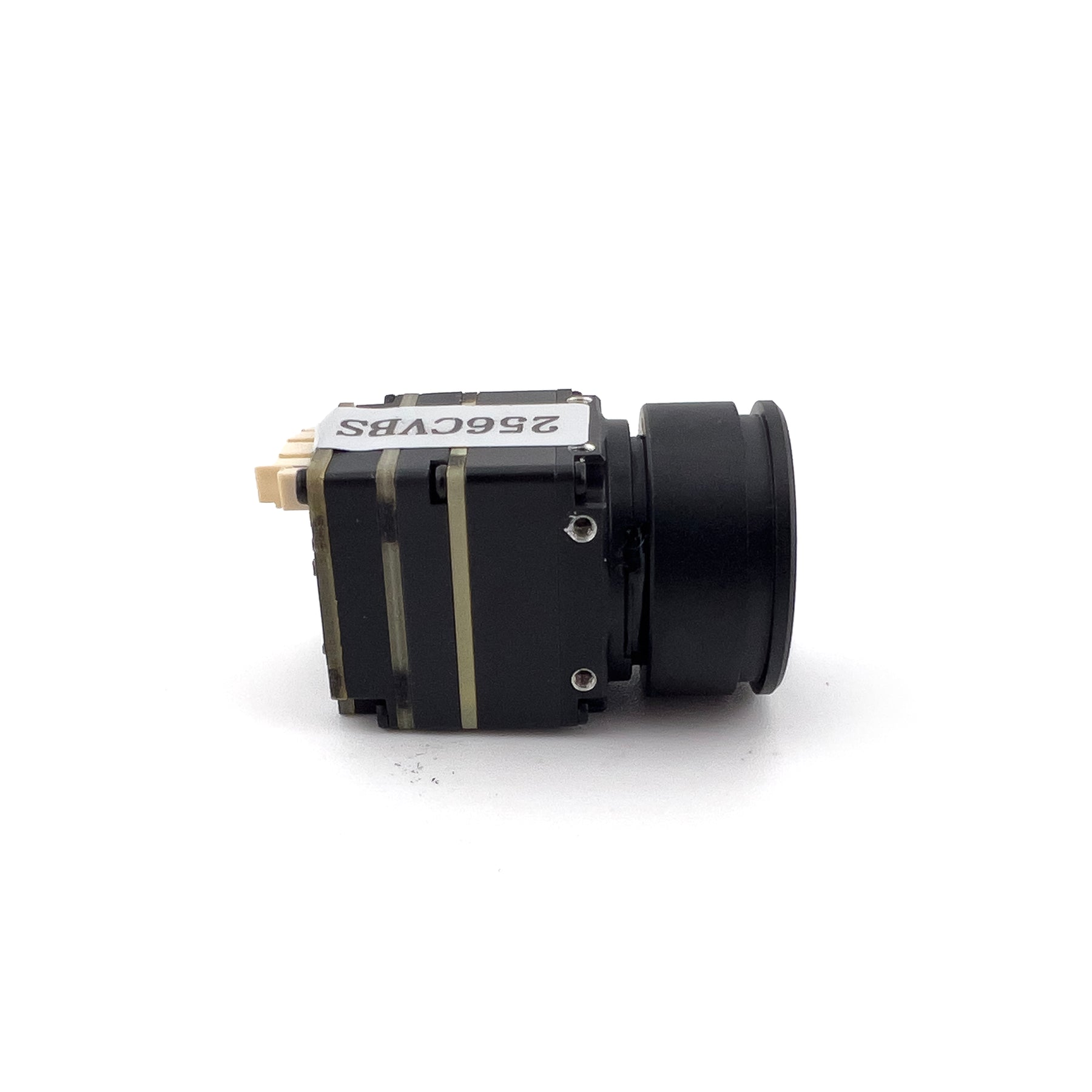

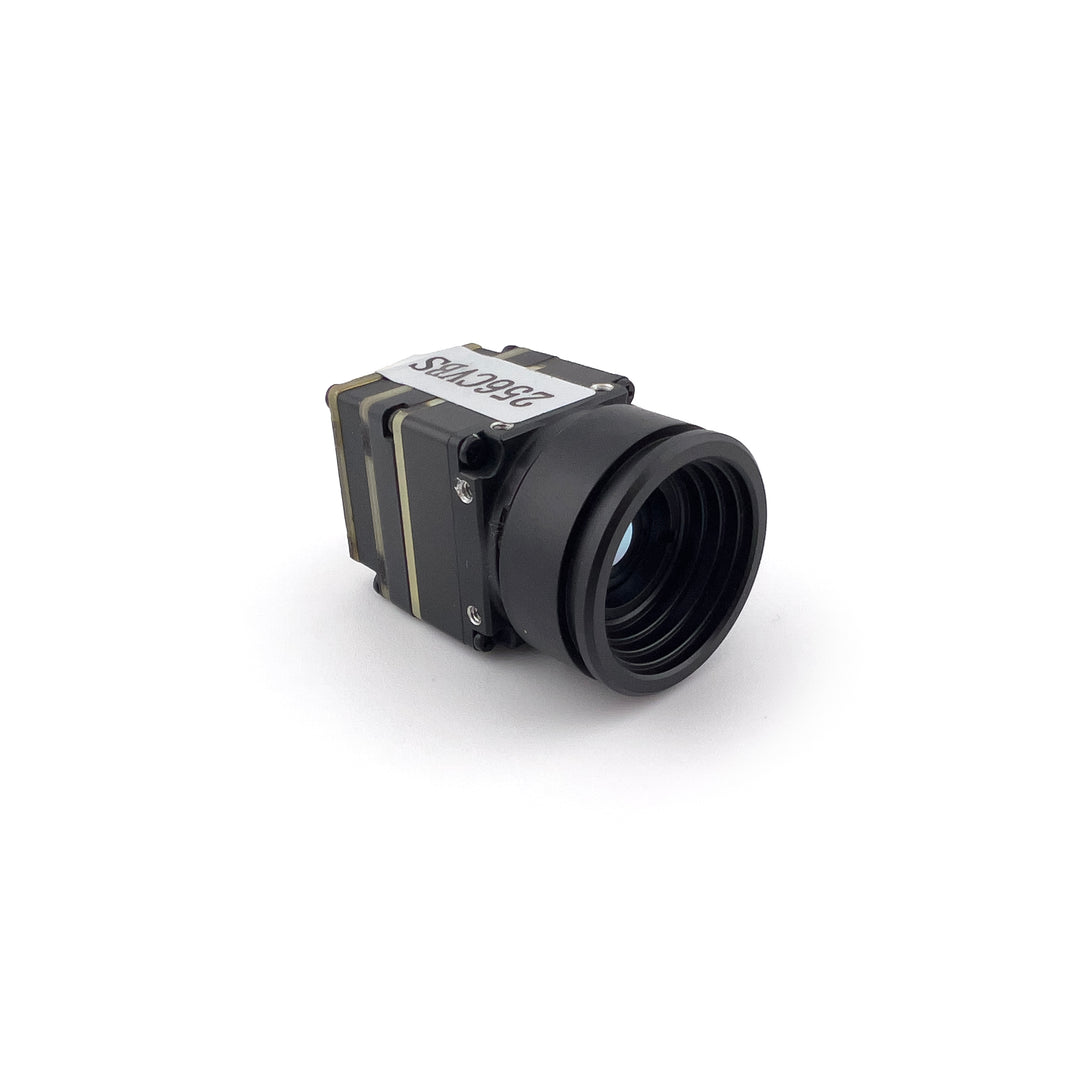

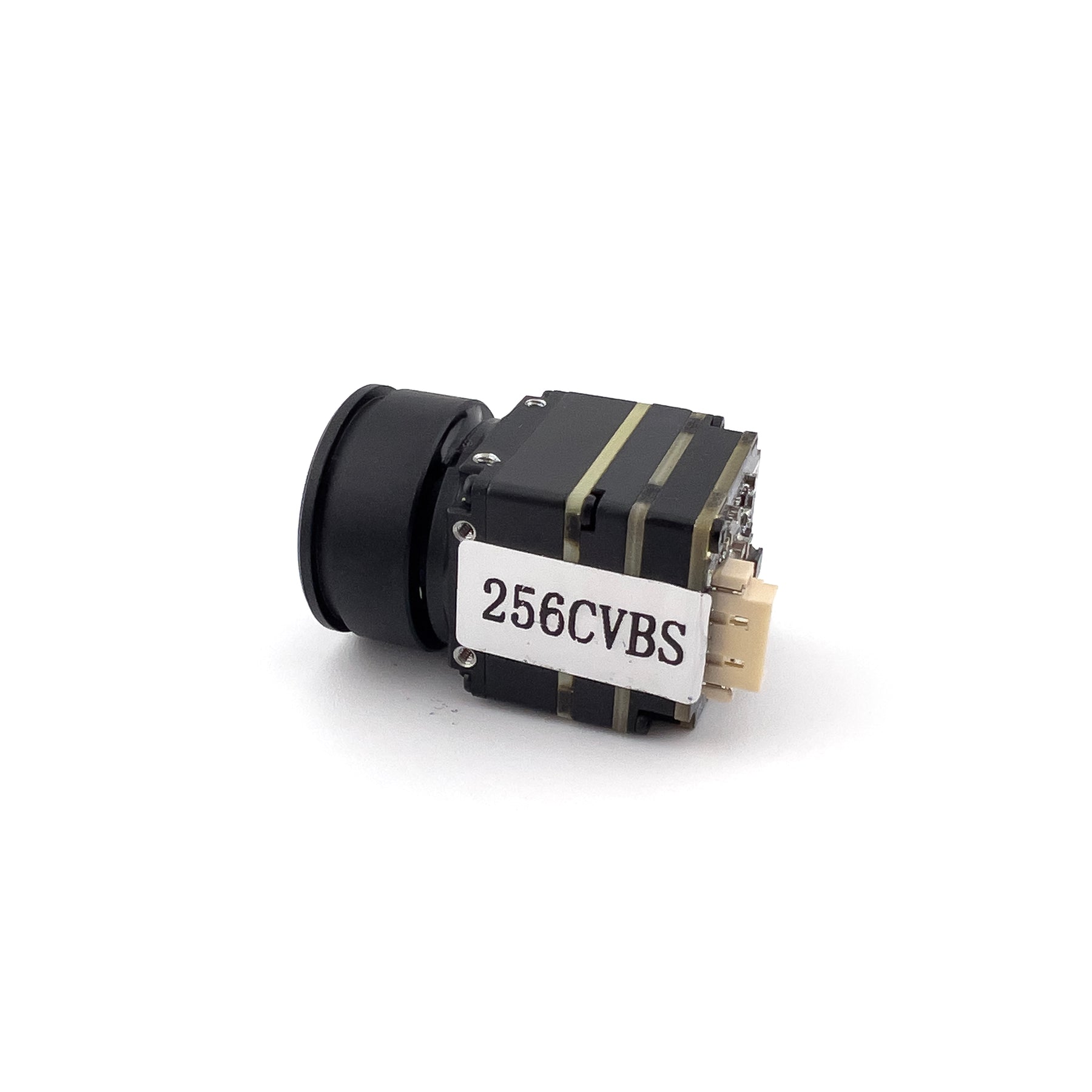

Thermal Analog FPV Camera 256x192 w/ 9.7mm Lens with CVBS Longwave IR 12um

NOTE: Package includes camera only. Wiring/accessories may not be included.

The Thermal Analog FPV Camera 256×192 delivers reliable longwave infrared imaging for night flight and thermal detection. Featuring a 9.7mm F/1.0 lens and 12 µm pixel pitch, this compact module provides a crisp thermal view through standard analog FPV systems using a CVBS interface.

Specifications

• Resolution: 256 × 192
• Frame Rate: 25 fps
• Detector Type: Vanadium oxide uncooled infrared focal plane array
• Pixel Pitch: 12 µm
• NETD: ≤ 40 mK (high sensitivity)
• Spectral Band: 8 – 14 µm (longwave IR)

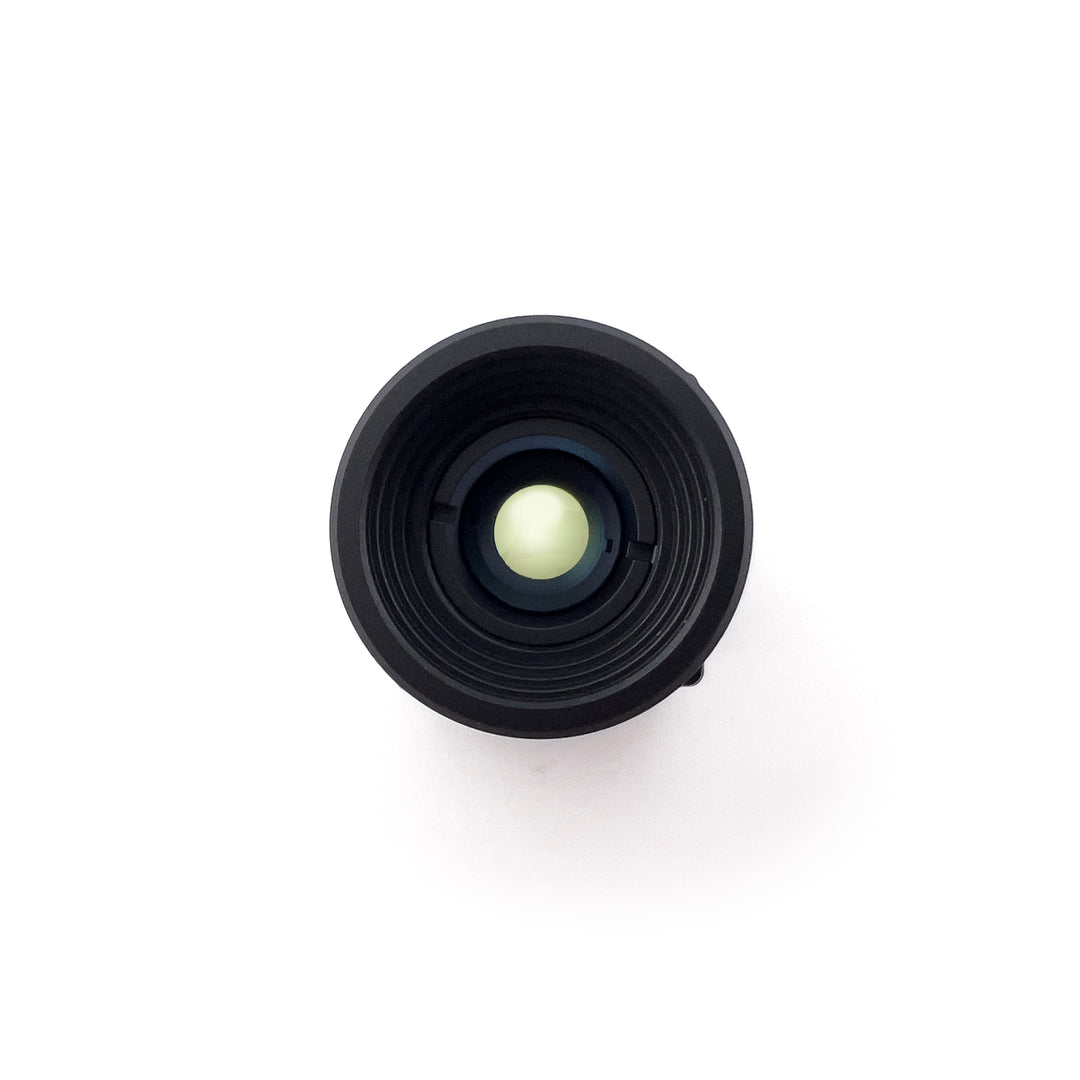

• Lens: 9.7 mm F/1.0
• Field of View (FOV): 19° (H) × 14° (V)
• Polarity/Palette: White Hot, Black Hot, Fusion, Iron Red
• Video Output: CVBS (PAL format)
• Power Input: 5 – 16 V
• Power Consumption: ≤ 0.8 W
• Operating Temperature: –40 °C to +80 °C
• Storage Temperature: –45 °C to +85 °C
• Module Size: 20 mm × 20 mm (without lens)
• Weight: ≤ 23 g (without lens)

Includes

• 1 × Thermal Analog FPV Camera Module (9.7 mm Lens)
  (Camera Only)
