BETAFPV Whoop/Toothpick F4 1S-2S 12A AIO Brushless Flight Controller V3 w/ Serial ELRS 2.4GHz - Choose MCU Type

WREKD ID: 120335
COMING SOON

Regular price $71.34
/
Ask us a question
MCU Type
NOTE: This item is on backorder, which means it will be delivered as soon as we receive our next shipment from our supplier. This typically ranges from 1 to 3 weeks.

Earn 228 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

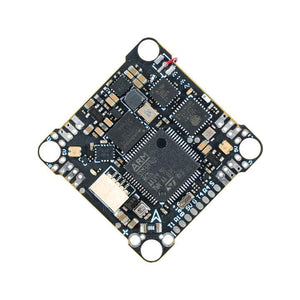

F4 1S 12A AIO Brushless FC V3, the FIRST flight controller designed specifically for HD VTX. This powerful controller features an STM32F405/AT32F435 chip for high-performance calculations and a 5V 3A BEC solution for the HD VTX. It weighs only 4.2 grams and includes a Serial ELRS 2.4G receiver, 16MB Black Box, Barometer, and Current meter. Designed for HD VTX, it removes the OSD chip AT7456E and also added support for external GPS through Betaflight 4.4.0.

Check out all our Whoop Style AIO Flight Controllers and the rest of our BetaFPV Products



FC 1S 12A AIO FC V3

Bullet Point

  • F4 1S 12A AIO Brushless FC V3 is specially designed for HD VTX, the MCU with stronger performance and computing power, and the new BEC solution with 5V 3A output supports HD VTX power supply.
  • Integrate Serial ELRS 2.4G receiver, 16M black box, barometer, current meter, reserve 2 complete serial ports, and 1 standard SBUS. It is compatible with various devices such as GPS, HD VTX, and external receivers, which reduces the overall weight and complexity of the build.
  • With a lighter weight of 4.2g, it improves flight performance and agility.
  • There are 2 main control MCUs available: the STM32F405 and the AT32F435. The AT32F435 has a stronger performance, with a COREMARK score that is even comparable to that of the STM32F722.

Specification of FC

  • Weight: 4.2g (without power cable and motor connector)
  • Six-Axis: ICM42688P (SPI connection)
  • MCU: STM32F405RGT6 (168MHz) / AT32F435RGT7 (288MHz)
  • Firmware version: Betaflight_4.4.1_BETAFPVF405 (STM32F405) / ATBetaflight_4.3.2_BETAFPVF435_RC3 (AT32F435)
  • Receiver: Serial ELRS 2.4G Receiver
  • Receiver firmware version: BETAFPV AIO 2400 RX ELRS V2.5.2
  • Antenna: Enameled wire
  • Blackbox Memory: 16MB
  • Sensor: Barometer (BMP280), Voltage&Current
  • Mounting Hole Size: 26mm x 26mm (suitable for whoop pattern mounting hole)
  • BEC*: 5V 2A@4V supply, 5V 3A@8V supply
  • USB Port: SH1.0 4-Pin
  • Built-in ESC with 12A continuous and peak 25A current
  • ESC input voltage: 1-2S
  • ESC firmware: C_X_70_48_V0.19.2.hex for BB51 Bluejay hardware
  • Signal support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

*The output current of BEC will decrease as the temperature increases

Diagram for F4 1S 12A AIO FC V3

正面指示图-STM32F405

正面指示图-AT32F435

F4 1S 12A AIO Brushless Flight Controller 2023

Comparison

The F4 1S 12A V3 FC is specifically designed for HD VTX and features an upgraded STM32F405/AT32F435 chip for high-performance calculations. It also includes a Serial ELRS 2.4G receiver for increased range and reliability, as well as a 16MB Black Box for easy flight data recording and analysis. These upgrades aim to enhance the overall flying experience for pilots.

F4 1S 12A AIO

Brushless FC V3

F4 1S 12A AIO

Brushless FC 2022

Weight 4.23g 3.85g
MCU

STM32F405RGT6

AT32F435RGT7

STM32F411CEU6
Six-Axis
ICM42688P BMI270
Blackbox 16MB /
OSD
/
Built-in BetaFlight OSD
Receiver Serial ELRS 2.4G Receiver SPI ELRS 2.4G Receiver/SPI Frsky
Supported VTX HD VTX Only Analog VTX/HD VTX
BEC 5V, 2A@4V Supply 5V, 1.5A@4V Supply

About ATBetaflight

ATBetaflight is a fork ported to Artery Tek AT32F435/7 based on betaflight 4.3. The biggest difference from the Betaflight firmware is that the sensitivity of the BMI270 gyroscope is optimized, and the measured sensitivity error is reduced from about 2% to less than 0.04%, which is consistent with the specification table in the datasheet. Phenomena such as "horizon drift" and "wrong direction of GPS rescue" basically no longer appear in the actual flight.


The current release of ATBetaflight 4.3.2 RC3 already supports all hardware functions but does not support the new functions or optimization problems of subsequent versions of Betaflight 4.3.1. For more information, please refer to: https://github.com/flightng/atbetaflight

Betaflight Firmware and CLI

For STM32F405 Version

Pay attention, DO NOT flash the other firmware for AT32F435 version. Betaflight official firmware for the AT32F435 is still in the development process, only the currently released ATBetaflight 4.3.2 RC3 has bidirectional Dshot, PRM, and RGB functions.

If you need to use the Betaflight configurator, please use Betaflight_10.10.0 and follow the steps below to open the "Show all serial devices" in the "Options" first to recognize the port.

betaflight_10.10.0

ESC Firmware

With BB51 ESC solution, F4 1S 12A FC V3 is based on BLHeliSuite16714903 with Bluejay ESC firmware, it supports bidirectional D-shot and RPM filtering in Betaflight, offers 24KHz, 48KHz, and 96KHz fixed PWM frequency for options, and custom start-up melodies. F4 1S 12A FC V3 default factory setting is 48KHz and it doesn’t recommend upgrading the 96KHz, or it might cause an error in the motor idle setting, not spinning when disarmed.

DO NOT flash the firmware with a shorter interval, otherwise, there will be a certain chance of stalling and burning the flight controller.

Serial ELRS 2.4G RX

Serial ELRS 2.4G RX uses the Crossfire serial protocol (CRSF protocol) to communicate between the receiver and the flight controller board. So the Serial ELRS 2.4G RX is available to support upgrading to ELRS V3 with no need to flash Betaflight flight controller firmware.

  • Enter binding status by power on/off three times.
  • Plugin and unplug the flight controller three times;
  • Make sure the RX LED is doing a quick double blink, which indicates the receiver is in bind mode;
  • Make sure the RF TX module or radio transmitter enters binding status, which sends out a binding pulse;
  • If the receiver has a solid light, it's bound.

The Serial ELRS 2.4G RX can be updated via Wi-Fi or Betaflight serial passthrough. Here is the way to update the Serial ELRS 2.4G RX firmware through passthrough.

  • Turn off telemetry in the Betaflight configurator.

  • Power cycle, while holding the Boot button to put the ELRS receiver into the bootloader.
  • Open the Betaflight configurator, exit DFU mode, and make sure the Betaflight is disconnected from the flight controller.
  • Choose target "BETAFPV AIO 2400 RX". Flash using the Passthrough option in ExpressLRS Configurator.

How to flash firmware via Wi-Fi here.

Connecting External RX/HD Digital

Both STM32F405 and AT32F435 version support external HD digital VTX. Please note that the board reserves two serial ports and a standard SBUS port, which is available for the external CRSF protocol receiver or GPS module, and SBUS protocol receiver. You can refer to the below picture.

F4 1S 12A AIO Brushless Flight Controller 2023

Package Includes:

  • 1 * F4 1S 12A AIO FC V3
  • 4 * M2*10 machine screw
  • 4 * M2*10 nylon screw
  • 4 * M2 nuts
  • 4 * shock absorbing ball
  • 4 * JST1.25mm angle socket
  • 4 * JST1.25mm straight socket
  • 1 * SH1.0 4Pin adapter cable
  • 1 * Type-C to SH1.0 adapter
  • 1 * XT30 power cord
  • 1 * filter capacitor
F4 1S 12A AIO Brushless Flight Controller 2023
