FlyFishRC M8QMC-5883L GPS and Compass Module for FPV Freestyle and Long Range

/
  • In Stock
Ask us a question
NOTE: This item is on pre-order, which means it will ship very soon. This typically ranges from 3 to 7 days.

FlyFishRC M8QMC-5883L GPS and Compass Module for FPV Freestyle and Long Range

$45.04
  • Ships from: WREKD Warehouse, Ohio, United States
    Learn about our Shipping and Return Policy

Earn 45 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

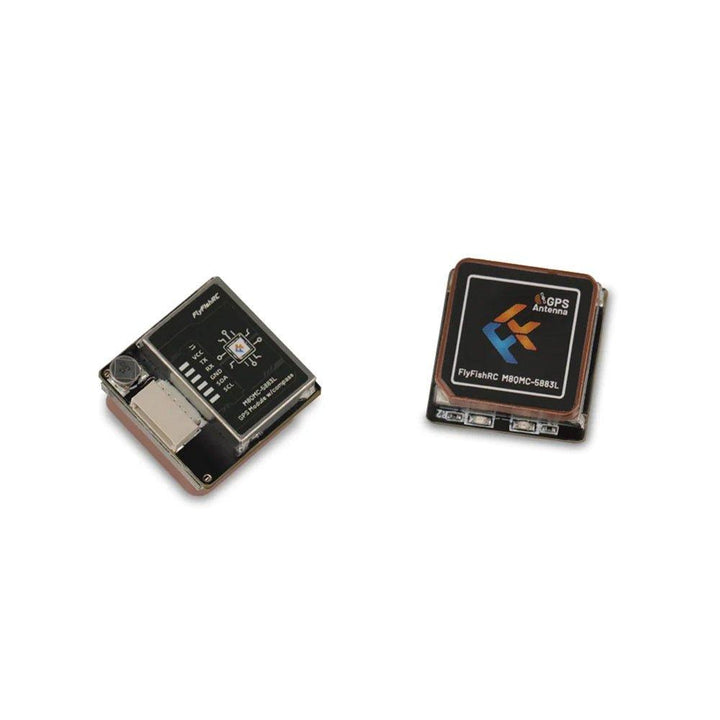

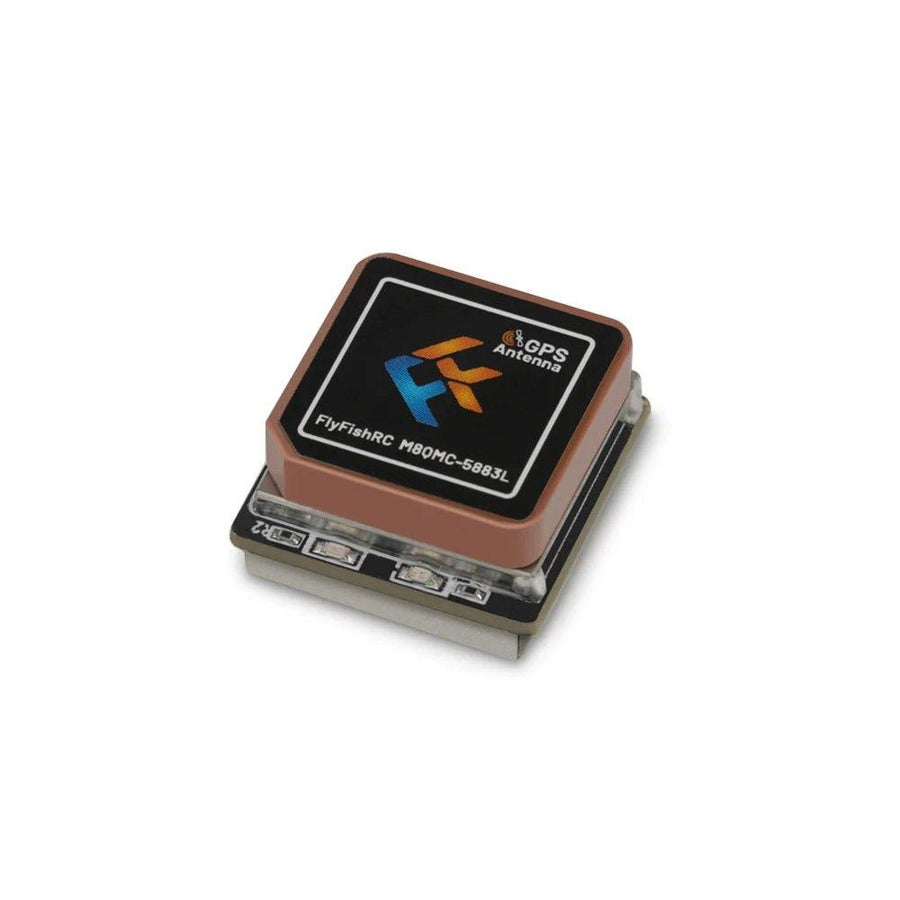

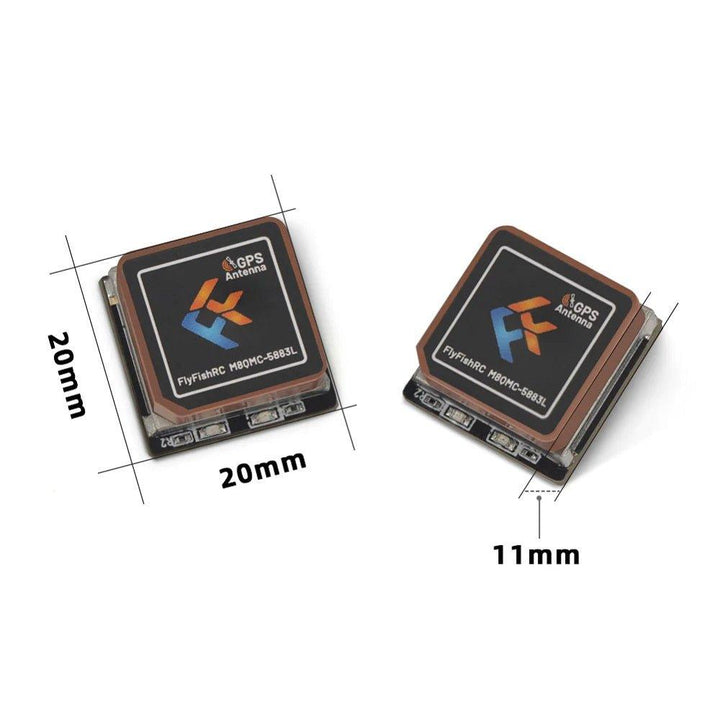

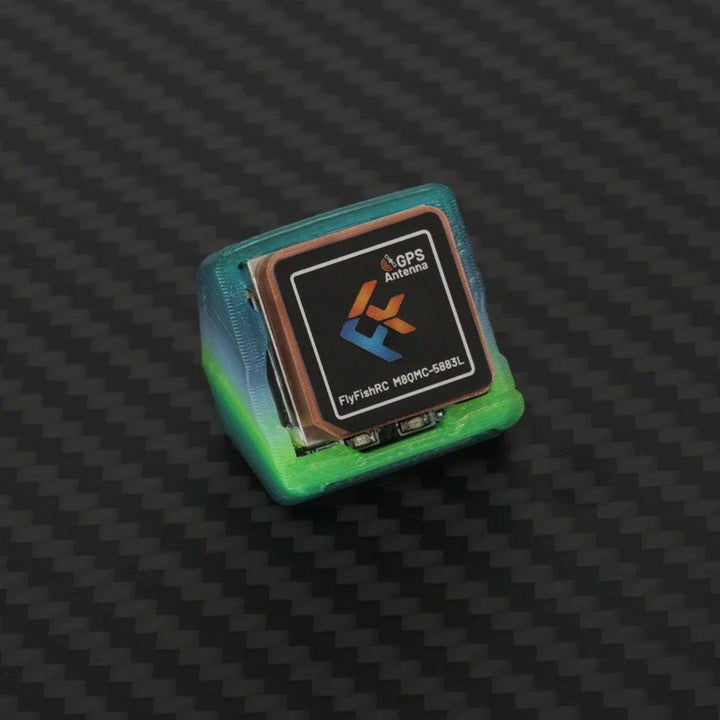

The FlyfishRC-M8QMC is a miniature, highly responsive, and user-friendly GPS. It features an 18*18mm RHCP ceramic patch antenna for superior reception and exceptional stability, as well as a QMC5883L high-precision magnetometer for pinpoint azimuth accuracy. Additionally, it is equipped with a u-blox10 generation chip to ensure smooth altitude shifts. This GPS is an ideal choice for FPV drones, multi-rotors, fixed wing aircraft, and other model products.

Check out our all our Flight Controller Accessories and the rest of our Flyfish products!

Features:

  • 72 channel 10 Hz Refresh rate
  • Built-in TCXO crystal and farad capacitor for faster hot start
  • High sensitivity 18x18mm GPS patch antenna
  • SH1.0-6Pin terminal design, no soldering required.
  • QMC5883L Magnetometer chip, Precise pointing

Specifications

  • GPS module: FlyFishRC M8QMC-5883L GPS Module
  • Frequencies: 72 channel
  • Refresh Rate: 10 Hz
  • Compass module: QMC5883L
  • Baud Rate：4800bps-115200bps (Default - 9600bps)
  • Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm
  • Accuracy:  Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
  • Cold start: <24s
  • Hot start: <2s
  • Maximum height: 50000m
  • Maximum speed: 500 m/s
  • Speed accuracy: 0.05 m/s
  • Maximum acceleration: ≦ 4G
  • Input Voltage: 3.3V-5V，current 25mA
  • Output Connector: SH1.0-6P
  • Weight: 8.8g
  • GPS pin definition: RX/TX UART
  • Compass pin definition: SDA/SLA

Including

  • 1 x FlyFishRC M8QMC-5883L GPS and Compass Module
  • 1 x SH1.0-6Pin Cable
  • 1 x SH1.0 Connector
  • 1 x GPS Manual
