HAPPYMODEL X12 AIO 5-IN-1 BOARD - F4 FC + 12A ESC - ELRS 2.4GHz

$113.32
  • Ships from: WREKD Warehouse, Ohio, United States
    Learn about our Shipping and Return Policy

Earn 113 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

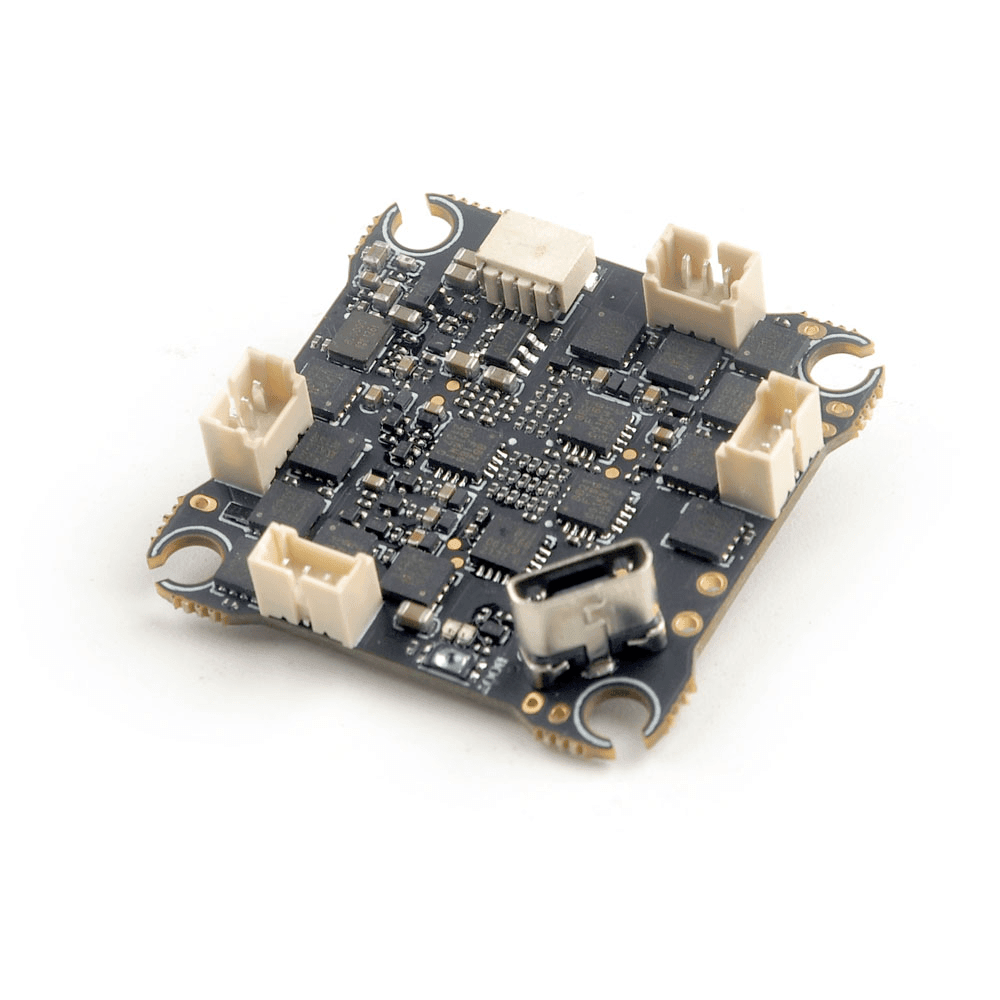

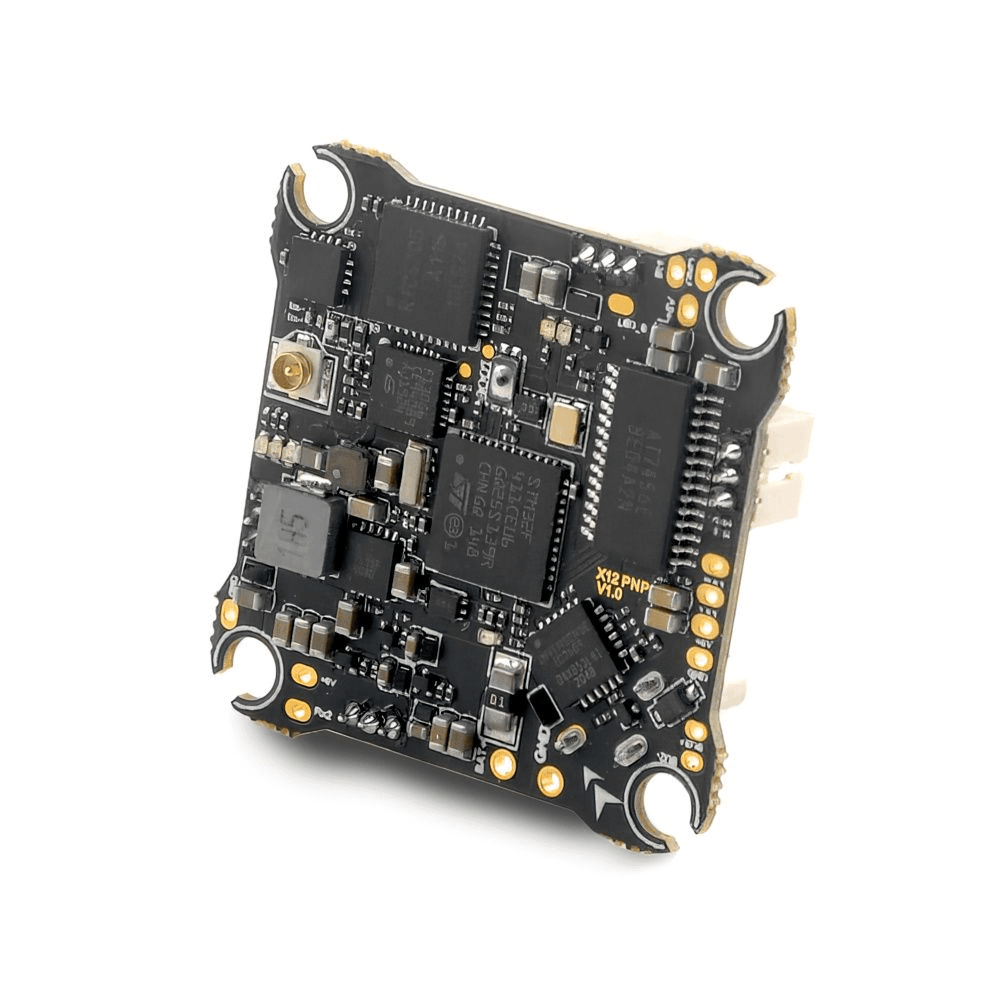

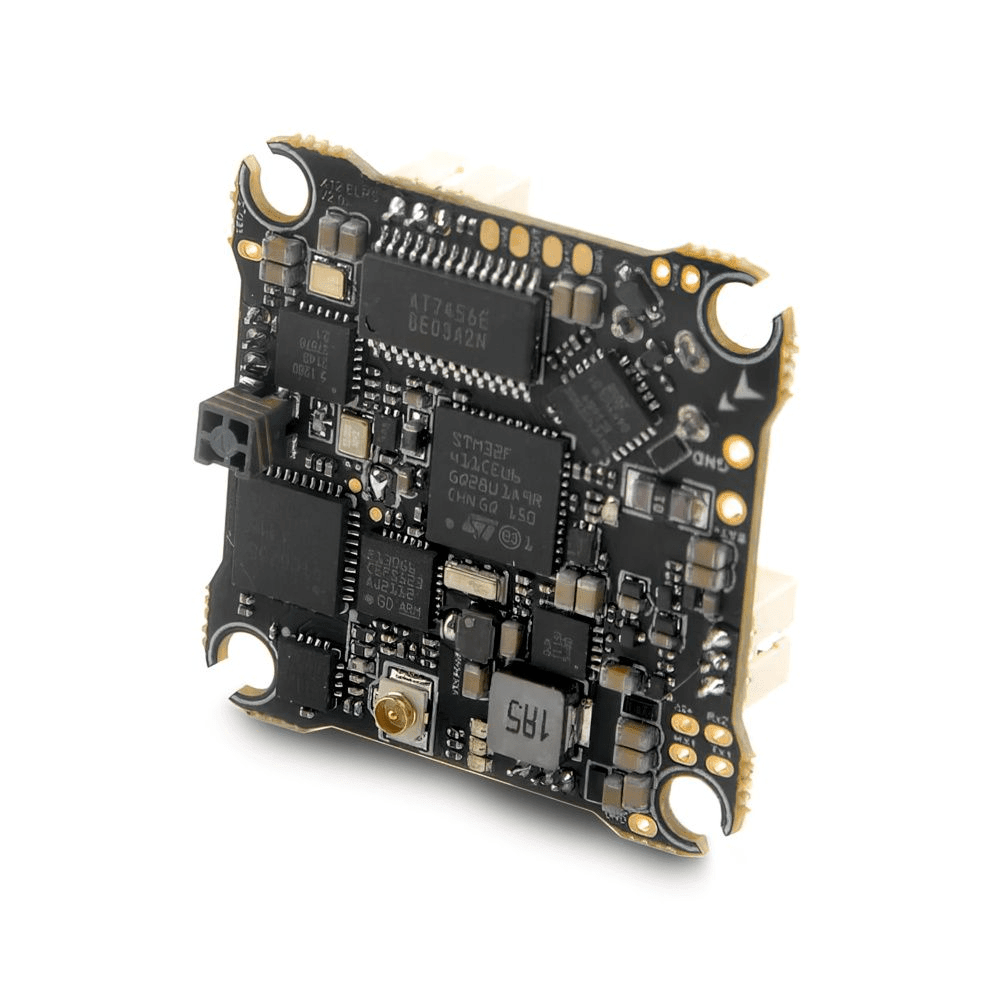

The HappyModel X12 2S AIO Whoop Flight Controller (F4 FC / 12A 4in1 ESC / 25-400mW VTX) AIO board featuring an F4 Flight Controller, onboard 12A 4-in-1 ESC, 5.8GHz OpenVTX and built-in receiver of your choice! Happymodel continues to impress with yet another fantastic AIO for whoop applications!

Browse the rest of our Whoop AIO boards and all our Happymodel products!

Specifications

  • Input Voltage: 1-2S
  • MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
  • Gyro: MPU6000 or ICM20689 or BMI270
  • Max Continuous Current: 12A
  • VTX Output Power: 25-400mW
  • Antenna Connector: U.FL
  • OSD: Yes
  • Betaflight Target: ELRS Version: CRAZYBEEF4SX1280, PNP Version: CRAZYBEEF4DX
  • ESC Firmware: Z_H_30_REV16_7
  • Mounting Pattern: 25x25mm
  • Weight: 5.1g

ELRS Version

  • Packet Rate: 50Hz/150Hz/250Hz/500Hz
  • ELRS Firmware Version: V2.0
  • RF Frequency: 2.4GHz
  • Antenna: SMD antenna
  • Telemetry output Power: <12dBm

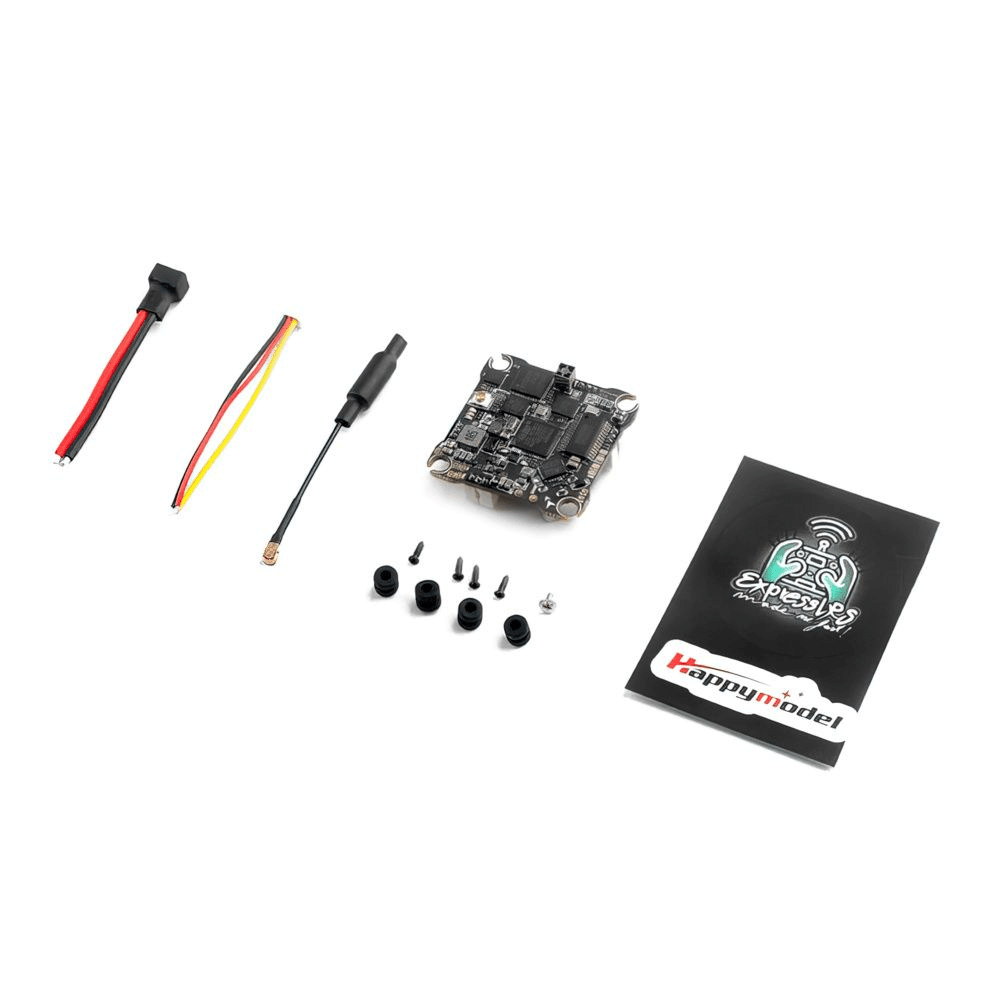

Includes

  • 1x HappyModel X12 2S AIO Whoop Flight Controller (F4 FC / 12A 4in1 ESC / 25-400mW VTX)
  • 1x Connecting Wires Set
  • 1x Hardware Set
  • 1x Antenna
